INA HK3520

B007D36F06

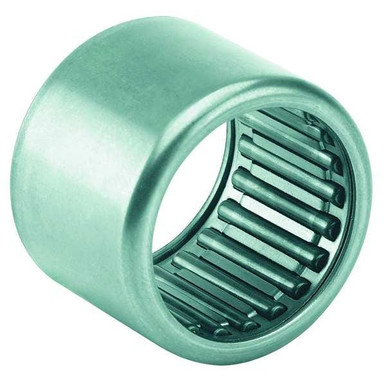

INA HK3520 Needle Roller Bearing, Caged Drawn Cup, Outer Ring and Roller, Steel Cage, Open End, Metric, 35mm ID, 42mm OD, 20mm Width, 9100rpm Maximum Rotational Speed, 10300lbf Static Load Capacity, 5400lbf Dynamic Load Capacity

INA HK3520 Needle Roller Bearing, Caged Drawn Cup, Outer Ring and Roller, Steel Cage, Open End, Metric, 35mm ID, 42mm OD, 20mm Width, 9100rpm Maximum Rotational Speed, 10300lbf Static Load Capacity, 5400lbf Dynamic Load Capacityzoom

Attributes

Key Value
Bearing Industry Number3520
Bore Dia. (mm)35 mm
Bore Diameter35 mm
BrandIna
Cage MaterialSteel
Cage Material GradeSheet Steel
Compatible Ring Grainge.4ZZY9
Compatible Ring Manufac.IR30X35X20-XL, LR30X35X.
Current Stock3
Dynamic Load Capacity (.23,800 N
Full ComplementNo
International ShippingNo
ItemNeedle Roller Bearing
Lubrication OpeningsNot Applicale
Max. RPM7,900 RPM
Minimum Temperature-30 Degrees C
MpnHK3520
Number of RowsOne
Outside Dia. (mm)42 mm
Outside Diameter42 mm
Overall Width20 mm
Seal TypeNot Applicable
SKUZO-G2150434
StandardsDIN 618, ISO Certified .
Static Load Capacity (N)46,000 N
Static Radial Load Capa.46 kN
SubCategoryPower Transmission
Temp. Range (F)-5 Degrees to +212 Deg.
TypeDrawn Cup
Width (mm)20 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger4ZZX610.7190INA10.7 @ 1
thumbzoomZoroG215043412.0916Ina0.1212.09 @ 1
thumbzoomPurvisHK352014.821In StockINA14.82 @ 1
thumbzoomsustainablesupply.comC169040416.291In StockIna0.1116.29 @ 1
thumbzoomsimsupply.comZO-G215043419.8913Ina19.89 @ 1
