Infineon IRF6714MTRPBF

mpnIRF6714MTRPBF
brandname: Infineon
manufacturername: Infineon

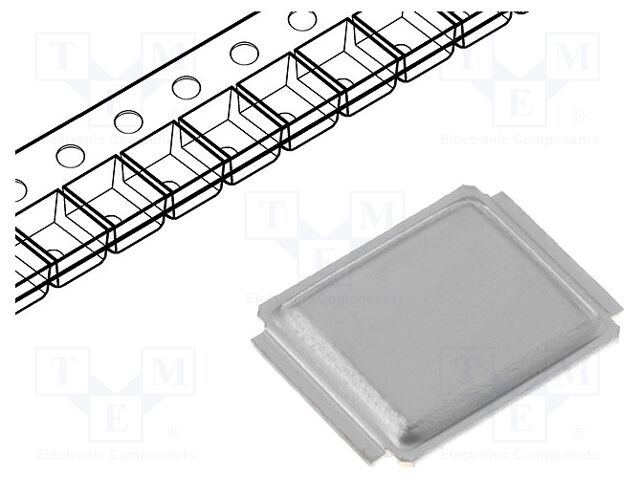

INFINEON IRF6714MTRPBF Single N-Channel 25 V 2.1 mOhm 44 nC HEXFET Power Mosfet - DirectFET - 10 item(s)

INFINEON IRF6714MTRPBF Single N-Channel 25 V 2.1 mOhm 44 nC HEXFET Power Mosfet - DirectFET - 10 item(s)

zoom

Brand: Infineon
PartNumber: IRF6714MTRPBF
Model: IRF6714MTRPBF
PackageQuantity: 1
Manufacturer: INFINEON
Label: INFINEON

Attributes

Key	Value
Base Product Number	IRF6714
Case	DirectFET
Category	Discrete Semiconductor .
Channel Type	N
Configuration	Dual Drain, Dual Source
Current - Continuous Dr.	29A (Ta), 166A (Tc)
Dimensions	6.35 x 5.05 x 0.506 mm
Drain Current	166 A
Drain current	166A
Drain to Source On Resi.	3.4 m?
Drain to Source Voltage	25 V
Drain to Source Voltage.	25 V
Drain-source voltage	25V
Drive Voltage (Max Rds .	4.5V, 10V
FET Feature	-
FET Type	N-Channel
Forward Transconductance	122 S
Forward Voltage, Diode	1 V
Gate Charge (Qg) (Max) .	44 nC @ 4.5 V
Gate to Source Voltage	?20 V
Height	0.02" (0.506mm)
Input Capacitance	3890 pF @ 13 V
Input Capacitance (Ciss.	3890 pF @ 13 V
Kind of channel	enhanced
Kind of package	reel
Length	0.250"
Manufacturer	INFINEON TECHNOLOGIES
Maximum Operating Tempe.	+150 ?C
Mfr	INFINEON TECHNOLOGIES
Minimum Operating Tempe.	-40 ?C
Mounting	SMD
Mounting Type	Surface Mount
Number of Elements per .	1
Number of Pins	5
Operating Temperature	-40?C ~ 150?C (TJ)
Package	Tape & Reel (TR)
Package / Case	DirectFET? Isometric MX
Package Type	DirectFET MX
Part Status	Active
Polarisation	unipolar
Power dissipation	89W
Power Dissipation	89 W
Power Dissipation (Max)	2.8W (Ta), 89W (Tc)
Rds On (Max) @ Id, Vgs	2.1mOhm @ 29A, 10V
Series	HEXFET?, HEXFET Series
Supplier Device Package	DIRECTFET? MX
Technology	HEXFET?, MOSFET (Metal .
Temperature Operating R.	-40 to +150 ?C
Turn Off Delay Time	13 ns
Turn On Delay Time	18 ns
Type of transistor	N-MOSFET
Typical Gate Charge @ V.	29 nC @ 4.5 V
Vgs (Max)	?20V
Vgs(th) (Max) @ Id	2.4V @ 100?A
Width	0.199" (5.05mm)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Future Electronics	5002773	0.846	4800	100		Infineon		0.846 @ 4800
	us.rs-online.com	70019600	1.236	4800	100		Infineon		1.236 @ 4800
	TME	IRF6714MTRPBF	1.3259	4800	100		INFINEON TECHNOLOGIES		1.3259 @ 4800
	Digi-Key	1928527	1.3916	4800	100		Infineon Technologies		1.3916 @ 4800
