Infineon BSD235CH6327XTSA1

B019DXU14O

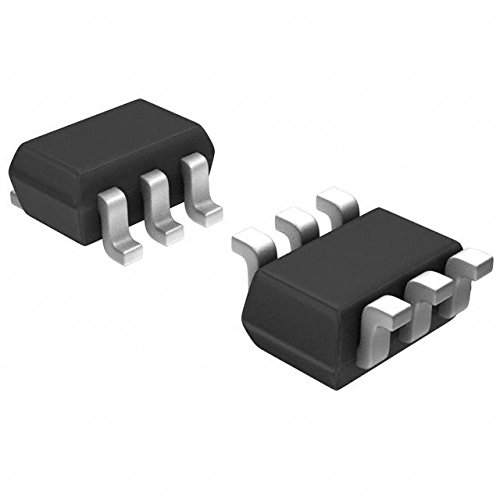

Infineon Mosfet, Complementary, 20V, Sot-363 - BSD235CH6327XTSA1

Infineon Mosfet, Complementary, 20V, Sot-363 - BSD235CH6327XTSA1zoom

Attributes

Key Value
Base Product NumberBSD235
CasePG-SOT-363
CategoryDiscrete Semiconductor .
Current - Continuous Dr.950mA, 530mA
Drain current0.95/-0.53A
Drain to Source Voltage.20V
Drain-source voltage20/-20V
FET FeatureLogic Level Gate
FET TypeN and P-Channel
Gate Charge (Qg) (Max) .0.34nC @ 4.5V
Gate-source voltage?12V
Input Capacitance (Ciss.47pF @ 10V
Kind of channelenhanced
ManufacturerInfineon Technologies
MfrInfineon Technologies
MountingSMD
Mounting TypeSurface Mount
On-state resistance0.415/1.221?
Operating Temperature-55?C ~ 150?C (TJ)
PackageTape & Reel (TR)
Package / Case6-VSSOP, SC-88, SOT-363
Part StatusActive
Polarisationunipolar
Power - Max500mW
Power dissipation0.5W
Product StatusActive
Rds On (Max) @ Id, Vgs350mOhm @ 950mA, 4.5V
SeriesOptiMOS?
Supplier Device PackagePG-SOT363-6-1
TechnologyOptiMOS? 2
Type of transistorN/P-MOSFET
Vgs(th) (Max) @ Id1.2V @ 1.6?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers145-96620.12121250Infineon0.1212 @ 250
thumbzoomNewark47Y80000.1865250INFINEON0.186 @ 250
thumbzoomTMEBSD235CH6327XTSA10.20065250INFINEON TECHNOLOGIES0.2006 @ 250
Digi-Key31968130.3352251250Infineon Technologies0.335225 @ 250
