Infineon IPW65R045C7FKSA1

B06XFQ4HTM

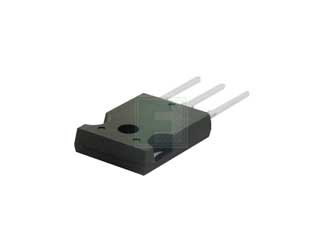

INFINEON IPW65R045C7FKSA1 N-Channel 650 V 45 mOhm CoolMOSTM C7 Power Transistor-PG-TO-247-3 - 30 item(s)

INFINEON IPW65R045C7FKSA1 N-Channel 650 V 45 mOhm CoolMOSTM C7 Power Transistor-PG-TO-247-3 - 30 item(s)zoom

Attributes

Key Value
Alternate Part No.726-IPW65R045C7
Base Product NumberIPW65R045
BrandInfineon Technologies
CategoryDiscrete Semiconductor .
Channel ModeEnhancement
ConfigurationSingle
Current - Continuous Dr.46A (Tc)
DescriptionMOSFET N-CH 650V 46A TO.
Detailed DescriptionN-Channel 650 V 46A (Tc.
Digi-Key Part NumberIPW65R045C7FKSA1-ND
Drain to Source Voltage.650 V
Drive Voltage (Max Rds .10V
Fall Time7 ns
FET Feature-
FET TypeN-Channel
Gate Charge (Qg) (Max) .93 nC @ 10 V
Id - Continuous Drain C.46 A
Input Capacitance (Ciss.4340 pF @ 400 V
ManufacturerInfineon Technologies, .
Manufacturer Part No.IPW65R045C7
Manufacturer Product Nu.IPW65R045C7FKSA1
Manufacturer Standard L.39 Weeks
Maximum Operating Tempe.+ 150 C
MfrInfineon Technologies
Minimum Operating Tempe.- 55 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Operating Temperature-55?C ~ 150?C (TJ)
PackageTube
Package / CaseTO-247-3
Package/CaseTO-247-3
PackagingTube
Part # AliasesIPW65R045C7FKSA1 SP0009.
Pd - Power Dissipation227 W
Power Dissipation (Max)227W (Tc)
Product CategoryMOSFET
Product StatusActive
Qg - Gate Charge93 nC
Rds On (Max) @ Id, Vgs45mOhm @ 24.9A, 10V
Rds On - Drain-Source R.45 mOhms
Rise Time14 ns
SeriesCoolMOS? C7, IPW65R045
Supplier Device PackagePG-TO247-3-1
TechnologyMOSFET (Metal Oxide)
TradenameCoolMOS
Transistor PolarityN-Channel
Typical Turn-Off Delay .82 ns
Vds - Drain-Source Brea.650 V
Vgs (Max)?20V
Vgs - Gate-Source Break.20 V
Vgs th - Gate-Source Th.3 V to 4 V
Vgs(th) (Max) @ Id4V @ 1.25mA

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RutronikTMOSP110359.112405Infineon9.11 @ 240
HotendaH181463413.3515Infineon Technologies13.35 @ 5
thumbzoomNewark54X523513.431293INFINEON13.43 @ 5
Mouser726-IPW65R045C714.3315Infineon14.33 @ 5
Win SourceIPW65R045C717.592387Infineon Technologies17.59 @ 5
thumbzoomTMEIPW65R045C7FKSA118.315INFINEON TECHNOLOGIES18.3 @ 5
RS Delivers897-7633P20.0161304Infineon20.016 @ 5
thumbzoomDigi-Key445380720.41215Infineon Technologies20.412 @ 5
thumbzoomswatee.comIPW65R045C727.3111516Infineon27.31 @ 5
