Infineon IRF7324TRPBF

B06XFBGCKP

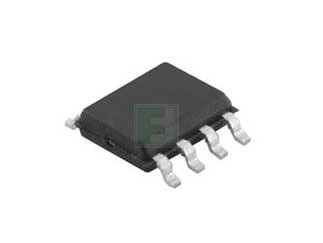

INFINEON IRF7324TRPBF Dual P-Channel 20 V 0.026 Ohm 63 nC HEXFET Power Mosfet - SOIC-8 - 4000 item(s)

INFINEON IRF7324TRPBF Dual P-Channel 20 V 0.026 Ohm 63 nC HEXFET Power Mosfet - SOIC-8 - 4000 item(s)zoom

Attributes

Key Value
Base Product NumberIRF7324
CategoryDiscrete Semiconductor .
Channel TypeN
ConfigurationDual Drain
Current - Continuous Dr.9A
Dimensions5.00 x 4.00 x 1.50 mm
Drain Current-9 A
Drain to Source On Resi.0.026 Ohms
Drain to Source Voltage-20 V
Drain to Source Voltage.20V
FET FeatureLogic Level Gate
FET Type2 P-Channel (Dual)
Forward Transconductance19 S
Forward Voltage, Diode-1.2 V
Gate Charge (Qg) (Max) .63nC @ 5V
Gate to Source Voltage?12 V
Height0.059" (1.5mm)
Input Capacitance2940 pF @ -15 V
Input Capacitance (Ciss.2940pF @ 15V
Junction to Ambient The.62.5 ?C/W
Length0.196 in
Maximum Operating Tempe.+150 ?C
MfrInfineon Technologies
Minimum Operating Tempe.-55 ?C
Mounting TypeSurface Mount
Number of Elements per .2
Number of Pins8
Operating Temperature-55 to 150 ?C, -55?C ~ .
PackageTape & Reel (TR)
Package / Case8-SOIC (0.154", 3.90mm .
Package TypeSO-8
Part StatusActive
PolarizationP-Channel
Power - Max2W
Power Dissipation2 W
Rds On (Max) @ Id, Vgs18mOhm @ 9A, 4.5V
SeriesHEXFET?, HEXFET Series
Supplier Device Package8-SO
Temperature Operating R.-55 to +150 ?C
Total Gate Charge42 nC
Turn Off Delay Time170 ns
Turn On Delay Time17 ns
Typical Gate Charge @ V.42 nC @ -5 V
Vgs(th) (Max) @ Id1V @ 250?A
Voltage, Breakdown, Dra.-20 V
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark42Y04100.80717979INFINEON0.807 @ 25
RS Delivers165-57080.8328125Infineon0.8328 @ 25
Mouser942-IRF7324TRPBF1.41244Infineon1.4 @ 25
us.rs-online.com700174641.411025Infineon1.41 @ 25
Digi-Key17747411.8377125369Infineon Technologies1.8377 @ 25
AmazonTPB07NHS3XD426.751252Infineon Technologies26.75 @ 25
