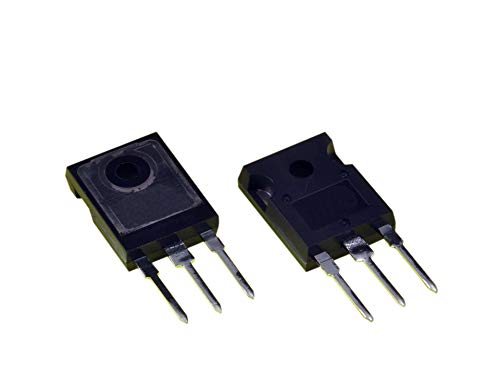

IRG4PH40UPBF - Transistor 3-Pins TO-247 4PH40 (10 Piece Lot)

IRG4PH40UPBF - Transistor 3-Pins TO-247 4PH40 (10 Piece Lot)zoom

Attributes

Key Value
Channel TypeN
Collector Current41 A
Collector to Emitter Sh.1200 V
Collector to Emitter Vo.1200 V
ConfigurationSingle
Continuous Collector Cu.41 A
Current - Collector (Ic.41 A
Current - Collector Pul.82 A
Dimensions15.87 x 5.31 x 20.70 mm
Energy Rating270 mJ
Gate Capacitance1800 pF
Gate Charge86 nC
Gate to Emitter Voltage+/-20 V
Height0.815" (20.7mm)
IGBT Type-
Input TypeStandard
Length0.625 in
Maximum Operating Tempe.+150 ?C
MfrInfineon Technologies
Minimum Operating Tempe.-55 ?C
Mounting TypeThrough Hole
Number of Pins3
Operating Temperature-55?C ~ 150?C (TJ)
Package / CaseTO-247-3
Package TypeTO-247AC
Part StatusObsolete
PolarityN-Channel
Power - Max160 W
Power Dissipation160 W
Product HeaderUltrafast Speed N-Chann.
Resistance, Thermal, Ju.0.77 ?C/W
Series-
Supplier Device PackageTO-247AC
Switching Energy1.04mJ (on), 3.4mJ (off)
Td (on/off) @ 25?C24ns/220ns
Temperature Operating R.-55 to +150 ?C
Test Condition960V, 21A, 10Ohm, 15V
Transistor TypeNPN
TypeUltrafast
Vce(on) (Max) @ Vge, Ic3.1V @ 15V, 21A
Voltage - Collector Emi.1200 V
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowIRG4PH40UPBF4.789129Infineon4.789 @ 6
RS Delivers178-14505.098816Infineon5.0988 @ 6
Future Electronics16811055.8321250Infineon5.832 @ 6
us.rs-online.com700170808.5416Infineon8.54 @ 6
