Infineon IRGP4062DPBF

B06XFV2JSW

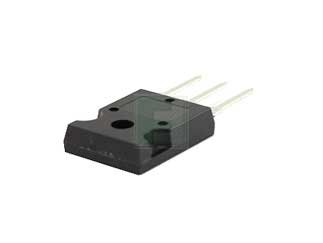

INFINEON IRGP4062DPBF Discretes igbts IRGP4062DPBF Series 600 V 24 A N-Channel UltraFast IGBT - TO-247AC - 5 Item(s)

INFINEON IRGP4062DPBF Discretes igbts IRGP4062DPBF Series 600 V 24 A N-Channel UltraFast IGBT - TO-247AC - 5 Item(s)zoom

Attributes

Key Value
CategoryDiscrete Semiconductor .
Channel TypeN
Collector to Emitter Vo.600 V
ConfigurationSingle
Continuous Collector Cu.48 A
Current - Collector (Ic.48 A
Current - Collector Pul.72 A
Dimensions15.87 x 5.31 x 20.70 mm
Gate Capacitance1490 pF
Gate Charge50 nC
Gate to Emitter Voltage?20 V
Height0.815" (20.7mm)
IGBT TypeTrench
Input TypeStandard
Length0.625 in
Maximum Operating Tempe.+175 ?C
MfrInfineon Technologies
Minimum Operating Tempe.-55 ?C
Mounting TypeThrough Hole
Number of Pins3
Operating Temperature-55?C ~ 175?C (TJ)
PackageBulk
Package / CaseTO-247-3
Package TypeTO-220AB
Part StatusActive
Power - Max250 W
Power Dissipation250 W
Reverse Recovery Time (.89 ns
Series-
Supplier Device PackageTO-247AC
Switching Energy115?J (on), 600?J (off)
Switching Speed30 kHz
Td (on/off) @ 25?C41ns/104ns
Temperature Operating R.-55 to +175 ?C
Test Condition400V, 24A, 10Ohm, 15V
Vce(on) (Max) @ Vge, Ic1.95V @ 15V, 24A
Voltage - Collector Emi.600 V
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Win SourceIRGP4062DPBF2.068252000Infineon Technologies2.068 @ 25
ArrowIRGP4062DPBF4.1781400Infineon4.178 @ 10
thumbzoomDigi-KeyIRGP4062DPBF-ND5.515110Infineon Technologies5.515 @ 10
Mouser942-IRGP4062DPBF6.351605Infineon6.35 @ 10
RS Delivers165-75816.5844110Infineon6.5844 @ 10
us.rs-online.com700184959.55110Infineon9.55 @ 10
