Infineon IRL2203NPBF

B06XFQ2B3B

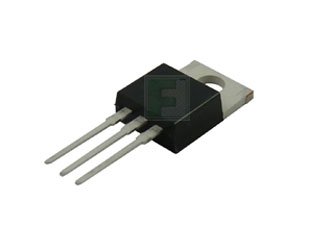

INFINEON IRL2203NPBF Single N-Channel 30 V 7 mOhm 60 nC HEXFET Power Mosfet - TO-220-3 - 25 item(s)

INFINEON IRL2203NPBF Single N-Channel 30 V 7 mOhm 60 nC HEXFET Power Mosfet - TO-220-3 - 25 item(s)zoom

Attributes

Key Value
BrandInfineon
Channel ModeChannel Mode
Channel TypeChannel Type, N
ConfigurationSingle
Dimensions10.54 x 4.69 x 15.24 mm
Drain Current116 A
Drain to Source On Resi.7 mOhms
Drain to Source Voltage30 V
Forward Transconductance73 S
Forward Voltage, Diode1.2 V
Gate to Source Voltage?16 V
Height0.6" (15.24mm), 8.77mm
Input Capacitance3290 pF @ 25 V
Length10.54mm, 0.414 in
Maximum Continuous Drai.116 A
Maximum Drain Source Re.Maximum Drain Source Re.
Maximum Drain Source Vo.Maximum Drain Source Vo.
Maximum Gate Source Vol.Maximum Gate Source Vol.
Maximum Gate Threshold .1V
Maximum Operating Tempe.+175 ?C
Maximum Power Dissipati.180 W
Minimum Gate Threshold .1V
Minimum Operating Tempe.-55 ?C
Mounting TypeThrough Hole
Number of Elements per .1
Number of Pins3
Package TypeTO-220AB
Pin CountPin Count
Power Dissipation180 W
SeriesHEXFET Series, HEXFET
StockStock
Temperature Operating R.-55 to +175 ?C
Transistor ConfigurationSingle
Transistor MaterialTransistor Material
Turn Off Delay Time23 ns
Turn On Delay Time11 ns
Typical Gate Charge @ V.Typical Gate Charge @ V.
Width0 in, 4.69mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics61767131.021250Infineon1.02 @ 25
Mouser942-IRL2203NPBF1.2512576Infineon1.25 @ 25
thumbzoomNewark63J77341.26125INFINEON1.26 @ 25
thumbzoomRS Delivers919-48011.44725025Infineon1.4472 @ 50
us.rs-online.com700185231.9125Infineon1.9 @ 25
