INGERSOLL CUTTING TOOLS 6210775

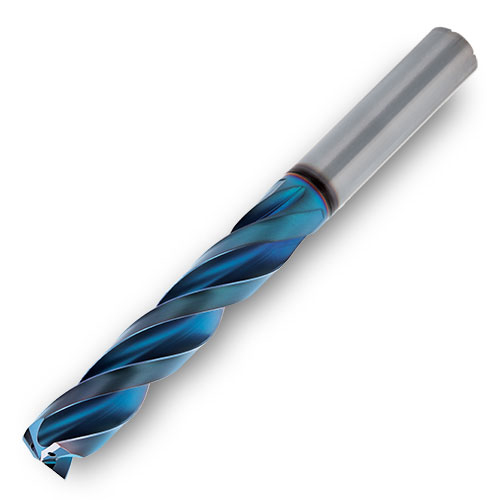

FR0397029T7R01 IN2205 SolidDrill3 Solid Carbide Drill ISO Item #FR0397029T7R01 IN2205 Ingersoll Part #6210775 DC - Cutting Diameter : 0.1563 (3.97 mm). OAL - Overall Length: 74.00 mm. ZEFF - Eff. Teeth: 3. DCON - Shank Diameter : 6.00 mm. CSP - Coolant: Yes. PL - Point Length: 0.80 mm. LU - Usable Length: 29.00 mm. LS - Shank Length: 35.00 mm. SIG - Point Angle: 140. ULDR - Usable Length Diameter Ratio: 5??. LCF - Chip Flute Length: 37.00 mm.
