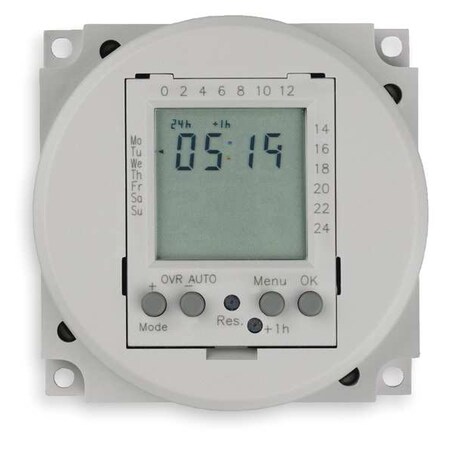

Grasslin by Intermatic FM1D50-120U 24-Hour/7-Day 120VAC Electronic Timer Module with Automatic Daylight Saving Time Changeover
- Brand: Intermatic
- PartNumber: FM1D50-120U
- Model: FM1D50-120U
- Color: Color
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Intermatic Incorporated
- Label: Intermatic Incorporated
Attributes
| Key | Value |
|---|
| Amps | 16 A, 16 |
| Approvals | cURus |
| Available Actions - El. | On/Off |
| Backup Device | CR2032 Lithium Battery |
| Backup Time | 3 yr, 3 yr. |
| Color | Gray |
| Colour | Gray |
| Contact Form | SPDT-NO/NC |
| Country of Origin (subj. | China |
| Depth | 2 in, 2" |
| Display Type | LCD |
| Event Allocation - Elec. | 1 On/Off Action = 2 Eve. |
| Events Available - Elec. | 50 |
| Family Series | Intermatic Timers, FM1D. |
| Gross Weight | 0.29 lbs |
| Height | 3", 3 in |
| HP @ 120V | NO: 3/8, NC: 1/2, NC: 1. |
| HP @ 240V | NC: 3/4, NO: 1 |
| Indicator Light | Yes |
| Item | Electronic Timer |
| Item Number | FM1D50-120U |
| Manufacturer | Intermatic |
| Manufacturer Part Number | FM1D50-120U |
| Max. On/Off Cycles | 50 |
| Max. Time Setting | 7 day, 7 days |
| Maximum Time Preset | 24 Hours, 7 Days |
| Memory | Battery Maintained |
| Min. Time Setting | 1 min., 1 min |
| Mounting | Surface, Panel |
| NEMA Rating | 1 |
| Net Weight | 0.2 lbs |
| Nominal Voltage | 120 VAC |
| Number of Channels | 1 |
| Number of Poles | 1 |
| Number of Pulse Events | 50 |
| Operating Temp. | -13 Degrees to 131 Deg. |
| Operating Voltage | 120 VAC |
| Operation Mode | 24 hr./7 Days, 24 hr/7 . |
| Output | (1) SPDT |
| Product Series | FM1D50 |
| Standards | cULus Listed, Californi. |
| Termination | Quick Connect |
| Time Format | Days, Hours, Minutes |
| Timing Activation | Push Button |
| Voltage | 120VAC, 120V AC |
| Width | 3", 3 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2843312 | 136.86 | 1 | In Stock | | Intermatic | | 136.86 @ 1 |
 | improvedepot.com | 989848 | 145.4 | 1 | In Stock | | Intermatic | | 145.4 @ 1 |
 | turtle.com | INT FM1D50-120U | 155.89 | 1 | In Stock | | Intermatic | | 155.89 @ 1 |
| AmazonTP | B0083H8ZRW | 169.3 | 1 | In Stock | 10 | Intermatic Incorporated | | 169.3 @ 1 |
| hvacdiscountstore.com | INT--FM1D50-120U | 172.3 | 1 | In Stock | | INTERMATIC | | 172.3 @ 1 |
 | sustainablesupply.com | C1198814 | 173.24 | 1 | In Stock | | Intermatic | 0.25 | 173.24 @ 1 |
 | industrialstores.com | FM1D50-120U | 177.1 | 1 | In Stock | 10 | Intermatic | | 177.1 @ 1 |
| steinerelectric.com | 720443 | 194.86 | 1 | In Stock | | Intermatic | | 194.86 @ 1 |
| grainger.ca | WWG4CCD1 | 200.97894698 | 1 | In Stock | | INTERMATIC | 0.25 | 200.97894698 @ 1 |
| Grainger | 4CCD1 | 202.0 | 1 | In Stock | 0 | INTERMATIC | | 202.0 @ 1 |
 | Raptor Supplies | AD6WVH | 352.166373 | 1 | In Stock | | INTERMATIC | | 352.166373 @ 1 |
 | Galco | FM1D50-120U-TRMC | 362.37 | 1 | In Stock | | Intermatic | 0.29 | 362.37 @ 1 |
