Intermatic INT LED4536SC

B0137I2IBK

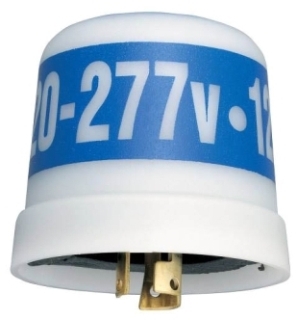

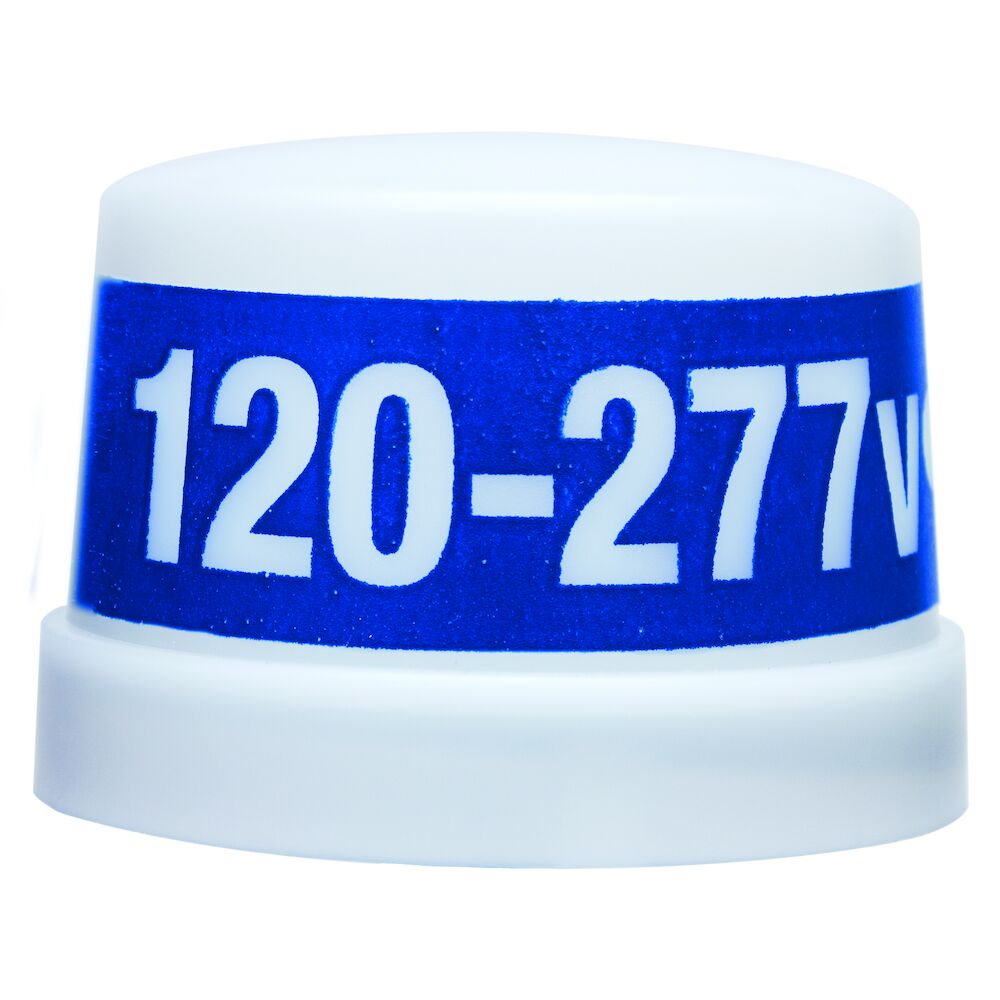

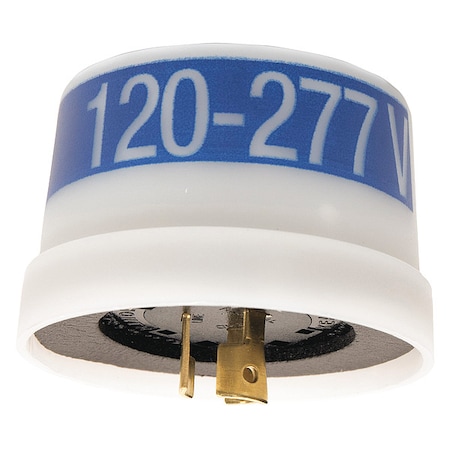

Intermatic LED4536SC Photocontrol, 120/277 VAC, 1000 W Tungsten, 1800 VA Ballast, Twistlock Mount

Intermatic LED4536SC Photocontrol, 120/277 VAC, 1000 W Tungsten, 1800 VA Ballast, Twistlock Mountzoom

Attributes

Key Value
-40 Deg. F / - 40CStart Temp. (Min)
078275143647UPC
1000 WattsWatts Tungsten
105-305VACVoltage (V)
158 Deg. F / 70CStart Temp. (Max)
1800 Watts Magnetic Bal.Watts Ballast
2.721 in.Height (in)
2.97 in. DiameterWidth (in)
Accessory TypePhotocontrol
Amperage Rating8 A
Amps8
Arrester510 J MOV
ASINB00SBC14RW
Ballast Load1800 VA
Batteries Included?No
Batteries Required?No
BrandIntermatic
CertificationCSA, UL, RoHS
ColorColor, White/Blue, Blue.
Country of OriginMX - Mexico, Mexico
CSA and UL ListedUL Listed
Current Stock37
Date First AvailableSeptember 9, 2013
Description/Special Fea.Non-Drift Silicon Light.
Description:LED PHOTO CONTROL 12
Dimensions2.97 in Dia x 2.721 in H
ECCNEAR99
Enclosure TypePolycarbonate, NEMA 4/10
Environmental Conditions-40 to 158 deg F
Expected Lifetime Opera.15000
Fail mode: ONNotes
Family SeriesIntermatic Miscellaneous
Foot Candles Off2.25
Foot Candles On1.5
For Use WithHID, Incandescent, LED
Frequency Rating50/60 Hz
Gross Weight0.3 lbs
High Impact Thermoplast.Material
Housing MaterialPolycarbonate
Included ComponentsLED4536SC
IntermaticBrand
Intermatic K1222Cross Refefence
International ShippingNo
ItemPhotocontrol
Item model numberLED4536SC
Item NumberLED4536SC
Item Package Quantity1
Item Weight0.16 ounces
LED4536SCStock Code
Length2 3/4 in
Length (Straight Wirewa.2 3/4 in
Light TechnologyLED
Limited 12-year manufac.Warranty
Locking-Type MountingMounting
Locking-Type Mounting -.Family
ManufacturerIntermatic
Manufacturer Part NumberLED4536SC
Manufacturers Warranty .12 yr
MaterialPlastic
Max. Ballast Amps8.3 A
Max. Incandescent Amps8.3 A
Max. Wattage1,000
MFG Part #:LED4536SC
MountingLocking
Mounting TypeTwist-Lock
MpnLED4536SC
Net Weight0.0188 lbs
Number Of Pieces1
Operating Cycles1500 Cycles
Part NumberLED4536SC
Product Diameter3.375 in; 85.8 mm
Product Dimensions3 x 3 x 2.7 inches
Product Height2 3/4 in; 69.9 mm
Product Height (in)2.75
Product TypePhotocontrol
Sensitivity1.5 FC ON, 2.25 FC OFF
Sensor TypeSilicone/IR Filter
SKUZO-G1771377
StandardsANSI C136 P10, Californ.
SubCategoryElectrical
Supplier:Intermatic
Temp. Range-40 Degrees to 158 Deg.
Timing Range2 to 5 s
Tungsten Rating1000 W
Turn ON >= 1.5 foot can.Operates
UNSPSC39121524
UPC078275143647
UPC:078275143647
VA Ballast1800
Voltage120 to 277V AC
Voltage Rating105 to 305 VAC
Volts AC120-277
Warranty DescriptionSee Manf Description
Wattage1800
Watts Tungsten1000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoombackdoorsalon.comLED4536SC11.551In StockIntermatic0.0111.55 @ 1
AmazonTPB00SBC14RW23.971In Stock2Intermatic23.97 @ 1
thumbzoomgordonelectricsupply.comLED4536SC24.351In StockINTERMATIC24.35 @ 1
thumbzoomturtle.comINT LED4536SC24.351In StockIntermatic24.35 @ 1
thumbzoombigfrogsupply.comLED4536SC25.241In StockIntermatic25.24 @ 1
Hawk ElectronicsLED4536SC25.241In StockIntermatic25.24 @ 1
thumbzoomsuppliesdepot.comLED4536SC25.241In StockINTERMATIC25.24 @ 1
thumbzoomZoroG177137725.89150Intermatic4.125.89 @ 1
thumbzoomelectricalparts.comLED4536SC28.2688149Intermatic28.2688 @ 1
kscdirect.comINT LED4536SC31.541In StockINTERMATIC31.54 @ 1
thumbzoomPlatt.com012371733.661246Intermatic33.66 @ 1
thumbzoombulbspro.comLED4536SC35.41In StockIntermatic35.4 @ 1
thumbzoomsimsupply.comZO-G177137736.25137Intermatic36.25 @ 1
us.rs-online.com7179532538.1511Intermatic38.15 @ 1
steinerelectric.com81984838.981In StockIntermatic38.98 @ 1
thumbzoomGalcoLED4536SC-TRMC39.681In StockIntermatic0.339.68 @ 1
thumbzoomUnited Electric58641243.481In StockIntermatic43.48 @ 1
thumbzoommidwestapplianceparts.comLED4536SC-IN-P50.051In StockIntermatic50.05 @ 1
Graybar2564751951.02721In StockIntermatic51.0272 @ 1
kirbyrisk.com309731265.171In StockIntermatic65.17 @ 1
thumbzoomebay.com_atthefarmsalesLED4536SC121.991In StockINTERMATIC121.99 @ 1
thumbzoomebay.com_mroglobalsolutionsLED4536SC123.991In StockINTERMATIC123.99 @ 1
thumbzoomebay.com_zorotoolsLED4536SC125.581In StockINTERMATIC125.58 @ 1
thumbzoomebay.com_phildude351LED4536SC127.981In StockINTERMATIC127.98 @ 1
thumbzoomebay.com_sr2800LED4536SC134.991In StockINTERMATIC134.99 @ 1
thumbzoomebay.com_boyle_electricLED4536SC134.991In StockINTERMATIC134.99 @ 1
thumbzoomebay.com_plccenterLED4536SC134.991In StockINTERMATIC134.99 @ 1
thumbzoomebay.com_thriftyshopper96LED4536SC249.941In StockINTERMATIC249.94 @ 1
standardelectricsupply.com2352295327.721In StockIntermatic327.72 @ 1
