IRFZ34NSPBF

B005T912GS

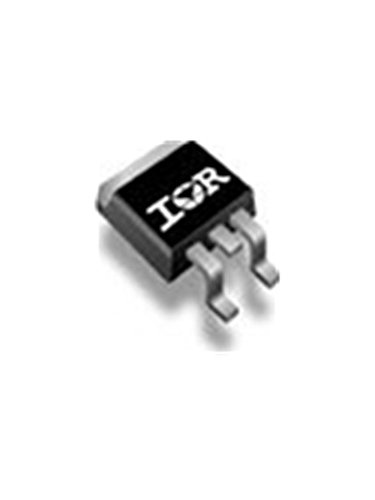

MOSFET 60V 1 N-CH HEXFET 40mOhms 22.7nC (1 piece)

MOSFET 60V 1 N-CH HEXFET 40mOhms 22.7nC (1 piece)zoom

Attributes

Key Value
Alternate Part No.942-IRFZ34NSPBF
BrandInternational Rectifier
CategoryDiscrete Semiconductor .
Channel ModeEnhancement
ConfigurationSingle
Current - Continuous Dr.29A (Tc)
Drain to Source Voltage.55 V
Fall Time40 ns
FET Feature-
FET TypeN-Channel
Gate Charge (Qg) (Max) .34 nC @ 10 V
Id - Continuous Drain C.29 A
Input Capacitance (Ciss.700 pF @ 25 V
ManufacturerInternational Rectifier
Manufacturer Part No.IRFZ34NSPBF
Maximum Operating Tempe.+ 175 C
MfrInternational Rectifier
Minimum Operating Tempe.- 55 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Operating Temperature-55?C ~ 175?C (TJ)
PackageBulk
Package / CaseTO-263-3, D?Pak (2 Lead.
Package/CaseD2PAK-2
PackagingTube
Part StatusActive
Pd - Power Dissipation68 W
Power Dissipation (Max)3.8W (Ta), 68W (Tc)
Product CategoryMOSFET
Qg - Gate Charge22.7 nC
Rds On (Max) @ Id, Vgs40mOhm @ 16A, 10V
Rds On - Drain-Source R.40 mOhms
Rise Time49 ns
SeriesHEXFET?
Supplier Device PackageD2PAK
TechnologyMOSFET (Metal Oxide)
Transistor PolarityN-Channel
Typical Turn-Off Delay .31 ns
Vds - Drain-Source Brea.55 V
Vgs (Max)?20V
Vgs - Gate-Source Break.20 V
Vgs(th) (Max) @ Id4V @ 250?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key126014732.024285714297322International Rectifier2.02428571429 @ 7
swatee.comIRFZ34NSPBF4.191106International Rectifier4.19 @ 1
