IXYS DSEI120-06A

B0748LS3PJ

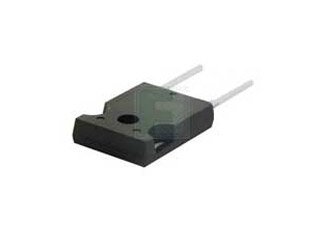

IXYS DSEI120-06A Discretes ultrafast-rectifiers DSEI Series 600 Vrrm 126 A 1.3 Vf Fast Recovery Epitaxial Diode - 1 item(s)

IXYS DSEI120-06A Discretes ultrafast-rectifiers DSEI Series 600 Vrrm 126 A 1.3 Vf Fast Recovery Epitaxial Diode - 1 item(s)zoom

Attributes

Key Value
Alternate Part No.747-DSEI120-06A
Base Product NumberDSEI120
BrandIXYS
Capacitance @ Vr, F-
CaseTO247-2, TO247
CategoryDiscrete Semiconductor .
ConfigurationSingle
Current - Average Recti.77A
Current - Reverse Leaka.3 mA @ 600 V
Diode TypeStandard
Features of semiconduct.fast switching
Forward Continuous Curr.126 A
Forward Voltage Drop1.3 V at 70 A
Kind of packageTube
Load current126A
ManufacturerIXYS
Manufacturer Part No.DSEI120-06A
Max Surge Current660 A
Max. forward impulse cu.540A
Max. forward voltage1.12V
Max. off-state voltage600V
Maximum Operating Tempe.+ 150 C
MfrIXYS
Minimum Operating Tempe.- 40 C
MountingTHT
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Operating Temperature -.-40?C ~ 150?C
PackageTube
Package / CaseTO-247-2
Package/CaseTO-247
PackagingTube
Part StatusActive
Power dissipation357W
ProductUltra Fast Recovery Rec.
Product CategoryRectifiers
Product StatusActive
Recovery Time50 ns
Reverse Current IR3000 uA
Reverse recovery time35ns
Reverse Recovery Time (.50 ns
Reverse Voltage600 V
Semiconductor structuresingle diode
SeriesDSEI120, FRED
SKU1410183
SpeedFast Recovery =< 500ns,.
Supplier Device PackageTO-247AD
TechnologyFRED
TypeSemiconductor
Type of dioderectifying
Unit Weight6.500 g
Voltage - DC Reverse (V.600 V
Voltage - Forward (Vf) .1.3 V @ 70 A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers920-08587.496430In StockIXYS7.4964 @ 30
Digi-Key165130211.491In StockIXYS11.49 @ 1
thumbzoomTMEDSEI120-06A12.07131IXYS12.07 @ 1
swatee.comDSEI120-06A13.6143IXYS13.6 @ 1
Future Electronics686920021.4561In StockIXYS21.456 @ 1
Little DiodeDSEI120-06A29.71033651In StockIXYS29.7103365 @ 1
