CR Laurence 312095LC4313

B006JFOXVC

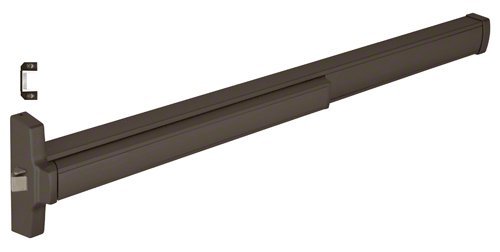

Jackson 312095LC4313 48" Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel with 'C' Strike 4 Foot Dark Bronze Finish

Jackson 312095LC4313 48" Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel with zoom

Attributes

Key Value
ADA CompliantNo
ApplicationNarrow; Medium and Wide.
Bolt Throw3/4 Inch
BrandJackson
CertificationANSI/BHMA 156.3
Device Length48 Inch (4 Foot)
Device RatingPanic Exit Device
Device TypeRim Device
Door Thickness1-3/4
Door Width48
FeaturesRequires Rim Cylinder f.
FinishDark Bronze
Finish DescriptionDark Bronze Anodized
Finish FamilyDark Bronze
Finish/ColorDark Bronze
Fire RatedNo
For Door Height7 Foot
FunctionExit Only
Function FamilyExit Only Device
HandLeft Hand Reverse
HandedLeft
HandingLeft Hand Reverse Bevel.
IncludesMounting Hardware
Latch TypeDeadlocking
Length4
Manufacturer ParentCRH
Material - End CapAluminum
Material - HousingAluminum
Material - Latch & Stri.Sintered Steel
Material - Mechanical C.Stainless and Hardened .
Minimum Stile Width (In.1-3/4
Model2095
Panic Bar Base Height (.2-7/8
Panic Bar Projection (I.3
Panic Bar Width Net46 1/2
Panic DoggingPush Button
Panic Head Height (Inch.7-5/16
Panic TypeRim
Product TypeExit Device
Push Pad Width23.5
Recommended Door TypeAluminum Narrow,Medium,.
Replacement PartsDL911SCKDDU,DL2170SCKDD.
Size48" (1.22 m)
StandardsComplies with ANSI 156..
StileWide Stile
Sub-SeriesEDT_Rim_Devices_crl_jac.
UL ListedYes
