Jet 354550
Jetzoom

Jet 354550

mpn:
354550
brand:
JET
manufacturer:
JET
MPN:
354550
Description:
These JET Drill Presses use a variable-speed motor with the stepped-pulley system, and come equipped with a continuously variable transmission. This enables use at a wide range of speeds, as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor's fixed pulley and the output shaft's variable pulley, changing the speed of the chuck. A tensioner pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes.<BR><BR><b>Features:</b><ul style="margin-top:0px;padding-top: 5px; padding-bottom: 5px;"><li>Speeds from 400 to 5000 RPM</li><li>Handwheel adjustment sets the speeds</li><li>Large 2-1/4 quill allows greater accuracy</li><li>3 Column diameter for maximum head support</li><li>Full bearing support on quill for maximum spindle stiffness</li><li>6 stroke for deep hole application</li><li>Accurate depth stop for precise hole depths</li><li>1/2 drill chuck & arbor</li><li>Safety collar</li></ul><Br><br>
Weight:
550.0
Weight:
550.0 LB
Preferred Price:
3361.23
Price:
3361.23
Min Simple Price:
1899.0
Absolute Min Price:
2696.58
Min Price:
2696.58
Dimensions:
[72.0, 32.0, 23.0]
qty:
21
simpleSku:
jIwNDI:::354550
sku:
jIwNDI::TS:354550@y0
condition:
11
seller:
Home Depot
amzMan:
jet
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Amps AC16.0/8.0
AvailabilityCall for Availability
Base Dimensions (In.)20-7/16 x 14-3/16
Base Height3 1/8 in
Base Length20 1/2 in
Base Size10-1/2 in x 15 in
Base Slots Number and Size (In.), T-Slots Number and Size (In.)2 and 1/2
Base Width14 1/4 in
Base Work Table (In.)12-1/8 x 11-13/16
Brand, ManufacturerJet
Capacity Cast Iron, Drilling Capacity in Cast Iron, Drilling Capacity in Wood5/8 in
Capacity Steel, Chuck Capacity, Chuck Size, Drilling Capacity in Steel, Table Slot Size, Table Slot Width1/2 in
Chuck StyleKeyed
Column Dia., Column Diameter3 in
Column Diameter (In.), Current Stock3
ConditionNew
Coolant System, International Shipping, Power Down Feed Included, Radial ArmNo
Corded/Banded, Corded/Cordless, Power SourceCorded
Country of Origin (subject to change)Taiwan, Province of China
Current16/8 A
Distance Column to Spindle (In.)7-1/2
Drill Press ApplicationDrilling
Drill Press Product GroupingProduction Drill Presses
Drill Press TypeFloor Stand
Drill Spindle Travel6 in - 7 in
Drilling Capacity Cast Iron (In.)5/8
Drilling Capacity in Stainless Steel25/64 in
Drilling Capacity Mild Steel (In.)1/2
Drilling Capacity WoodNot Specified
Drills to Center of Circle (in)15
Drive TypeSpline
Guard Included, Table SlotYes
Horsepower, Motor HP1 HP
Hz60
IncludesLED Readout
ItemFloor Drill Press
Lead TimeExpected to ship in 1-2 business days
ManufacturerJPW Industries
Max. Spindle To Base47 1/2 in
Maximum Overall Height, Overall Height71 in
Maximum Spindle Speed5,000 RPM
Maximum Spindle-to-Base Height44 1/2 in
Maximum Spindle-to-Table Height, Spindle to Table25 3/4 in
Mfr. Model #, Model, Mpn, SKU354550
Minimum Spindle Speed400 RPM
Motor (HP)1 HP, 115/230V, 1Ph
Motor Phase1 Ph
Motor Voltage115/230V AC ; Single-Phase
Nominal Voltage115/230V AC
Number of Speeds, Number of Spindle Speeds, Speed Control, Stationary type, Style (Type)Variable
Number of T-Slots2
Overall Depth, Overall Length30 in
Overall Dimensions (L x W x H) (In.)30 x 20 x 71
Overall Width20 in
Phase1
Primary Material ApplicationMetal
Promotion RestrictionNot eligible for promotion
Quill Dia., Quill Diameter2 1/4 in
Range of Spindle Speeds (RPM)400 - 5,000
Ship Weight (lbs.)200
SKUZO-G9881864
Speed AdjustmentMechanical Variable Speed Drive System
Speed Range400 to 5,000 RPM
Spindle Distance to Base (In.)44-1/2
Spindle Distance to Table (Max.) (In.)25-3/4
Spindle Speed400 to 5000 rpm
Spindle Speed Range400 RPM - 5,000 RPM
Spindle Taper2MT
Spindle Taper (In. x TPI)MT-2
Spindle Travel6 in
Spindle Travel (In.)6
Spindle-to-Column Distance7 1/2 in
SubCategoryMachining/Machinery
Swing, Table Length15 in
T-Slot Centers (In.)5-5/16
Table Load Capacity90 lb
Table ShapeRectangular
Table Size (L x W) (In.)15 x 18
Table Travel (In.)16-3/4
Table Width18 in
Table Work Surface12-1/2 in x 14-1/2 in
UnitEA
UPC19907633044, 662756092687
Voltage115/230
Warranty2-Year Warranty
Weight (Lbs.)426
Work Table Weight Capacity (Lbs.)90

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
Home Depot2054464491899.01899.01In StockJET1899.0 @ Qty: 1+
AmazonTPB002SD73TS1999.01999.01In Stock4JET1999.0 @ Qty: 1+
internationaltool.comJET-3545502489.02489.01In StockJet2489.0 @ Qty: 1+
thumbzoompenntoolco.com1017772529.02529.01In StockJet2529.0 @ Qty: 1+
thumbzoomGlobal IndustrialWBB02307432529.02529.01In StockJET2529.0 @ Qty: 1+
thumbzoomJB ToolsJB-DS-WLT-3545502529.02529.01In StockJet2529.0 @ Qty: 1+
thumbzoomtoolfetch.com3545502529.02529.01In StockJET2529.0 @ Qty: 1+
thumbzoomFactory Authorized OutletJET-3545502529.02529.01In StockJet426.02529.0 @ Qty: 1+
thumbzoomburnstools.com3545502529.02529.01In StockJet2529.0 @ Qty: 1+
elitemetaltools.com94182529.02529.01In StockJET2529.0 @ Qty: 1+
ToolUp.comJET 3545502529.02529.01In StockJet2529.0 @ Qty: 1+
thumbzoomtoolsplus.comJET3545502529.02529.01In StockJET2529.0 @ Qty: 1+
thumbzoomimsbolt.com3545502529.02529.01In StockJET2529.0 @ Qty: 1+
thumbzoomZoroG98818642630.02630.01In StockJet424.02630.0 @ Qty: 1+
thumbzoombscsource.com3545502985.692985.691In StockJet2985.69 @ Qty: 1+
thumbzoomsimsupply.comZO-G98818643081.513081.5113Jet3081.51 @ Qty: 1+
thumbzoomgrovesindustrial.comJET 3545503332.53332.51In StockJET200.03332.5 @ Qty: 1+
B002SD73TS
3071.43 USD

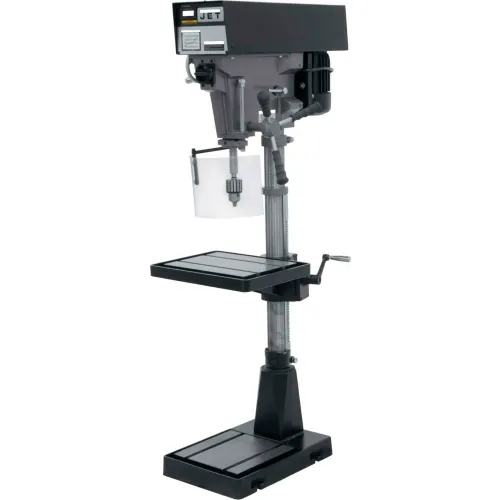

Jet 354550

JET J-A5816 15-Inch 1-Horsepower 115/230-Volt Single Phase Variable Speed Floor Drill Press

JET J-A5816 15-Inch 1-Horsepower 115/230-Volt Single Phase Variable Speed Floor Drill Presszoom
