Description:

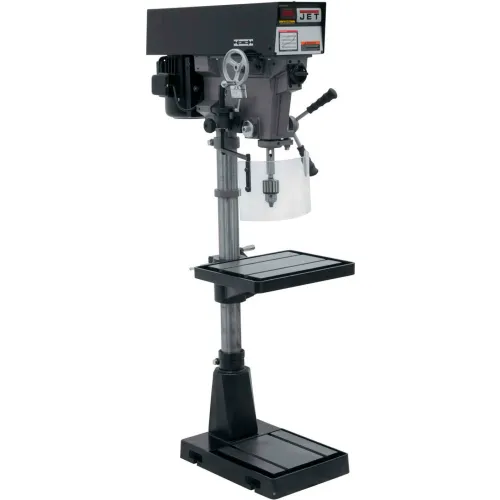

These JET Drill Presses use a variable-speed motor with the stepped-pulley system, and come equipped with a continuously variable transmission. This enables use at a wide range of speeds, as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor's fixed pulley and the output shaft's variable pulley, changing the speed of the chuck. A tensioner pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes.<BR><BR><b>Features:</b><ul style="margin-top:0px;padding-top: 5px; padding-bottom: 5px;"><li>Speeds from 400 to 5000 RPM</li><li>Handwheel adjustment sets the speeds</li><li>Large 2-1/4 quill allows greater accuracy</li><li>3 column diameter for maximum spindle stiffness</li><li>6 stroke for deep hole applications</li><li>Accurate depth stop for precise hole depths</li><li>1/2 drill chuck and arbor</li><li>Safety collar</li></ul><Br><br>
Weight:
26.625
Weight:
26.625 LB
Preferred Price:
4405.53
Price:
4405.53
Min Simple Price:
2489.0
Absolute Min Price:
3534.37
Min Price:
3534.37
Dimensions:
[72.0, 31.0, 22.0]
qty:
21
simpleSku:
jIwNDI:::354551
sku:
jIwNDI::W6:354551@y0
condition:
11
seller:
internationaltool.com
amzMan:
jet
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Base Dimensions (In.) | 20-7/16 x 14-3/16 </td |
| Base Height | 3 1/8 in |
| Base Length | 20 1/2 in |
| Base Size | 10-1/2 in x 15 in |
| Base Slots Number & Size (In.), T-Slots Number and Size (In.) | 2 & 1/2 </td |
| Base Width | 14 1/4 in |
| Base Work Table (In.) | 12-1/8 x 11-13/16 </td |
| Chuck Size, Table Slot Size, Table Slot Width | 1/2 in |
| Column Dia., Column Diameter | 3 in |
| Column Diameter (In.) | 3 </td |
| Condition | New |
| Distance Column to Spindle (In.) | 7-1/2 </td |
| Drill Press Product Grouping | Production Drill Presses |
| Drilling Capacity Cast Iron (In.) | 5/8 </td |
| Drilling Capacity Mild Steel (In.) | 1/2 </td |
| Drills to Center of Circle (in) | 15 </td |
| Drive Type | Spline |
| Horsepower | 1 HP |
| Item | Floor Drill Press |
| Manufacturer | Jet |
| Maximum Overall Height, Overall Height | 71 in |
| Maximum Spindle-to-Base Height | 44 1/2 in |
| Maximum Spindle-to-Table Height | 25 3/4 in |
| Motor (HP) | 1 HP, 230/460V, 3Ph </td |
| Motor Phase | 3 Ph |
| Number of Spindle Speeds | Variable </td |
| Overall Depth, Overall Length | 30 in |
| Overall Dimensions (L x W x H) (In.) | 30 x 20 x 71 </td |
| Overall Width | 20 in |
| Quill Dia., Quill Diameter | 2 1/4 in |
| Range of Spindle Speeds (RPM) | 400 - 5,000 </td |
| SKU | 354551 |
| Spindle Distance to Base (In.) | 44-1/2 </td |
| Spindle Distance to Table (Max.) (In.) | 25-3/4 </td |
| Spindle Taper (In. x TPI) | MT-2 </td |
| Spindle Travel (In.) | 6 </td |
| Stationary type | Variable |
| Style (Type) | Variable </td |
| Swing, Table Length | 15 in |
| T-Slot Centers (In.) | 5-5/16 </td |
| Table Size (L x W) (In.) | 15 x 18 </td |
| Table Travel (In.) | 16-3/4 </td |
| Table Width | 18 in |
| Warranty | 2-Year Warranty |
| Weight (Lbs.) | 426 </td |
| Work Table Weight Capacity (Lbs.) | 90 </td |
