mpn:
brand:
manufacturer:
MPN:
Weight:
2420.0
Weight:
2420.0 LB
Preferred Price:
19822.23
Price:
19822.23
Min Simple Price:
11199.0
Absolute Min Price:
15902.58
Min Price:
15902.58
Dimensions:
[85.0, 66.0, 63.0]
qty:
21
simpleSku:
jIwNDI:::690407
sku:
jIwNDI::R2:690407@y0
condition:
11
seller:
Global Industrial
amzMan:
jet
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| ASIN | B003A2P6R2 |
| Backward Head Tilt Adjustment, Forward Head Tilt | 47 Degrees |
| Batteries Required? | No |
| Collet Capacity | 1/8 - 7/8 </td |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Cross Travel | 12 in |
| Cross Travel (In.) | 12 |
| Digital Readout | ACU-RITE VUE </td |
| Distance Spindle to Column (Max.) (In.) | 19 </td |
| Distance Spindle to Column (Min.) (In.) | 4-1/2 </td |
| Features | Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle beardings, Chrome plated motor shaft with lower bearing support, 2 year warranty, 30 point inspection |
| Feed Rate for Power Down Feed (In.) | 0.0015, 0.003, 0.006 |
| Head Angle (Deg.) | 90 |
| Head Angle Front/Back (Deg.) | 47 |
| Head Movement (Deg.) | 90 deg R & L, 45 deg F & B </td |
| Horsepower, Motor HP | 2 |
| Hz | 60 |
| Includes | 2-Axis ACU-RITE VUE, X and Y-Axis Powerfeed , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools |

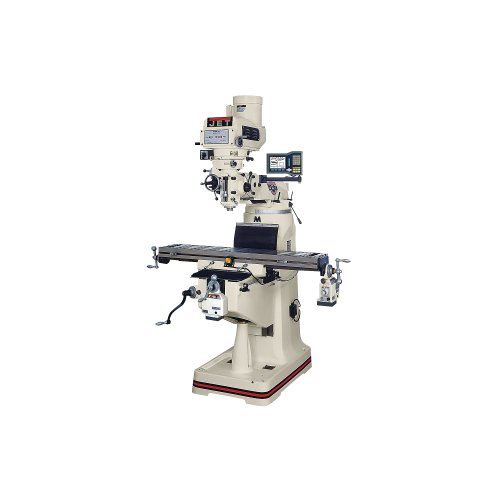

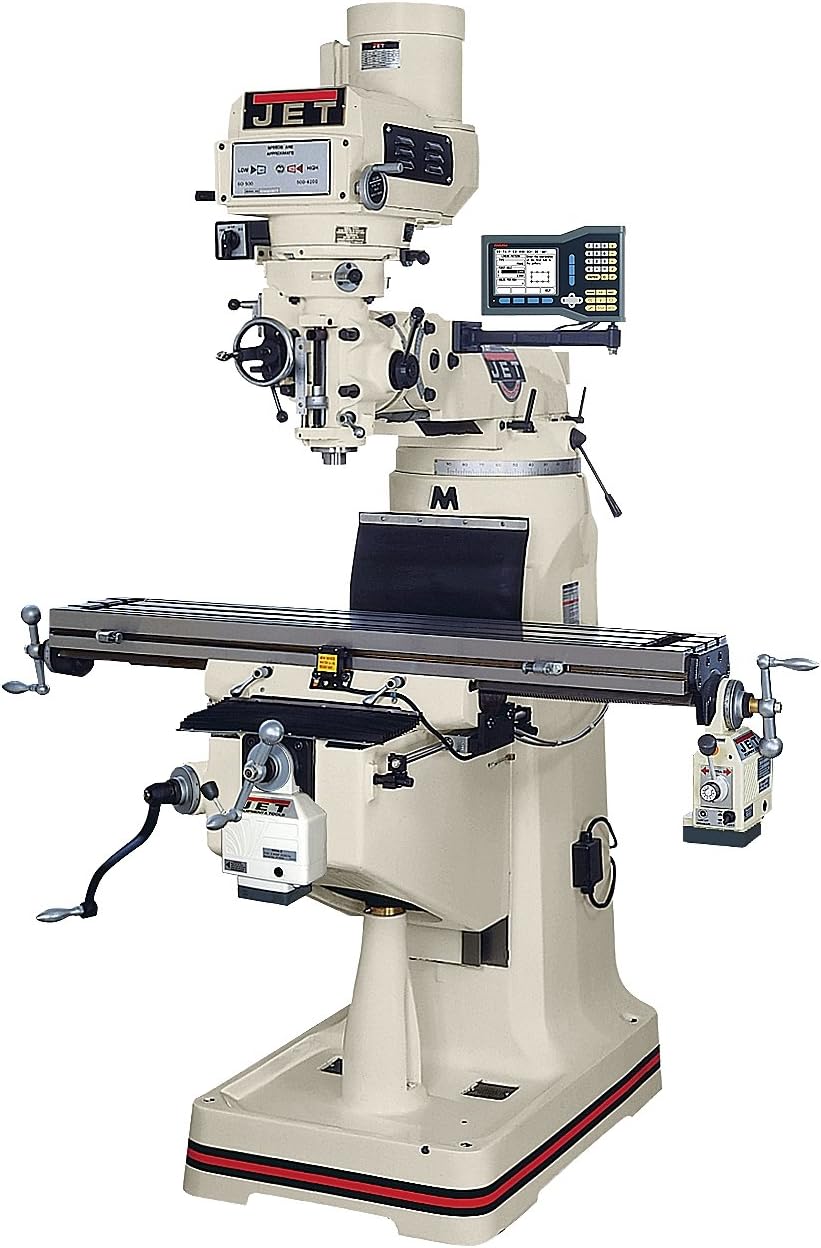

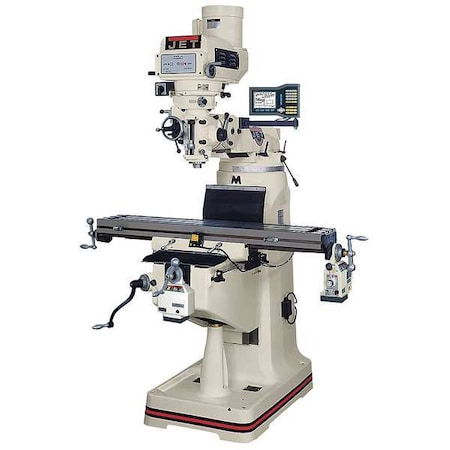

| Item | Knee/Column Milling Machine |
| Item model number, Part Number | 690407 |
| Item Package Quantity, Phase | 1 |
| Knee Travel (In.) | 16 |
| Left-Hand Head Tilt, Right-Hand Head Tilt | 90 Degrees |
| Longitudinal Travel | 34 in |
| Longitudinal Travel (In.) | 34.00 |
| Manufacturer | JET |
| Max Distance Spindle to Table (In.) | 17-1/2 </td |
| Max. Spindle Speed | 4,200 RPM |
| Max. Spindle to Table Distance | 17 1/2 in |
| Max. Table Weight (lbs.) | 660 |
| Min. Spindle Speed | 60 RPM |
| Min. Spindle to Table Distance | 17-1/2 in |
| Motor (HP) | 2 HP, 115/230V, 1Ph </td |
| Number of Axis | 2 </td |
| Number of Spindle Speeds | Variable, Variable </td |
| Number of T-Slots | 3 |
| Overall Depth | 63 in |
| Overall Dimensions (L x W x H) (In.) | 66 x 63 x 85 </td |
| Overall Height | 85 in |
| Overall Length | 65-1/2 in |
| Overall Width | 65-1/2 |
| Power Source | Corded-electric |
| Powerfeed | X and Y-Axis </td |
| Quill Dia. | 3 3/8 in |
| Quill Dia. (In.) | 3-3/8 |
| Quill Diameter (In.) | 3-3/8 </td |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 </td |
| Quill Travel (In.) | 5 |
| Ram Travel (In.) | 14-1/2 |
| Ram Travel Length | 14-1/2 in |
| Range of Spindle Speeds (RPM) | 60 - 4,200 </td |
| Spindle Speed (RPM) | 60 to 4200 |
| Spindle Taper (In. x TPI) | R-8 </td |
| Spindle Taper, Spindle Taper Size | R-8 |
| Spindle to Table (In.) | 17-1/2 |
| Spindle Travel (In.) | 5 </td |
| Spindle Travel Length | 5 in |
| T-Slot Centers (In.) | 2-1/2 </td |
| T-Slot Size (In.) | 3,5/8 |
| T-Slots Number and Size (In.) | 3 and 5/8 </td |
| Table Cross Travel (In.) | 12 </td |
| Table Length | 9 in |
| Table Load Capacity | 660 lb |
| Table Longitudinal Travel (In.) | 34 </td |
| Table Longitudinal Travel With Powerfeed (In.) | 28-3/4 </td |
| Table Size (In.) | 9 x 49 |
| Table Size (L x W) (In.) | 9 x 49 </td |
| Table Width | 49 in |
| Travel of Knee (In.) | 14-1/2 </td |
| Travel of Ram (In.) | 13-3/8 </td |
| Type | Variable Speed R8 |
| Voltage | 115/230V |
| Weight (Lbs.) | 2,420 </td |
| Work Table Weight Capacity (Lbs.) | 660 </td |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Global Industrial | B0230815 | 11199.0 | 11199.0 | 1 | In Stock | JET | 11199.0 @ Qty: 1+ | |||
 | Amazon | B003A2P6R2 | 11199.0 | 11199.0 | 1 | In Stock | JET | 11199.0 @ Qty: 1+ | ||
 | toolsplus.com | JET690407 | 11199.0 | 11199.0 | 1 | In Stock | JET | 11199.0 @ Qty: 1+ | ||
 | AceTool | JET-690407 | 11659.0 | 11659.0 | 1 | In Stock | Jet | 2420.0 | 11659.0 @ Qty: 1+ | |
 | Zoro | G9924266 | 11830.59 | 11830.59 | 1 | In Stock | Jet | 2420.0 | 11830.59 @ Qty: 1+ | |
| Grainger | 25CH31 | 18016.0 | 18016.0 | 1 | In Stock | 15 | JET | 18016.0 @ Qty: 1+ |
