Jet 690408

Jet 690408

mpn:
690408
brand:
JET
manufacturer:
JET
MPN:
690408
Weight:
2420.0
Weight:
2420.0 LB
Preferred Price:
316.83
Price:
316.83
Min Simple Price:
179.0
Absolute Min Price:
254.17
Min Price:
254.17
Dimensions:
[85.0, 66.0, 63.0]
qty:
1
simpleSku:
jIwNDI:::690408
sku:
jIwNDI::BG:690408@y0
condition:
11
seller:
TylerTool
amzMan:
jet
HazMat:
False
DropShip:
True

Attributes

Key ^Value
ASINB003A2RBBG
Batteries Required?No
Brand, ManufacturerJET
Collet Capacity1/8 - 7/8 </td, 1/8 - 7/8
ConditionNew
Cross Travel (In.)12
Cross Travel, Table Cross Travel12 in
Digital ReadoutACU-RITE 203, ACU-RITE VUE </td
Dimensions66 x 63 x 85 in
Distance Spindle to Column4-1/2 in
Distance Spindle to Column (Max)19 in
Distance Spindle to Column (Max.) (In.)19 </td
Distance Spindle to Column (Min.) (In.)4-1/2 </td
Head Angle Front/Back (Deg.)48
Head Movement90 R & L, 45 F & B degree
Head Movement (Deg.)90 deg R & L, 45 deg F & B </td
Horsepower, Motor HP, Number of Axis, Phase3
ItemKnee/Column Milling Machine
Item model number, Part Number, SKU690408
Item Package Quantity1
Knee Travel (In.)14-1/2
Longitudinal Travel (In.)34.00
Longitudinal Travel, Table Longitudinal Travel34 in
Max Distance Spindle to Table17-1/2 in
Max Distance Spindle to Table (In.)17-1/2 </td
Motor (HP)3 HP, 230/460V, 3Ph </td
Number of Axis3 (Knee) </td
Number of Spindle Speed (RPM)Variable
Number of Spindle SpeedsVariable </td
Overall Depth63 in
Overall Dimensions (L x W x H) (In.)66 x 63 x 85 </td
Overall Height85 in
Overall Length66 in
Overall Width65-1/2
Power SourceCorded-electric
PowerfeedX-Axis </td
Quill Dia.3 3/8 in
Quill Dia. (In.)3-3/8
Quill Diameter3-3/8 in
Quill Diameter (In.)3-3/8 </td
Quill Down Feed Rates (IPR).0015 - .003 - .006 </td, .0015 - .003 - .006
Ram Travel Length, Travel of Ram13-3/8 in
Range of Spindle Speed (RPM)60 - 4,200
Range of Spindle Speeds (RPM)60 - 4,200 </td
Spindle Taper (in x TPI), Spindle Taper SizeR-8
Spindle Taper (In. x TPI)R-8 </td
Spindle Travel (In.)5 </td
Spindle Travel, Spindle Travel Length5 in
Style, TypeVariable Speed R8
T-Slot Centers2-1/2 in
T-Slot Centers (In.)2-1/2 </td
T-Slot Size (In.)0 3/8
T-Slots Number and Size3 and 5/8 in
T-Slots Number and Size (In.)3 and 5/8 </td
Table Cross Travel (In.)12 </td
Table Length9 in
Table Longitudinal Travel (In.)34 </td
Table Longitudinal Travel w/ Powerfeed28-3/4 in
Table Longitudinal Travel With Powerfeed (In.)28-3/4 </td
Table Size (In.)9 x 49
Table Size (L x W)9 x 49 in
Table Size (L x W) (In.)9 x 49 </td
Table Width49 in
Travel of Knee14-1/2 in
Travel of Knee (In.)14-1/2 </td
Travel of Ram (In.)13-3/8 </td
Voltage230/460V
Volts230/460
Weight2420
Weight (Lbs.)2,420 </td
Work Table Weight Capacity660 lbs
Work Table Weight Capacity (Lbs.)660 </td

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
TylerToolJETN690408179.0179.01In StockJET179.0 @ Qty: 1+
thumbzoomAmazonB003A2RBBG12799.012799.01In StockJET12799.0 @ Qty: 1+
ToolUp.comJET 69040812799.012799.01In StockJet2420.012799.0 @ Qty: 1+
Grainger42W87315372.015372.01In Stock15JET15372.0 @ Qty: 1+
AmazonTPB003A2RBBG16799.016799.01In Stock2JET16799.0 @ Qty: 1+
thumbzoomGlobal IndustrialWBB023081617369.017369.01In Stock24JET17369.0 @ Qty: 1+
thumbzoombeavertools.comJT69040817369.017369.01In StockJet17369.0 @ Qty: 1+
thumbzoomJB ToolsJB-DS-WLT-69040817369.017369.01In StockJet17369.0 @ Qty: 1+
thumbzoomAceToolJET-69040817369.017369.01In StockJet2420.017369.0 @ Qty: 1+
thumbzoomFactory Authorized OutletJET-69040817369.017369.01In StockJet17369.0 @ Qty: 1+
thumbzoomburnstools.com69040817369.017369.01In StockJet17369.0 @ Qty: 1+
elitemetaltools.com322117369.017369.01In StockJET2420.017369.0 @ Qty: 1+
imsbolt.com69040817369.017369.01In StockJET17369.0 @ Qty: 1+
thumbzoomZoroG987904617869.017869.011Jet2420.017869.0 @ Qty: 1+
B003A2RBBG
21402.86 USD
Jet 690408

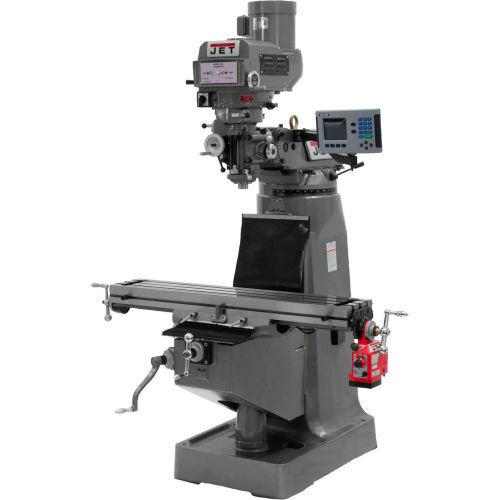

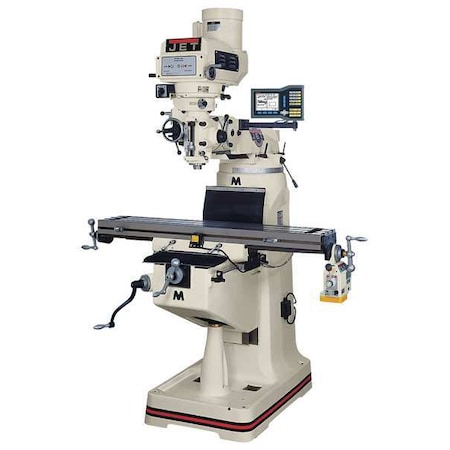

Jet Tools Tools - JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Knee) and X-Axis Powerfeeds (690408) Standard

Jet Tools Tools - JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Knee) and X-Axis Powerfeeds (690408) Standardzoom
