- mpnA19ANC-1C
- brandname: Johnson Controls
- manufacturername: Johnson Controls

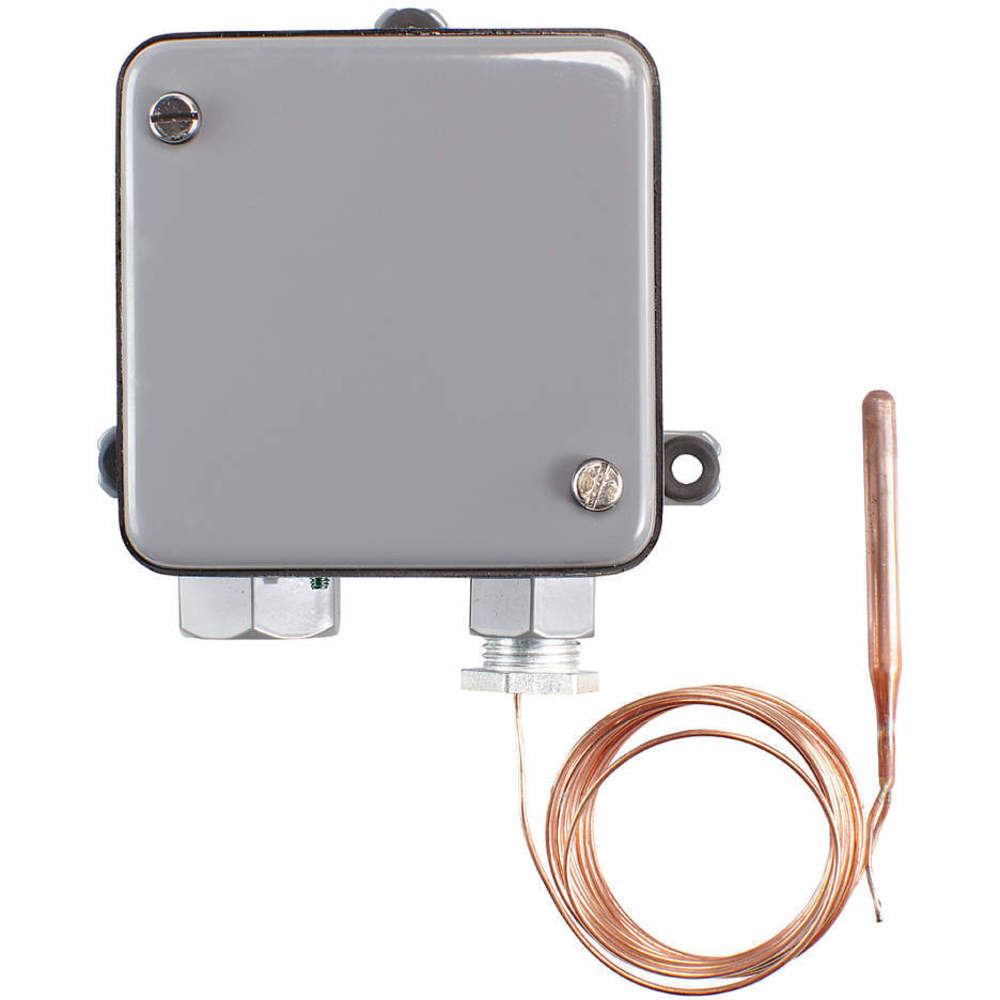

Johnson Controls A19ANC-1C Line Volt Mechanical Thermostat, 120 to 277 VAC
- Brand: Johnson Controls
- PartNumber: A19ANC-1C
- Model: A19ANC-1C
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Johnson Controls Inc
- Label: Johnson Controls Inc
Attributes
| Key | Value |
|---|
| Application | Heat and Cool |
| Best Seller/Typically I. | Yes |
| Brand | Johnson Controls |
| Bulb Diameter | 1/4 in |
| Bulb Length | 2 1/4 in |
| Capillary Length | 10 ', 120 in |
| Capillary Length/Bulb D. | 10 ft Capillary, 2 1/4 . |
| Changeover Type | Manual |
| Color | Gray |
| Comments | Type 3R Enclosure |
| Compatible System Type | Cooling Tower Sump Heat. |
| Contact Rating | 120V AC, 208V AC, 240V . |
| Contact Rating Resistiv. | 16 A |
| Contact Rating Resistiv. | 8 A |
| Contact Rating Resistiv. | 6.9 A |
| Contact Type | Snap Action |
| Control Range | 0 Degrees to 150 Degree. |
| Control Type | Screwdriver |
| Depth | 3 3/8 in |
| Differential | 5 Degrees F |
| Differential Temperature | 5 ?F |
| Differential Type | Fixed |
| Electrical Connection T. | Screw Terminal |
| Enclosure Colour | Gray |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Enclosure Type | NEMA 3R |
| Family Series | Johnson Controls Contro. |
| Full Load Amps @ 120V AC | 16 A |
| Full Load Amps @ 240V AC | 8 A |
| Gross Weight | 2.63 lbs |
| Height | 4 1/16 in |
| Includes | Remote Sensing Bulb, Wr. |
| Inductive Amps @ 120V | 16 A |
| Inductive Amps @ 208V | 9.2 A |
| Inductive Amps @ 240V | 8 A |
| International Shipping | No |
| Item | Line Volt Mechanical Ts. |
| Item Number | A19ANC-1C |
| Lead Time | Expected to ship in 1-2. |
| Locked Rotor Amps @ 120V | 96 A |
| Locked Rotor Amps @ 240V | 48 A |
| Manufacturer | Johnson Controls |
| Manufacturer Part Number | A19ANC-1C |
| Max Temperature | 190 ?F |
| Maximum Control Tempera. | 150 Degrees F |
| Maximum Operating Tempe. | 190 Degrees F |
| Minimum Control Tempera. | 0 Degrees F |
| Minimum Operating Tempe. | -35 Degrees F |
| Mounting Direction | Horizontal, Vertical |
| Mounting Hole Diameter | 1/4 in |
| Mounting Type | Surface Mount |
| Mpn | A19ANC-1C |
| Net Weight | 2.325 lbs |
| Number of Cooling Stages | 1 |
| Number of Heating Stages | 1 |
| Number of Poles | 1 |
| Number of Relay Inputs | 1 |
| Number of Switches | 1 |
| Output | 1 SPDT |
| Overall Depth | 3 3/8 in, 3 1/2 in |
| Overall Height | 4 1/8 in, 4 in |
| Overall Width | 4 1/8 in, 4 in |
| Pilot Duty Rating | 125 VA @ 24 to 600V AC |
| Product Condition | New |
| Product Series | A19 Control with Rainpr. |
| Resistive Amps @ 208V AC | 9.2 A |
| Sensing Bulb Dia. | 9/32 in |
| Sensing Bulb Length | 2 1/4 in |
| Sensor Location | Remote |
| Sensor Type | Bulb, Hydraulic Capilla. |
| Setpoint Temp Range | 0-150 ?F |
| SKU | ZO-G5063134 |
| Standards | CSA LR948/4813 02, UL E. |
| Switch Action | Open/Close on Rise |
| Switch Type | SPDT |
| Temperature Differential | 5 Degrees F |
| Temperature Scale | Fahrenheit/Celsius |
| Temperature Sensitivity | +/-2 Degrees F |
| Thermostat Control Range | 0 Degrees to 150 Degre. |
| Thermostat Type | Rainproof Single-Stage . |
| Voltage | 120/208/240/277VAC, 120. |
| Width | 4 1/16 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B00F1O7YC2 | 138.88 | 1 | In Stock | 1 | Johnson Controls Inc | | 138.88 @ 1 |
| Amazon | B00F1O7YC2 | 166.2 | 1 | In Stock | 77 | Johnson Controls Inc | | 166.2 @ 1 |
 | morelectricheating.com | JOHNCTRL10001 | 171.36 | 1 | In Stock | | Johnson Controls | | 171.36 @ 1 |
 | cappusa.com | 2981206 | 219.71 | 1 | In Stock | | Johnson Controls | | 219.71 @ 1 |
| alliedcontrols.com | A19ANC-1C | 231.21 | 1 | In Stock | | Johnson Controls | | 231.21 @ 1 |
 | sustainablesupply.com | C1135020 | 231.42 | 1 | In Stock | | Johnson Controls | 2.7 | 231.42 @ 1 |
 | Zoro | G5063134 | 232.99 | 1 | 23 | | Johnson Controls | 2.7 | 232.99 @ 1 |
 | blackhawksupply.com | A19ANC-1C | 233.61 | 1 | In Stock | | Johnson Controls | | 233.61 @ 1 |
 | simsupply.com | ZO-G5063134 | 275.82 | 1 | In Stock | | Johnson Controls | | 275.82 @ 1 |
 | waterpumpsnow.com | A19ANC-1C | 276.1 | 1 | In Stock | | Johnson | 1.7 | 276.1 @ 1 |
 | Galco | A19ANC-1C-JHSN | 279.32 | 1 | 1 | | Johnson Controls | 2.63 | 279.32 @ 1 |
 | Radwell | A19ANC-1C | 310.0 | 1 | 6 | | JOHNSON CONTROLS | | 310.0 @ 1 |
 | National Supply Network | B476167 | 339.6 | 1 | In Stock | | Johnson Controls Inc | | 339.6 @ 1 |
| Kele | A19ANC-1C | 364.0 | 1 | In Stock | | Johnson Controls | | 364.0 @ 1 |
| grainger.ca | JHCA19ANC1C | 413.17232356 | 1 | In Stock | | JOHNSON CONTROLS | 2.7 | 413.17232356 @ 1 |
 | Raptor Supplies | AC7WKE | 451.789299 | 1 | In Stock | | JOHNSON CONTROLS | | 451.789299 @ 1 |
