Johnson Controls A19EDB-1C

B008HQ6QKW

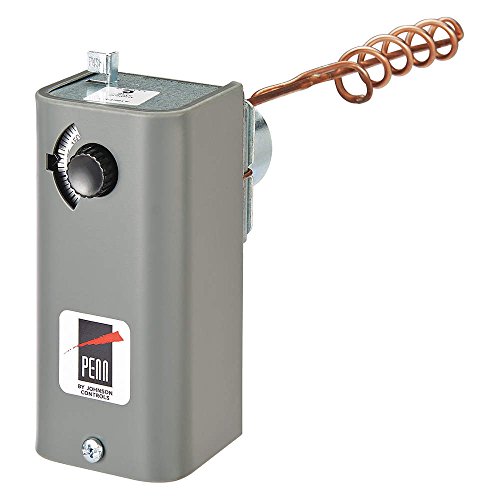

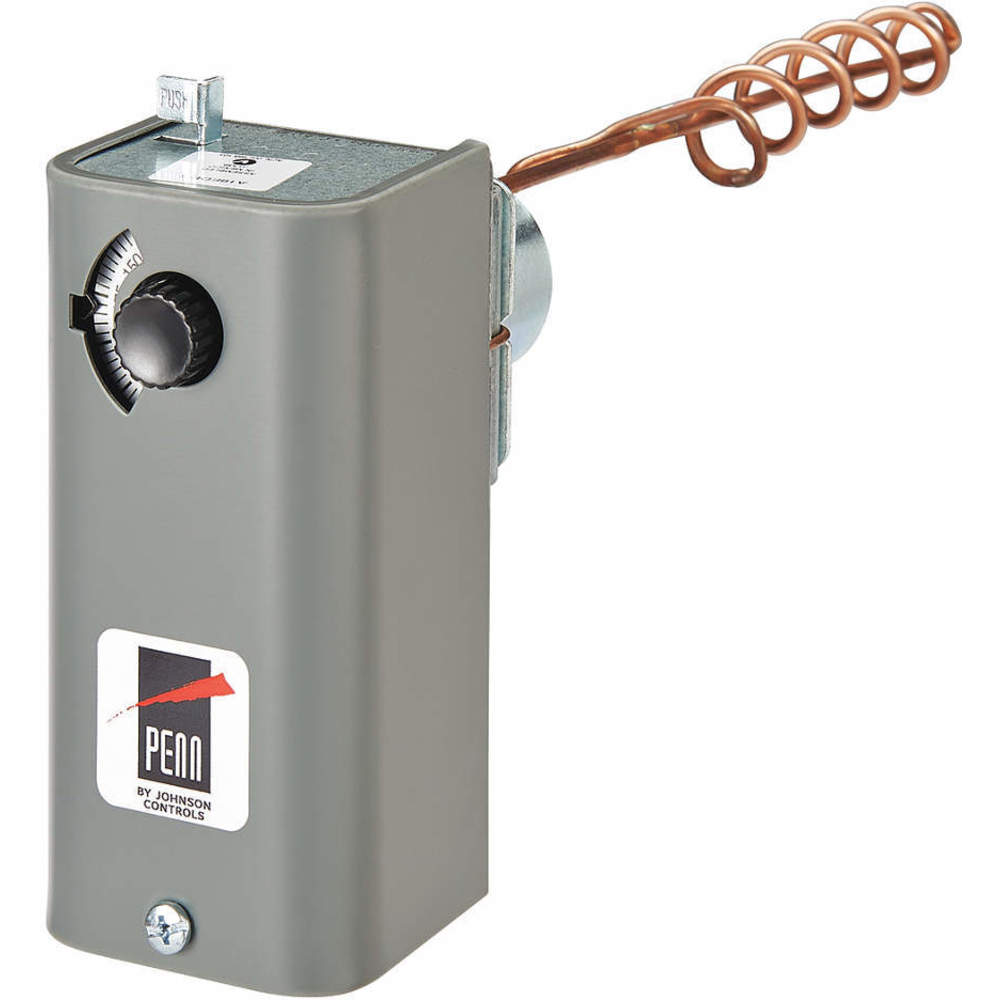

Johnson Controls A19EDB-1C Penn Series A19 Fan or Cutout Control, Liquid Expansion Bulb, Warm Air with Lock Out, Open High SPST Switch Action, 38 to 177?C Range, Manual Reset Differential, 6" Bulb

Johnson Controls A19EDB-1C Penn Series A19 Fan or Cutout Control, Liquid Expansion Bulb, Warm Air with Lock Out, Open High SPST Switch Action, 38 to 177?C Range, Manual Reset Differential, 6" Bulbzoom

Attributes

Key Value
Best Sellers RankSee Top 100 in Industri.
BrandJohnson Controls
ColorGray
CommentsManual Reset
Country of OriginUSA
Current Stock3
Date First AvailableJuly 5, 2012
Depth1 13/16 in
DifferentialManual Reset
Enclosure TypeGalvanized/Steel
Family SeriesJohnson Controls Contro.
Gross Weight0 lbs
Height4 13/32 in
Inductive Amps @ 120V16 A
Inductive Amps @ 208V9.2 A
International ShippingNo
Item model numberA19EDB-1C
Item NumberA19EDB-1C
Lead TimeExpected to ship in 1-2.
ManufacturerJohnson Controls, Johns.
Manufacturer Part NumberA19EDB-1C
MaterialSteel
Max Temperature375 ?F
MpnA19EDB-1C
Net Weight0 lbs
Number of Relay Inputs0
Output1 SPST
Overall Depth14 5/8 in
Overall Height4 7/16 in
Overall Width2 13/16 in
Package Dimensions6 x 2.5 x 2.5 inches; 0.
Pilot Duty Contacts (VA)125 VA
Product SeriesA19 Fan or Cutout Contr.
Product with faster shi.true
Resistive Amps @ 208VAC16 A
Sensing Bulb Dia.3/8 in
Sensor Diameter3/8 in
Sensor TypeBulb
Setpoint Temp Range100-350 ?F
Shippingundefined (Fixed Shippi.
SKUZO-G6464297
StandardsUL E6688; CSA LR948/481.
Switch ActionOpen on Rise
Switch TypeSPST
Thermostat Control Range100 Degrees to 350 Deg.
Thermostat Heating/Cool.Heating/Cooling
Thermostat ItemLine Voltage Mechanical.
UPC078502808806
Voltage120/208/240/277VAC
Width2 5/32 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomVoomi SupplyA19EDB-1C14.991In StockJohnson Controls14.99 @ 1
hvacdiscountstore.comJOH--A19EDB-1C118.711In StockJOHNSON118.71 @ 1
thumbzoomhomeessentialsdirect.comA19EDB-1C118.951In StockJohnson Controls Inc118.95 @ 1
alliedcontrols.comA19EDB-1C132.971In StockJohnson Controls132.97 @ 1
thumbzoomcappusa.com26275133.641In StockJohnson Controls133.64 @ 1
thumbzoomblackhawksupply.comA19EDB-1C134.351In StockJohnson Controls134.35 @ 1
thumbzoomZoroG6464297134.99114Johnson Controls1.6134.99 @ 1
thumbzoomsustainablesupply.comC2085507141.651In StockJohnson Controls2.0141.65 @ 1
thumbzoomsimsupply.comZO-G6464297159.8513Johnson Controls159.85 @ 1
thumbzoomwaterpumpsnow.comA19EDB-1C171.61In StockJohnson0.1171.6 @ 1
thumbzoomGalcoA19EDB-1C-JHSN171.841In StockJohnson Controls171.84 @ 1
thumbzoomNational Supply NetworkB476078201.431In StockJohnson Controls Inc201.43 @ 1
thumbzoomRaptor SuppliesAG9MLV270.6892111In StockJOHNSON CONTROLS270.689211 @ 1
