Johnson Controls A70HA-1C

B003U4DH8A

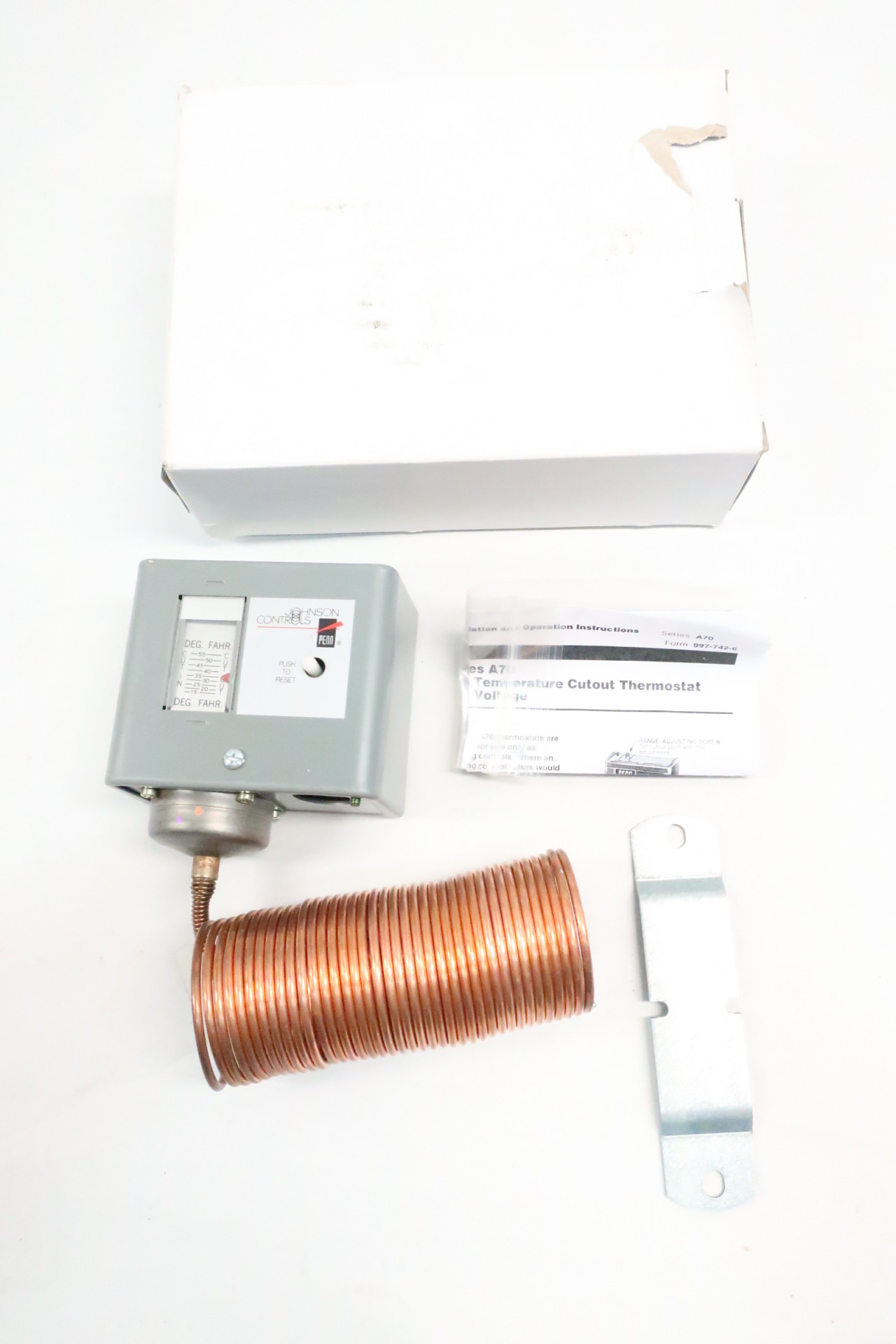

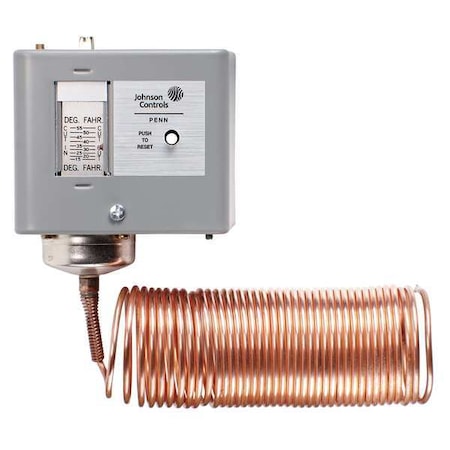

Johnson Controls A70HA-1C A70 Series Two-Circuit Temperature Control, Four-Wire, Manual Reset, 15-55 Degree F Temperature Range

Johnson Controls A70HA-1C A70 Series Two-Circuit Temperature Control, Four-Wire, Manual Reset, 15-55 Degree F Temperature Rangezoom

Attributes

Key Value
ApplicationHeat and Cool
Best Sellers RankSee Top 100 in Industri.
BrandJohnson Controls
Bulb Diameter1/4 in, 1/8 in
Bulb Length20 ft
Capillary Length20 ft, 20 ', 240 in
Capillary Length/Bulb D.20 ft Capillary, 20 ft .
Changeover TypeManual
ColorGray
CommentsManual Reset
Compatible System TypeHeating Element, Refrig.
Contact Rating120V AC, 208V AC, 240V .
Contact Rating Resistiv.6 A, 16 A
Contact Rating Resistiv.6 A, 8 A
Contact Rating Resistiv.6 A, 7.2 A
Contact TypeSnap Action
Control TypeScrewdriver
Current Stock97
Date First AvailableJune 5, 2010
Depth2 3/32 in
Differential5 Degrees F
Differential TypeManual Reset
Electrical Connection T.Hardwired
Enclosure ColourGray
Enclosure FinishBaked Enamel
Enclosure MaterialSteel
Enclosure NEMA RatingNEMA 1
Enclosure TypeGalvanized/Steel
Family SeriesJohnson Controls Contro.
Full Load Amps @ 120V AC6 A, 16 A
Full Load Amps @ 240V AC3 A, 8 A
Gross Weight2.445 lbs
GTIN683194550348
Height9.00, 3 1/4 in
Inductive Amps @ 120V6 A, 16 A
Inductive Amps @ 208V3.4 A, 9.2 A
Inductive Amps @ 240V3 A, 8 A
International ShippingNo
Is Discontinued By Manu.No
ItemLine Volt Mechanical Ts.
Item model numberA70HA-1C
Item NumberA70HA-1C
Lead TimeExpected to ship in 1-2.
Locked Rotor Amps @ 120V36 A, 96 A
Locked Rotor Amps @ 240V18 A, 48 A, 18A Aux, 48.
ManufacturerJohnson Controls
Manufacturer Part NumberA70HA-1C
Max Temperature400 ?F
Maximum Control Tempera.55 Degrees F
Maximum Operating Tempe.170 Degrees F
Minimum Control Tempera.15 Degrees F
Minimum Operating Tempe.0 Degrees F
Mounting Hole Diameter1/4 in, 1/2 in, 1/4 in,.
Mounting TypeSurface Mount
MpnA70HA-1C
Net Weight2.03 lbs
Number of Cooling Stages1
Number of Heating Stages1
Number of Poles1
Number of Relay Inputs2
Number of Switches2
Output1 DPDT
Overall Depth2 in, 2 1/8 in
Overall Height3 1/4 in
Overall Width4 in
Pilot Duty Rating125 VA @ 120 to 600V AC.
Product Dimensions11 x 9 x 5 inches; 2.02.
Product SeriesA70 4 Wire 2 Circuit Co.
Product with faster shi.true
Resistive Amps @ 208V AC6 A, 9.2 A
Sensing Bulb Dia.1/8 in
Sensor LocationRemote
Sensor TypeHydraulic Capillary Bul.
Setpoint Temp Range15-55 ?F
Shippingundefined (Fixed Shippi.
SKUZO-G5061865
StandardsCSA LR948/1222 01, UL S.
Switch ActionOpen/Close on Rise
Switch TypeSPST
Temperature Differential5 Degrees F
Temperature ScaleFahrenheit/Celsius
Temperature Sensitivity+/-2 Degrees F
Thermostat Control Range15 Degrees to 55 Degre.
Thermostat Switch TypeDPST
Thermostat TypeTwo-Circuit Indoor Sing.
Voltage120 to 600V AC, 120/208.
Width4 in
