Johnson Controls M9203-BGB-2

B0787K134Q

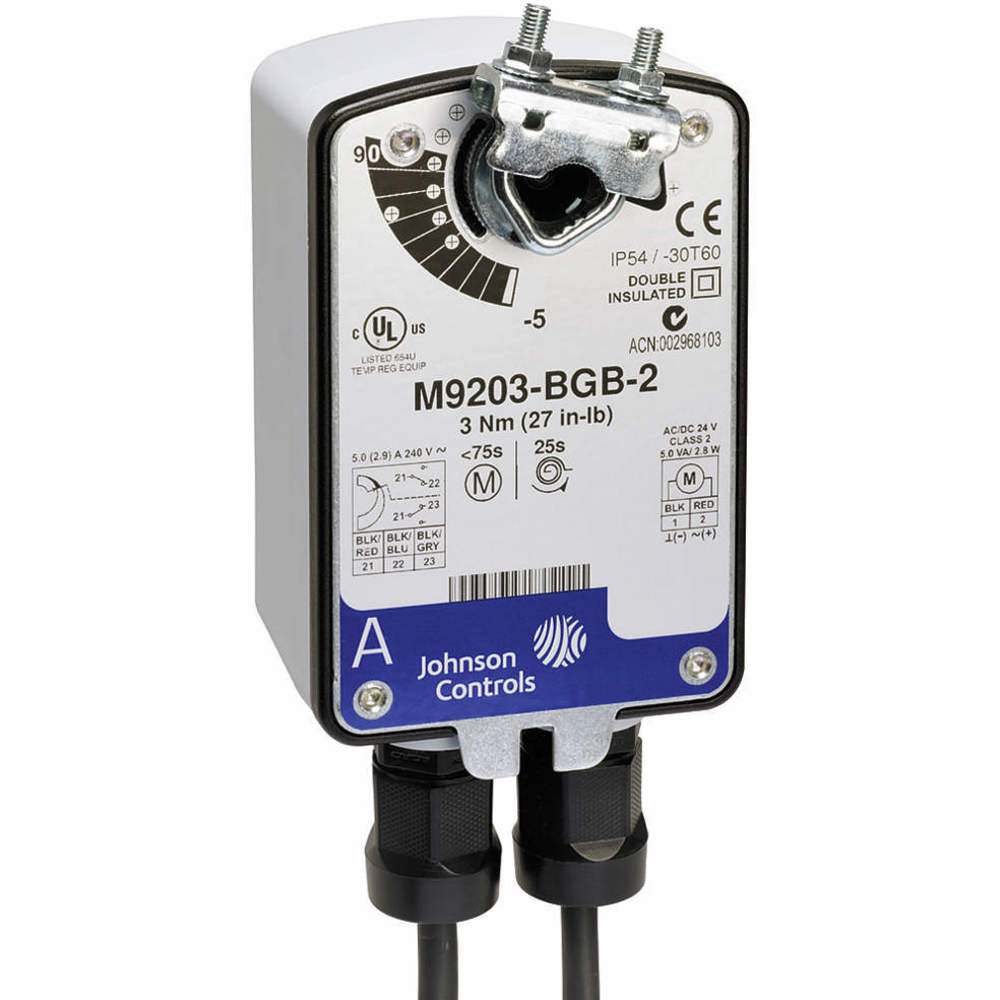

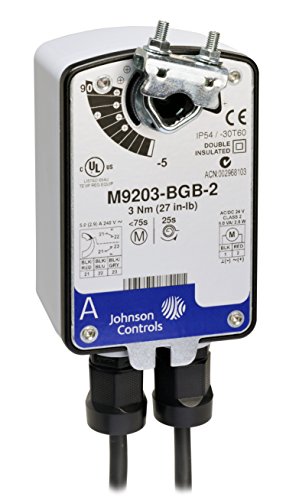

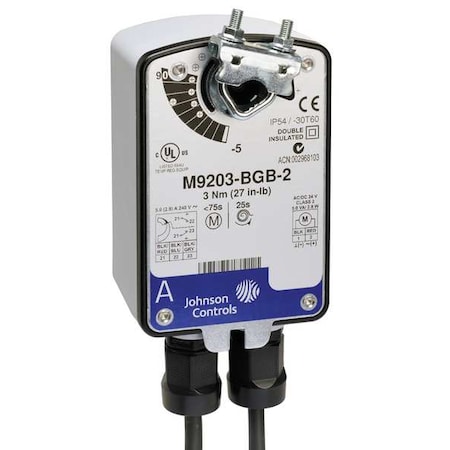

Johnson Controls M9203-BGB-2 Electric Actuator, 27 in-lb. Running Torque, -22 to 140 Degree F

Johnson Controls M9203-BGB-2 Electric Actuator, 27 in-lb. Running Torque, -22 to 140 Degree Fzoom

Attributes

Key Value
Ambient Temp. Range-22 Degrees to 140 D.
ApprovalsC-Tick, CE, CSA, UL
Control SignalTwo Position (On/Off)
Country of Origin (subj.Mexico
Date First AvailableJanuary 23, 2014
Depth2 1/4 in
Electrical ConnectionsCable
Family SeriesJohnson Controls Damper.
FeedbackNone
For Use WithDampers and Valves
Gross Weight0 lbs
Height6 3/8 in

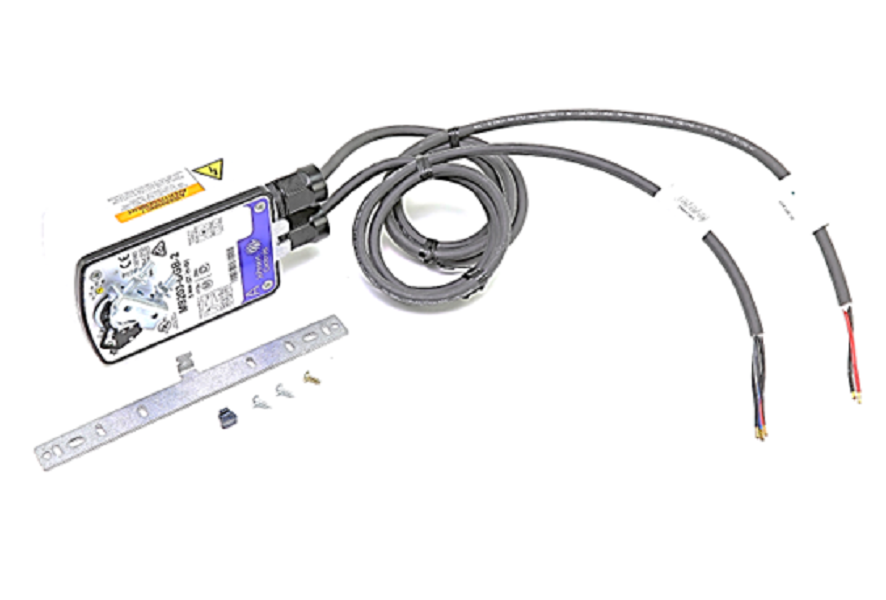

IncludesAnti Rotation Bracket
Internal Aux Switches1
IP RatingIP54
ItemElectric Actuator
Item NumberM9203-BGB-2
Item Weight3.7 Pounds
ManufacturerJohnson Controls
Manufacturer Part NumberM9203-BGB-2
Motor DirectionCW or CCW
MountingDirect Coupled
Mounting TypeDirect Mount
Net Weight2.4 lbs
Nominal Supply Voltage24 VAC, 24 VDC
Nominal Timing75 s
Package Dimensions6 x 4 x 2 inches; 3.7 P.
Power Consumption5VA, 5 VA
Product SeriesM9203
Product with faster shi.true
Replaces Honeywell Moto.Mfr. No. MS8103A1130
Rotational Stroke (Deg)95
Shaft RotationBy Wiring
Shaft SizeSquare 1/4 ", Round 1/4.
Shaft TypeSelf-Centering Clamping
Shippingundefined (Fixed Shippi.
Signal TypeOn/Off
Spring ReturnYes
Stroke Deg.90
Switch TypeSPDT
Temperature Range-22-140 ?F
TimingLess than 75 sec
Torque27 in-lb, 27 in lb
Torque Rating27 lb-in
Voltage24V AC/DC
Weight2.00
Width3 15/16 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcappusa.com2982211172.851In StockJohnson Controls172.85 @ 1
alliedcontrols.comM9203-BGB-2177.911In StockJohnson Controls177.91 @ 1
thumbzoomblackhawksupply.comM9203-BGB-2179.981In StockJohnson Controls179.98 @ 1
thumbzoomZoroG5080354183.791In Stock40Johnson Controls3.1183.79 @ 1
thumbzoomenergycontrol.comM9203-BGB-2194.371In StockJOHNSON CONTROLS194.37 @ 1
thumbzoommidwestapplianceparts.comM9203-BGB-2-JO-P198.921In StockJohnson Controls198.92 @ 1
thumbzoomgsistore.comM9203-BGB-2199.611Johnson Controls199.6 @ 1
thumbzoomhomeessentialsdirect.comM9203-BGB-2204.751In StockJohnson Controls204.75 @ 1
thumbzoomVoomi SupplyM9203-BGB-2207.911In StockJohnson Controls207.91 @ 1
thumbzoomRadwellM9203-BGB-2210.011JOHNSON CONTROLS210.0 @ 1
thumbzoomGalcoM9203-BGB-2-JHSN212.071In StockJohnson Controls2.4212.07 @ 1
thumbzoomfurnacepartsource.comM9203-BGB-2214.351In StockJohnson Controls214.35 @ 1
thumbzoomindustrialstores.comM9203-BGB-2214.6911Johnson Controls214.69 @ 1
thumbzoomsustainablesupply.comC1136716214.751In StockJohnson Controls3.1214.75 @ 1
hvacdiscountstore.comJOH--M9203-BGB-2218.0711JOHNSON CONTROLS218.07 @ 1
grainger.caJHCM9203BGB2287.440950181In StockJOHNSON CONTROLS3.1287.44095018 @ 1
thumbzoomRaptor SuppliesAD4HJH318.0425041In StockJOHNSON CONTROLS318.042504 @ 1
