- mpnT25A-1C
- brandname: JOHNSON CONTROLS
- manufacturername: JOHNSON CONTROLS

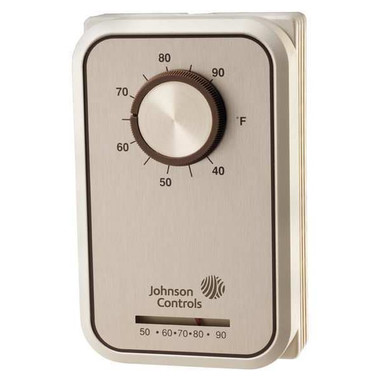

Johnson Controls T25A-1C Two Stage Line Voltage Thermostat
- Brand: Johnson Controls
- PartNumber: T25A-1C
- PackageQuantity: 1
- Manufacturer: Johnson Controls
- Label: Johnson Controls
Attributes
| Key | Value |
|---|
| Application | Heat and Cool |
| Best Sellers Rank | See Top 100 in Tools & . |
| Brand | JOHNSON CONTROLS |
| Changeover | Automatic |
| Changeover Type | Automatic |
| Color | Brown, Beige |
| Communicating | No |
| Compatible System Type | Electric Cooling, Elect. |
| Contact Rating | 120V AC, 208V AC, 240V . |
| Contact Rating Resistiv. | 16 A |
| Contact Rating Resistiv. | 8 A |
| Control Type | Exposed Dial |
| Country of Origin | USA |
| Current Stock | 3 |
| Date First Available | June 28, 2012, January . |
| Depth | 3 in |
| Differential | 0.7 Degrees F |
| Differential Type | Fixed |
| Display | Set Dial |
| Display Type | Analog |
| Electrical Connection T. | Screw Terminals |
| Enclosure Colour | Brown |
| Enclosure NEMA Rating | NEMA 1 |
| Enclosure Type | NEMA 1 |
| Family Series | Johnson Controls Thermo. |
| Full Load Amps @ 120V AC | 6 A |
| Full Load Amps @ 240V AC | 3 A |
| Full Load Amps @ 240VAC | 3 A |
| Gross Weight | 0 lbs |
| Height | 5 in |
| Housing Colour | White |
| Housing Material | Steel |
| Includes | (1) Allen Wrench, (2) M. |
| Includes Positive Off | No |
| Inductive Amps @ 120V | 10 A |
| Inductive Amps @ 208V | 10 A |
| Inductive Amps @ 240V | 10 A |
| International Shipping | No |
| Is Discontinued By Manu. | No |
| Item | Line Volt Mechanical Ts. |
| Item model number | T25A-1C |
| Item Number | T25A-1C |
| Item Weight | 1 Pounds |
| Locked Rotor Amps @ 120V | 36 A |
| Locked Rotor Amps @ 240V | 18 A |
| Manufacturer | JOHNSON CONTROLS, Johns. |
| Manufacturer Part Number | T25A-1C |
| Maximum Control Tempera. | 90 Degrees F |
| Minimum Control Tempera. | 40 Degrees F |
| Mounting Direction | Vertical |
| Mounting Location | wall |
| Mounting Type | Surface Mount |
| Mpn | T25A-1C |
| National Stock Number | 5930-00-458-8709 |
| Net Weight | 1.5 lbs |
| Number of Cooling Stages | 2 |
| Number of Heating Stages | 2 |
| Number of Poles | 1 |
| Number of Relay Inputs | 1 |
| Number of Relay Outputs | 1 |
| Number of Switches | 2 |
| Onboard Occupancy Sensor | No |
| Overall Depth | 3 in |
| Overall Height | 5 in |
| Overall Width | 3 in |
| Package Dimensions | 6.2 x 3.6 x 3.6 inches;. |
| Pilot Duty Rating | 125 VA |
| Power Method | 120 VAC, 208 VAC, 240 V. |
| Product Dimensions | 6 x 3.5 x 3.5 inches; 1. |
| Product Series | T22-T25-T26 Line Voltag. |
| Product with faster shi. | true |
| Programmability | Non-Programmable |
| Remote Control Functions | No Remote Control Inclu. |
| Sensor Type | Bi-Metallic Spring |
| Shipping | undefined (Fixed Shippi. |
| SKU | ZO-G6103264 |
| Stages | 2 Heat/2 Cool |
| Standards | CSA Certified, UL Listed |
| Switch Action | Open/Close on Rise |
| Switch Type | SPDT |
| System Settings | Auto |
| Temp Setting Range | 40-90 ?F |
| Temperature Differential | 1 Degrees to 1.3 Degre. |
| Temperature Readout | No |
| Temperature Scale | Fahrenheit/Celsius |
| Thermostat Control Range | 40 Degrees to 90 Degre. |
| Thermostat Item | Line Voltage Mechanical. |
| Thermostat Programmable | No |
| Thermostat Type | Line Voltage |
| Thermostat Voltage | 120 to 277V AC |
| UPC | 78502837231 |
| Voltage | 120/208/240/277VAC, 120. |
| Weight | 1.53 |
| Wi-Fi Enabled | No |
| Width | 3 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | sustainablesupply.com | C1134739 | 254.8 | 1 | 2 | | Johnson Controls | 1.32 | 254.8 @ 2 |
 | blackhawksupply.com | T25A-1C | 288.45 | 1 | 2 | | Johnson Controls | | 288.45 @ 2 |
 | Voomi Supply | T25A-1C | 292.64 | 1 | 2 | | Johnson Controls | | 292.64 @ 2 |
 | cappusa.com | 499397 | 301.06 | 1 | 2 | | Johnson Controls | | 301.06 @ 2 |
 | Zoro | G6103264 | 303.99 | 1 | 19 | | Johnson Controls | 1.32 | 303.99 @ 2 |
 | homeessentialsdirect.com | T25A-1C | 320.82 | 1 | 2 | | JOHNSON CONTROLS | | 320.82 @ 2 |
 | simsupply.com | ZO-G6103264 | 359.84 | 1 | 3 | | Johnson Controls | | 359.84 @ 2 |
 | Galco | T25A-1C-JHSN | 363.31 | 1 | 2 | | Johnson Controls | 1.5 | 363.31 @ 2 |
| Kele | T25A-1C | 437.84 | 1 | 2 | | Johnson Controls | | 437.84 @ 2 |
| grainger.ca | JHCT25A1C | 458.88358544 | 1 | 2 | | JOHNSON CONTROLS | 1.32 | 458.88358544 @ 2 |
