Killark B7NFD26A

Killark B7NFD26A

mpn:
B7NFD26A
brand:
Killark-Hubbell Electrical Products
manufacturer:
Killark-Hubbell Electrical Products
MPN:
B7NFD26A
Weight:
25.2
Weight:
25.2 LB
Preferred Price:
2943.51
Price:
2943.51
Min Simple Price:
1663.0
Absolute Min Price:
2361.46
Min Price:
2361.46
Dimensions:
[15.0, 11.0, 11.0]
qty:
21
simpleSku:
jExOTE:::B7NFD26A
sku:
jExOTE::NS:B7NFD26A@y0
condition:
11
seller:
Zoro
amzMan:
killark
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Action, Action:3P
Actuator, Actuator:Rotary handle
Amperage Rating60
Amperage Rating:, Amps60 A
ApplicationThe PRISM B7 Series of non-fused disconnect switches are used: in locations made hazardous due to the presence of flammable gasses or vapors or ignitable dusts, fibers, and flyings;outdoors or indoors in damp, wet, and dirty locations;in areas where frequent washdowns, heavy rain, or water spray routinely occurs.
Brand, ManufacturerKillark
Catalog Number, Item Number, Manufacturer Part NumberB7NFD26A
CategorySafety Switch
Contact Form3PST
Country of OriginUnited States, US
Country of Origin (subject to change)Finland
Current Rating60 A, 63 A, 63/60
Depth7 13/16 in
Enclosure, Enclosure:Aluminum junction box
Environmental Conditions, Environmental Conditions:Wet and hazardous locations
Family SeriesKillark Disconnect Switches, B7NFD Series, Killark-Hubbell Electrical Products Disconnect Switches, B7NFD Series
Frequency Rating60 HZ
Fusible / Nonfusible, Protection MethodNonfusible
Gross Weight0 lbs
Height13 1/16 in
HP20 hp at 240V AC, 40 hp at 480V AC, 40 hp at 600V AC
IncludesAdder
ItemSingle Throw Hazardous Location Safety Switch
Item TypeNon-Fused Disconnect
Made in USAYes
ManufacturerKillark, a Hubbell affiliate, Killark-Hubbell Electrical Products, Killark Electrical Products
MaterialAluminum, Aluminum, Copper Free (less than 4/10 of 1%)
Material:Copper-Free Aluminum
Max HP 120V 1P3 hp
Max HP 120V 1P, Number of Poles, Number Of Poles:, Phase, Poles3
Max HP 230/240V 3PH20, 20 hp
Max HP 240V 1P7.5 hp, 7.5
Max HP 460/480V 3PH, Max HP 600V 3PH40
Max HP 460/480V 3PH, Max HP 600V 3PH40 hp
MountingWall, Wall Mount
Mounting:Ductile mounting lugs
NEMA RatingNEMA 3;NEMA 4;NEMA 4X;NEMA 7;NEMA 9, 3, 4, 4X
Net Weight11 lbs
Neutral AssemblyNot Available
Number of Wires3 Wire, No Neutral
Operator TypeSelector - Yellow
Product SeriesB7NFD
Product TypeHazardous Location Safety Switch
Safety RatingClass I, Div. 1 & 2, Groups B,C,D, Class l, Zones 1 & 2, Groups llB+ H2, llA, Class II, Div. 1 & 2, Groups E,F,G, Class III
Size, Size:13-1/6" H x 8-1/8" W x 7-13/16" D
Special FeaturesSuitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
Standard, Standard:, StandardscCSAus
Sub Brand, Sub Brand:PRISM
Type:Aluminum compact non-fused disconnect switch
UNSPSC39122205
UPC783936009766
Voltage600V
Voltage Rating600 VAC maximum, 230 VDC
Voltage Rating:600//230 VAC//VDC
Width8 1/8 in

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomZoroG21962751663.01663.01In Stock23Killark22.971663.0 @ Qty: 1+
thumbzoomgordonelectricsupply.comB7NFD26A2115.02115.01In Stock380KILLARK2115.0 @ Qty: 1+
thumbzoomGalcoB7NFD26A-KLRK2277.642277.641In StockKillark11.02277.64 @ Qty: 1+
Dale-ElectricB7NFD26A3381.953381.951In StockKillark Electrical Products3381.95 @ Qty: 1+
thumbzoomRaptor SuppliesAJ2HHL4510.3843984510.3843981In StockKILLARK4510.384398 @ Qty: 1+
thumbzoomcrescentelectric.com6072465979.415979.411In StockKillark5979.41 @ Qty: 1+
B01AD046NS
1914.68 USD
Killark B7NFD26A

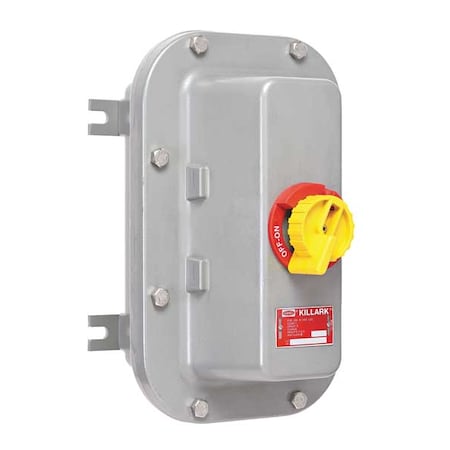

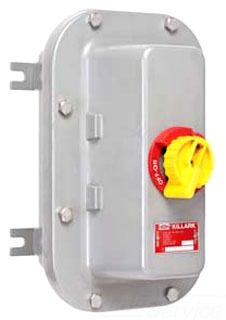

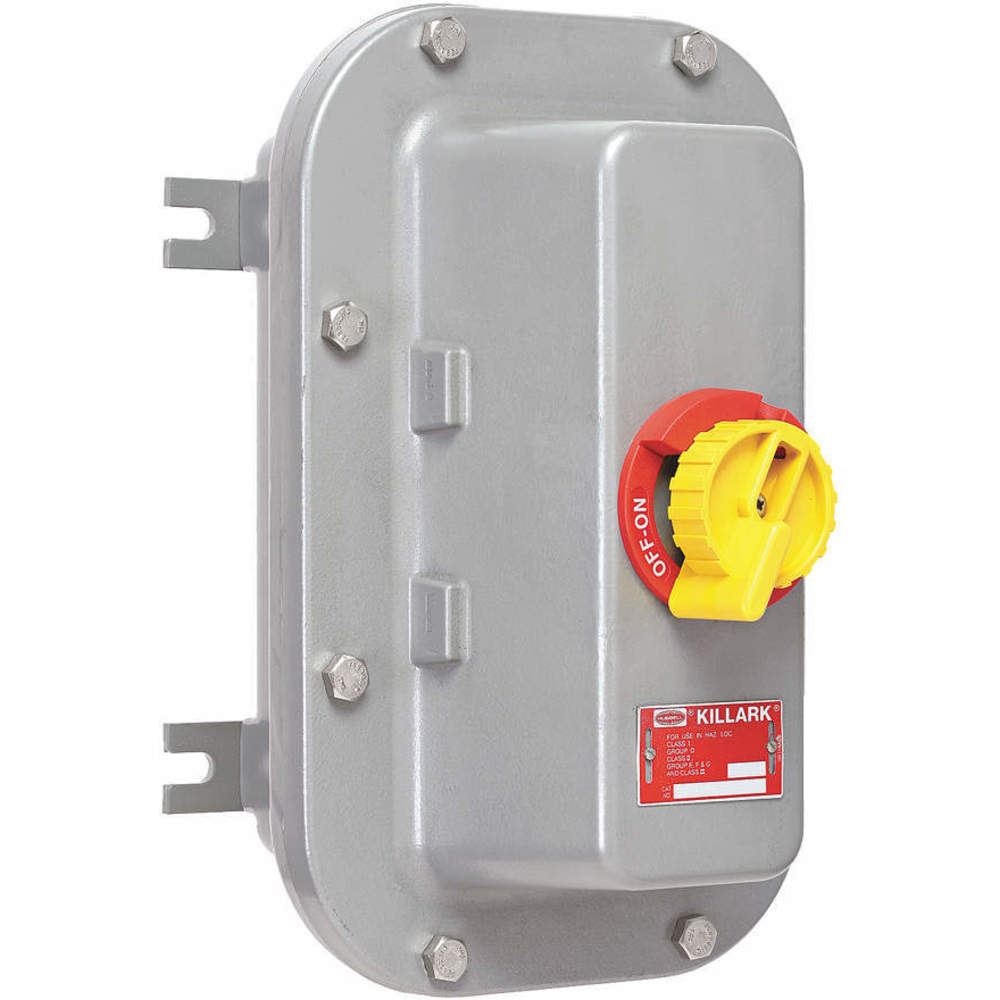

Killark B7NFD26A Hazardous Location Safety Switch, Non-Fused, 60 Amp, 600V, 3 Phase

Killark B7NFD26A Hazardous Location Safety Switch, Non-Fused, 60 Amp, 600V, 3 Phasezoom
