KM SYSTEMS KM32TSS16ESCLPL09

B09HVC6D3S

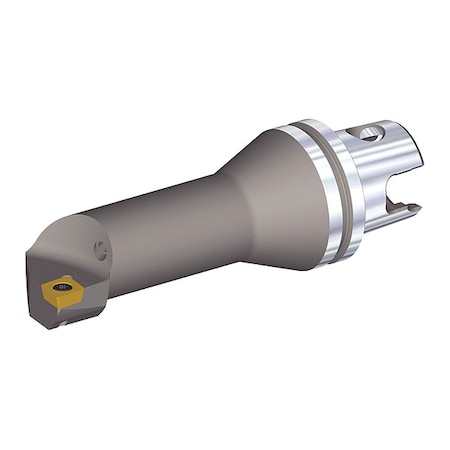

KM SYSTEMS KM32TSS16ESCLPL09 Indexable Cutting Head,CP,20.00mm

KM SYSTEMS KM32TSS16ESCLPL09 Indexable Cutting Head,CP,20.00mmzoom

Attributes

Key Value
ANSI CodeKM32TSS16ESCLPL09
Approach Angle95 Degrees
Center to Cutting Tip11.00mm
Compatible HardwareScrew Clamp
Connection SizeKM32TS
Coolant FedCoolant Through
Cutting ApplicationBoring
Cutting DirectionLeft Hand
Insert Clearance Angle11 Degrees
Insert Cutting Edge Len.9.67mm
Insert Holding TypeScrew On
Insert Shape80 Degrees Diamond
Insert Size09T308 (32.52)
Insert StyleCP
ISO NumberKM32TSS16ESCLPL09
ItemIndexable Cutting Head .
Max. Bore Depth56.00mm
Min. Bore Dia.20.00mm
Number of Coolant Holes1
Overall Length89.95mm
Rake0 Degrees Axial, 3 Deg.
Shank Dia.32.00mm
Side Cutting Edge Angle-5 Degrees
StandardsISO 26622

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3571055454.991In StockKm Systems0.35454.99 @ 1
