| ANSI Code | KM40TSS25ESDUPL11 |
| Approach Angle | 93 Degrees |
| Center to Cutting Tip | 17.00mm |
| Compatible Hardware | Screw Clamp |
| Connection Size | KM40TS |
| Coolant Fed | Coolant Through |
| Country of Origin (subject to change) | United States |
| Cutting Application | Boring |
| Cutting Direction | Left Hand |
| Insert Clearance Angle | 11 Degrees |
| Insert Cutting Edge Length | 11.63mm |
| Insert Holding Type | Screw On |
| Insert Shape | 55 Degrees Diamond |
| Insert Size | 11T308 (32.52) |
| Insert Style | DP |
| ISO Number | KM40TSS25ESDUPL11 |

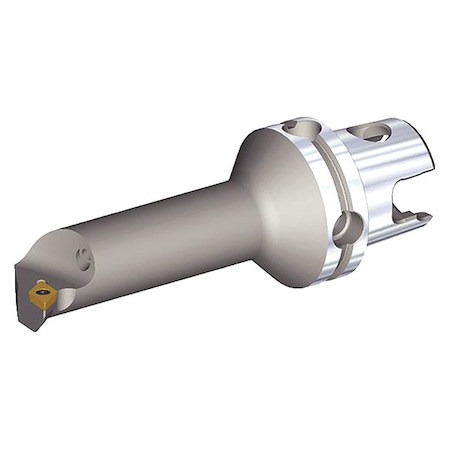

| Item | Indexable Cutting Head Unit |
| Max. Bore Depth | 55.09mm |
| Min. Bore Dia. | 32.00mm |
| Number of Coolant Holes | 1 |
| Overall Length | 94.95mm |
| Rake | 0 Degrees Axial, 0 Degrees Radial |
| Shank Dia. | 40.00mm |
| Side Cutting Edge Angle | -3 Degrees |
| Standards | ISO 26622 |
