Kyocera WNMG433KGCA315

B077315TYB

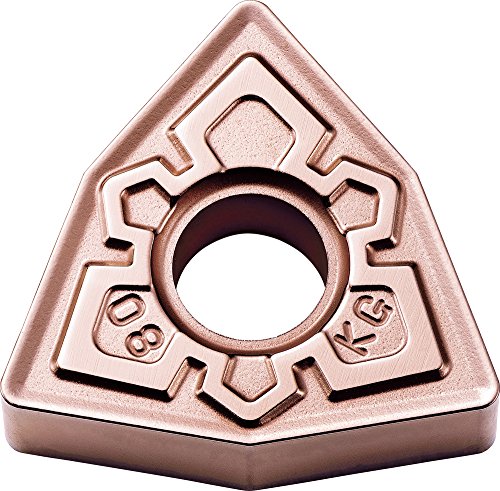

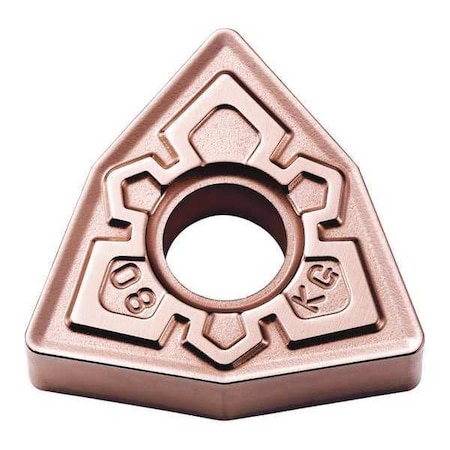

KYOCERA WNMG433KGCA315 Turning Insert for Cast Iron, CA315 Grade, Carbide, KG Chip Breaker, WNMG, 0.047" Corner Radius, Neutral, 0.5000" IC, TiCN/Al2O3

KYOCERA WNMG433KGCA315 Turning Insert for Cast Iron, CA315 Grade, Carbide, KG Chip Breaker, WNMG, 0.047" Corner Radius, Neutral, 0.5000" IC, TiCN/Al2O3zoom

Attributes

Key Value
ANSI CodeWNMG433KGCA315
ANSI NumberWNMG433KG-CA315
Cast Iron (K) Compatibi.Yes
Chip-BreakerYes
Chip-Breaker CodeKG
Chip-Breaker StyleDouble Sided
Clearance Angle0 Degrees
CoatingTiCN/Al2O3
Coating ProcessCVD
Corner Radius3/64 in
Country of Origin (subj.Japan
Cutting ApplicationTurning
Cutting DirectionNeutral
FeaturesCrack Resistant
Finish - MachiningTiCN+Al2O3+TiN
For Use WithToolholders, Boring Bars
GradeCA315
Hardened (H) Compatibil.No
Included Angle80 Degrees
Inscribed Circle1/2 in
Insert ApplicationRoughing
Insert CodeWNMG433
Insert Holding TypeStraight Hole
Insert MaterialCarbide
Insert ShapeTrigon
Insert Size433
Insert StyleWNMG
Insert Thickness0.1875"
ISO NumberWNMG080412KG
ItemTurning Insert
Manufacturer GradeCA315
MaterialCarbide
Material - MachiningCarbide
Measurement SystemFractional Inch
Mounting Hole Dia.0.203"
Mounting StyleClamp
No. of Edges6
Non Ferrous (N) Compati.No
Nose Radius0.0469"
Number of Cutting Edges6
Primary Material Applic.Cast Iron
Primary Material Applic.K
RakeNegative
Relief Angle0 Degrees
Secondary Material Appl.Cast Iron
Secondary Material Appl.K
ShapeTrigon
Stainless (M) Compatibi.No
Steel (P) CompatibilityNo
Super Alloy (S) Compati.No
Thickness3, 3/16 in
Through Hole Inside Dia.0.2031 in
Workpiece CompatibilityCast Iron (K)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG73861308.9610In Stock13Kyocera0.248.96 @ 10
thumbzoomsustainablesupply.comC278689312.651In StockKyocera0.2412.65 @ 1
Grainger53MD23108.01In StockKYOCERA108.0 @ 1
