Leeson 101021.00

B00EPKPOV6

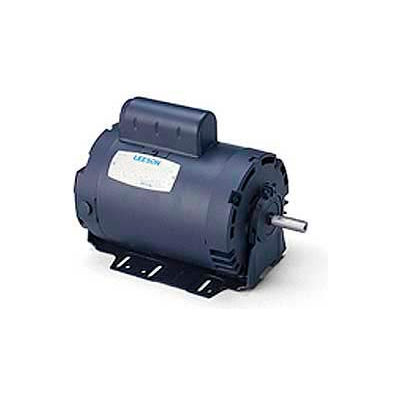

Leeson 101021.00 Variable Torque HVAC Motor, 1 Phase, S56H Frame, Rigid Mounting, 1/3HP, 1800 RPM, 115V Voltage, 60/60Hz Fequency

Leeson 101021.00 Variable Torque HVAC Motor, 1 Phase, S56H Frame, Rigid Mounting, 1/3HP, 1800 RPM, 115V Voltage, 60/60Hz Fequencyzoom

Attributes

Key Value
AMBIENT TEMP C40C
Amperage Rating5/4.6 A
Application TypeGeneral Purpose HVAC Mo.
ApprovalsCSA, UL
Bearing TypeBall, 12.27
BRANDLeeson
CategoryElectric Motor
Class/GroupC4S46DJ1
CompositionSteel
ConstructionRolled Steel
Description:..1/3-.15HP..1725/1140R.
Dimensions12.27 in L x 6.5 in W x.
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Efficiency64
ENCLOSUREDP
EnclosureODP, Open, Drip Proof
Enclosure TypeDP
Estimated Weight26.00
Family SeriesLeeson Motors, HVAC Ser.
FL Amps5&4.6
FL Efficiency64
FRAME56
Frame56H, S56H
Frame MaterialRolled Steel
Frame RemarksDOUBLE SPEED, Resilient.
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
HERTZ60
HORSEPOWER1/3
Horsepower1/3 hp, 0.33/0.15 hp
HP0.33/0.15, 0.33
Hz60
Insulation ClassB, Class B
Item ConditionFACTORY NEW
Item Number101021.00
KW0.25
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number101021.00
MANUFACTURERS PART NUMB.101021.00
MaterialRolled Steel
MFG Part #:101021.00
Model NumberC4S46DJ1
MOTOR RPM 60Hz1725/1140
MountingResilient Mount
mountingResilient Base
MOUNTINGResilient Base
Mounting TypeResilient Base
NEMA FrameS56H
Net Weight26 lbs
Nominal Voltage120 VAC
Number of Poles4, 6, 4/6
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length12.27 "
Part Number101021.00
Phase1, 1 ph
PHASE1
Product SeriesHVAC
Product TypeFractional HP (HVAC)
RATED RPM1725/1140
RotationSelective CCW
RPM1725/1140, 1700 - 1800,.
Service Factor1
Shaft Diameter0.625, UL;CSA
Shaft Length1.88
Shaft Size0.63 in Dia x 1.88 in L
Speed1725/1140 rpm
Speed (RPM)1725
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720005279
VOLTAGE115
Voltage115, 110-120V
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply252505391.141In StockLeeson91.14 @ 1
kscdirect.comLEE 101021.00111.371In StockLEESON ELECTRIC CORPORATION111.37 @ 1
thumbzoommotorsandcontrol.comLE-101021.00112.171In StockLeeson Electric26.0112.17 @ 1
thumbzoomGalco101021.00-LEES117.3524In StockLeeson26.0117.35 @ 24
thumbzoomWalker Industrial101021-00127.1324In Stock17Leeson127.13 @ 24
thumbzoomGlobal IndustrialWBB588235283.9524In StockLeeson283.95 @ 24
AmazonTPB00EPKPOV6296.041In Stock2Leeson296.04 @ 1
thumbzoomDealers Electric101021.00310.751In StockLeeson29.0310.75 @ 1
thumbzoomRaptor SuppliesAJ2PKE696.83532751In StockLEESON696.8353275 @ 1
