Leeson 101766.00

B00EPKQ500

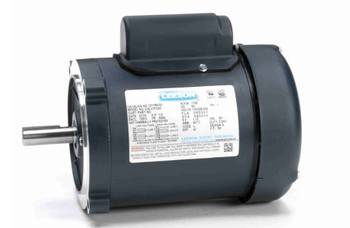

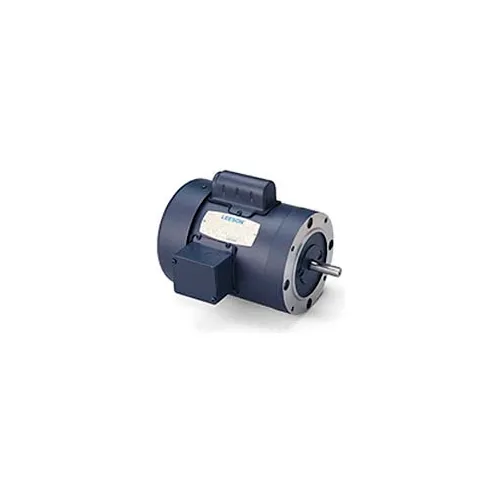

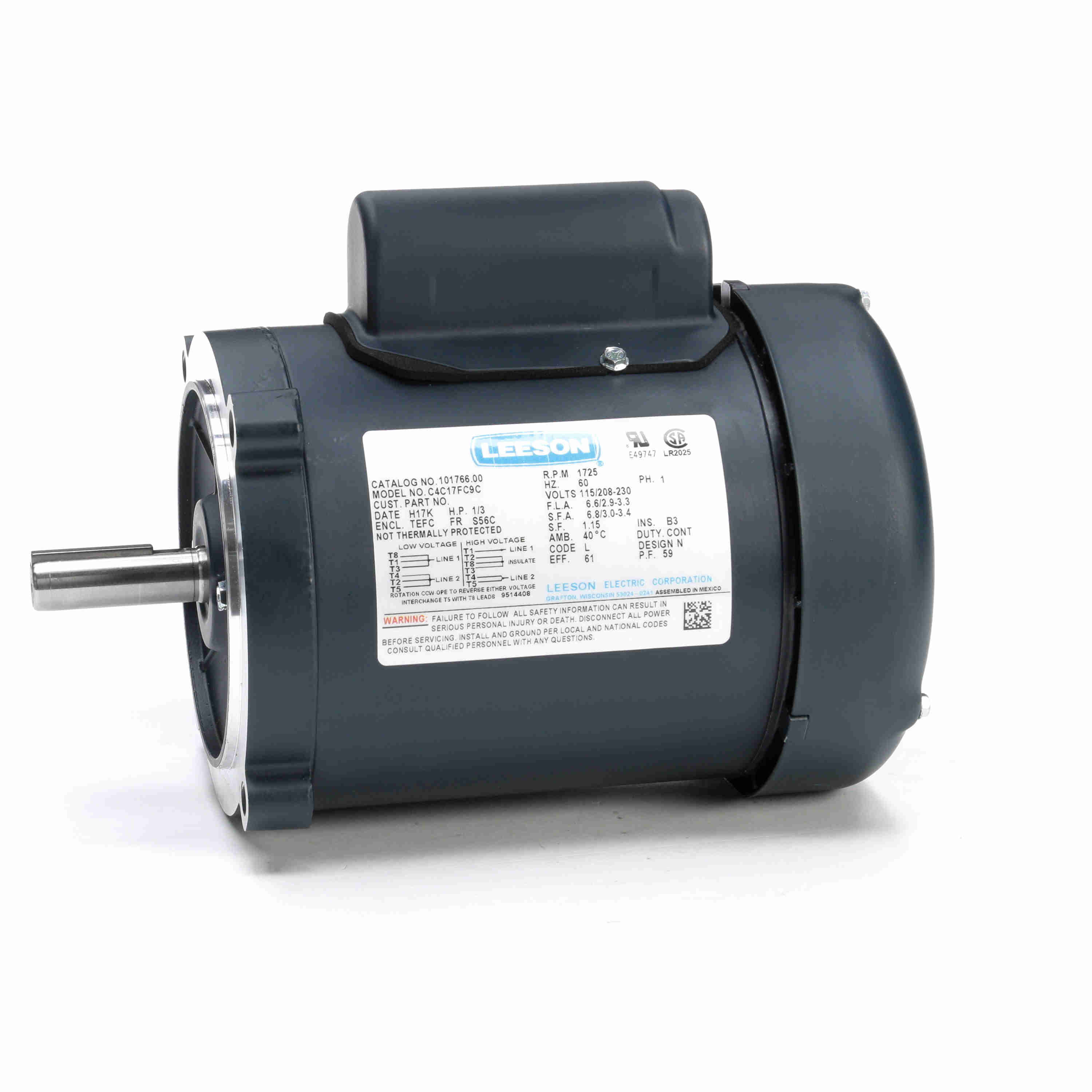

Leeson 101766.00 General Purpose C Face Motor, 1 Phase, S56C Frame, Round Mounting, 1/3HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 101766.00 General Purpose C Face Motor, 1 Phase, S56C Frame, Round Mounting, 1/3HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating6.8/3.0 to 3.4 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupC4C17FC9
CompositionSteel
ConstructionRolled Steel
Description:..1/3HP..1725RPM.S56.TE.
Dimensions9.94 in L x 7.67 in W x.
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency61
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight22.00
Family SeriesLeeson Motors, General .
FL Amps6.6/2.9-3.3
FL Efficiency61
FrameS56C, 56C, 48
Frame MaterialRolled Steel
Frame RemarksFOOTLESS
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1/3 hp, 0.33 hp
HP0.33, 1/3
Hz60
Ins. ClassB
Insulation ClassB, Class B
ItemGeneral Purpose Motor
Item ConditionFACTORY NEW
Item Number101766.00
KW0.25
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number101766.00
MaterialRolled Steel
MFG Part #:101766.00
Model NumberC4C17FC9
Motor ApplicationGeneral Application
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Thermal ProtectionNone
Motor TypeCapacitor Start
MountingFOOTLESS
mountingC-face (NO base)
Mounting TypeC-Face Less Base, Round
NEMA FrameS56C
Net Weight22 lbs
No. of Speeds1
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length9.94 "
Overload ProtectionNone
Part Number101766.00
Phase1
Product SeriesGeneral Purpose
Product TypeGeneral Purpose
RotationSelective CCW
RPM1,800 RPM, 1700 - 1800,.
Service Factor1.15, 1.149
Shaft Diameter0.625, UL;CSA
Shaft Length1.88
Shaft Size5/8 in Dia
Special Features4-Pole, N NEMA Design
Speed1725 rpm
Speed (RPM)1725
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720105771
Usable @ 208VYes
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230
Weight16 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG610080949193.991In StockLeeson16.46193.99 @ 1
thumbzoomelectricmotorwholesale.com101766237.01In StockLEESON237.0 @ 1
AmazonTPB0773VBNWQ298.381In Stock5Leeson Electric298.38 @ 1
thumbzoomcbtcompany.com101766.00308.061In StockLeeson Electric308.06 @ 1
thumbzoomMRO Supply2525097314.231In StockLeeson314.23 @ 1
industrialmotors.com101766.00319.213LEESON ELECTRIC319.2 @ 1
thumbzoomPurvis101766LEE326.651In StockLEESON326.65 @ 1
thumbzoomcshincorporated.com101766.00331.81In StockLeeson16.0331.8 @ 1
thumbzoomGlobal IndustrialWBB221711389.951In StockLeeson389.95 @ 1
thumbzoomDealers Electric101766.00405.471In StockLeeson16.0405.47 @ 1
us.rs-online.com73396624436.61In StockLeeson436.6 @ 1
thumbzoommotorsandcontrol.comLE-101766.00445.381187Leeson Electric22.0445.38 @ 1
steinerelectric.comPDW~6585463446.01In StockLEESON446.0 @ 1
thumbzoomGalco101766.00-LEES448.41In StockLeeson22.0448.4 @ 1
thumbzoomWalker Industrial101766-00504.771In Stock10Leeson504.77 @ 1
kscdirect.comLEE 101766.00546.911In StockLEESON ELECTRIC CORPORATION546.91 @ 1
thumbzoomRaptor SuppliesAJ2PME571.08875851In StockLEESON571.0887585 @ 1
thumbzoompumpproducts.com101766.00576.291In StockLeeson576.29 @ 1
