Leeson 103388.00

B00EPKXATE

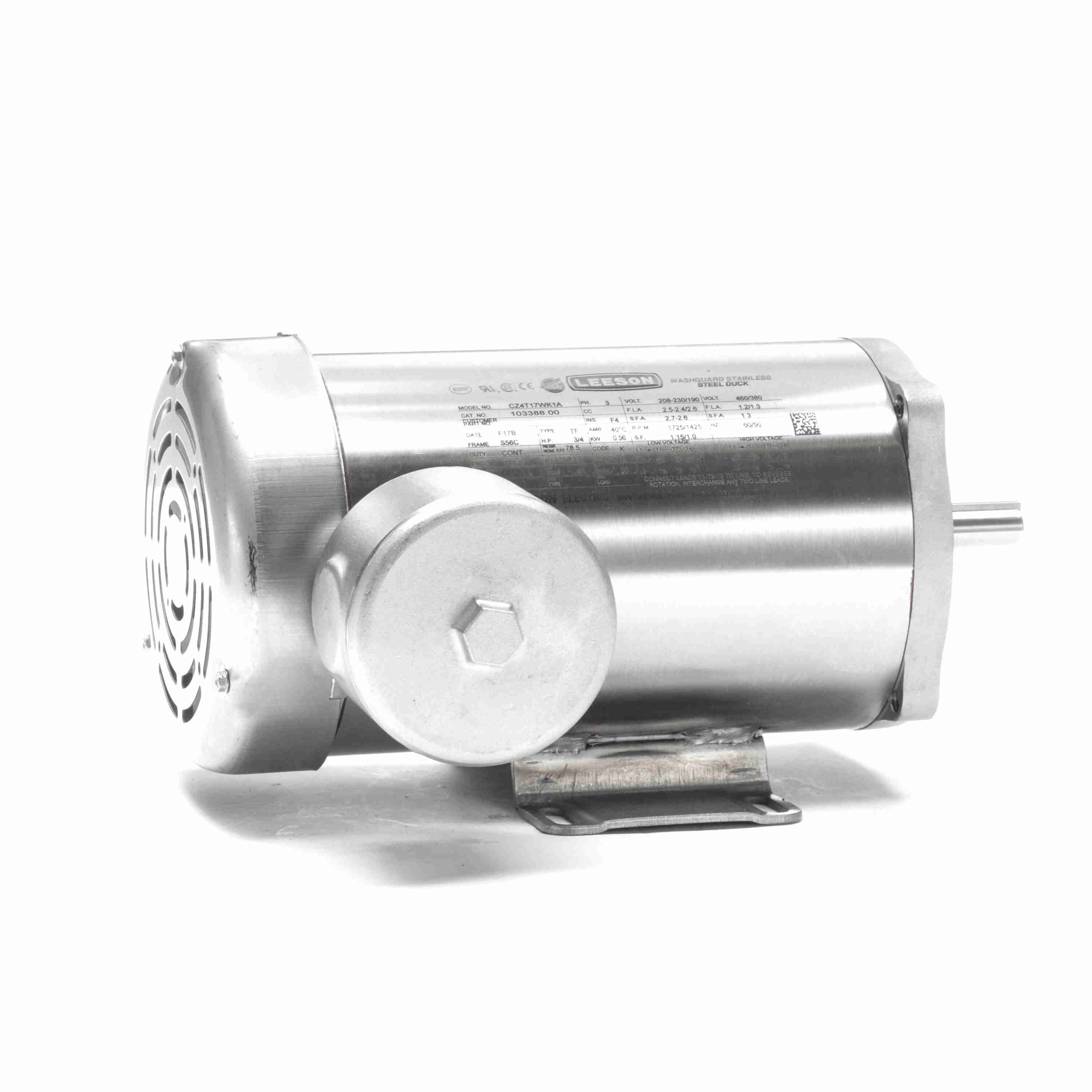

Leeson 103388.00 Premium Washguard Motor, 3 Phase, S56C Frame, Rigid Mounting, 3/4HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 103388.00 Premium Washguard Motor, 3 Phase, S56C Frame, Rigid Mounting, 3/4HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating2.5 to 2.4/1.2 A
Amps2.5-2.4/1.2
ApprovalsCSA, UL
Bearing TypeDouble Sealed, Ball
BearingsBall
CategoryElectric Motor
Class/GroupCZ4T17WK1
CompositionSteel
ConstructionStainless Steel
Country of Origin (subj.United States
Description:..3/4HP..1800RPM.S56.TE.
Dimensions12.5 in L x 6.51 in H
Drive End Bearing Size6204
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency78.5, 78.5%
Efficiency %77 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialStainless Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight28.00
Family SeriesLeeson Motors, Premium .
FL Amps2.5-2.4/1.2&2.6/1.3
FL Efficiency77
FrameS56C, 56C
Frame MaterialStainless Steel
Frame RemarksWASHDOWN, FOOTED, STAIN.
Frequency60
Frequency Rating60 Hz
Full Load Current2.3 A
Gross Weight0 lbs
Hertz60
Horsepower0.75 hp, 3/4 hp
HP3/4, 0.75
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
Item Number103388.00
KW0.56
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number103388.00
MaterialStainless Steel
Maximum Ambient Tempera.40? C
MFG Part #:103388.00
Model NumberCZ4T17WK1
Motor Shell Length8.00"
MountingFoot Mount, Rigid Base
mountingC-face w/ rigid base
Mounting TypeC-Face Less Base, C-Fac.
NEMA Frame56HC
Net Weight28 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6204
Opp. Drive End Bearing .Ball
Overall Length12.5 ", 12.50"
Part Number103388.00
Phase3, 3 ph
Product SeriesPremium
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM1,800 RPM, 1700 - 1800,.
Service Factor1.15
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight41 lbs.
Special FeaturesWashdown Duty Motors
Speed1725 rpm
Speed (RPM)1725
Supplier:LEESON ELECTRIC CORPORA.
TypeWASHDOWN
UPC:691720105825
Voltage208-230/460, 208V, 230V.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com103388601.01In StockLEESON601.0 @ 1
AmazonTPB0773TZ5W5701.781In Stock3Leeson Electric701.78 @ 1
thumbzoomemotorpro.com103388.00919.331In StockLeeson41.0919.33 @ 1
thumbzoomMRO Supply25252111065.31In StockLeeson1065.3 @ 1
thumbzoomZoroG24802531111.071In Stock5Leeson1111.07 @ 1
kscdirect.comLEE 103388.001114.61In StockLEESON ELECTRIC CORPORATION1114.6 @ 1
thumbzoomWalker Industrial103388-001272.351In Stock17Leeson1272.35 @ 1
thumbzoomDealers Electric103388.001374.641In StockLeeson41.01374.64 @ 1
thumbzoomGalco103388.00-LEES1476.331In StockLeeson28.01476.33 @ 1
thumbzoommotorsandcontrol.comLE-103388.001509.9412Leeson Electric28.01509.94 @ 1
us.rs-online.com733968901538.061In StockLeeson1538.06 @ 1
cbtcompany.com103388.001672.741In StockLeeson Electric1672.74 @ 1
thumbzoomGlobal IndustrialWBB5885921833.01In StockLeeson1833.0 @ 1
thumbzoomRaptor SuppliesAJ2PRE1886.65664851In StockLEESON1886.6566485 @ 1
thumbzoompumpproducts.com103388.002048.291In StockLeeson2048.29 @ 1
