Leeson 103389.00

B00EPKHWT8

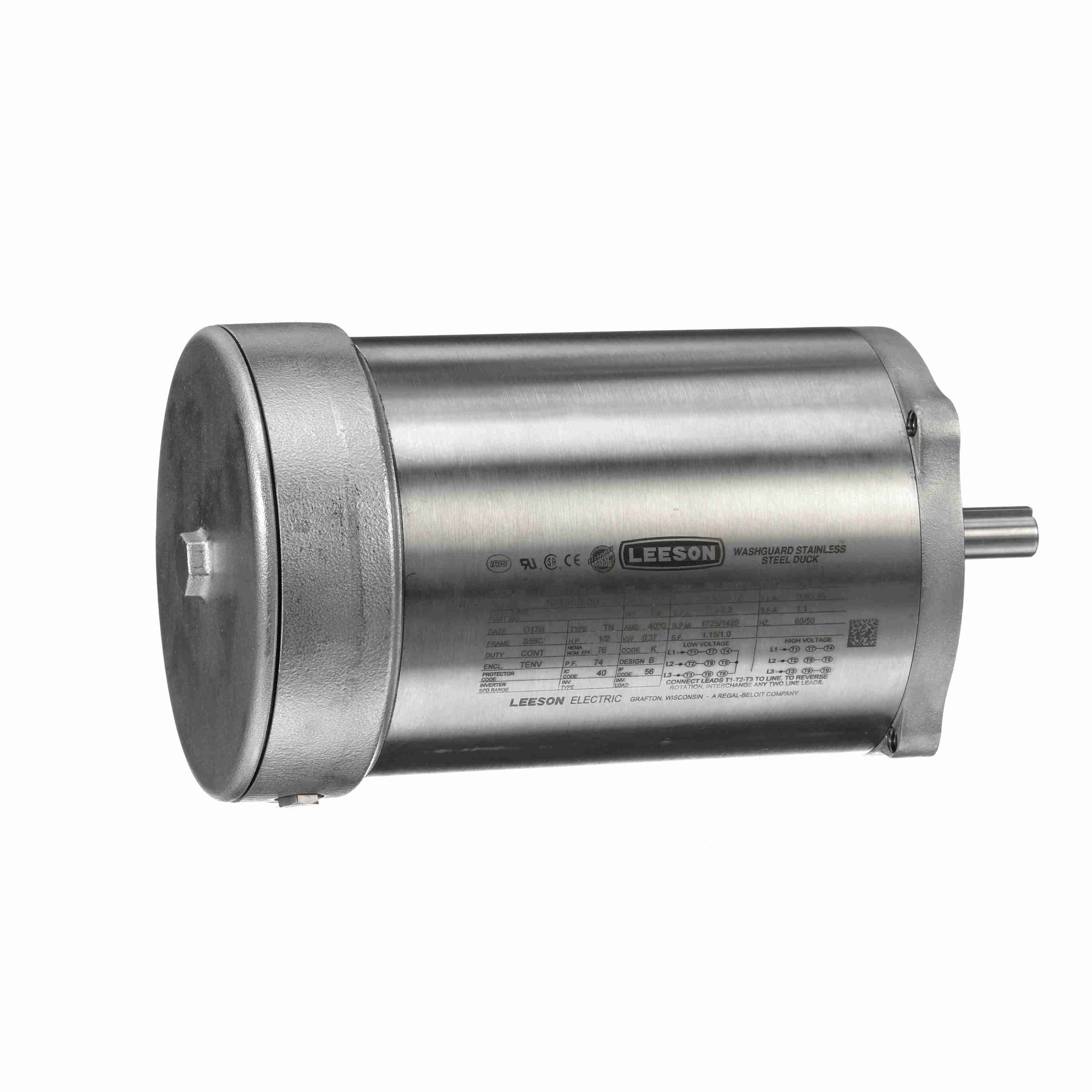

Leeson 103389.00 Premium Washguard Motor, 3 Phase, S56C Frame, Round Mounting, 1/2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 103389.00 Premium Washguard Motor, 3 Phase, S56C Frame, Round Mounting, 1/2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.CZ4T17VC4A
Amperage Rating1.9 to 1.8/0.9 A
Amps1.9-1.8/0.90
Bearing TypeBall
BearingsBall
CategoryElectric Motor
ConstructionStainless Steel
Current Rating1.9 to 1.8 ; 0.90 A
Description:1/2HP..1800RPM.S56.TENV.
Dimensions11.49 in L x 6.3 in H
Drive End Bearing Size6204
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency76, 76 %, 76.0%
EnclosureTENV
Enclosure MaterialStainless Steel
Enclosure TypeTENV (Totally Enclosed .
Estimated Weight30.00
FL Amps1.9-1.8/0.9&1.9/0.95
FL Efficiency76
FrameS56C, 56C
Frame MaterialStainless Steel
Frame RemarksWASHDOWN, STAINLESS, FO.
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower0.5 hp
Horsepower Rating0.50 HP
HP0.50, 0.5, 1/2
Hz60
Insulation ClassClass F, F
Insulation TypeClass F
Item ConditionFACTORY NEW
KW0.37
ManufacturerLeeson Electric, LEESON.
MaterialStainless Steel
Maximum Ambient Tempera.40? C
MFG Part #:103389.00
Motor Shell Length6.75"
MountingRound, FOOTLESS
mountingC-face (NO base)
Mounting TypeRound, Round/C-Face/Foo.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6204
Opp. Drive End Bearing .Ball
Overall Length11.49"
Package Quantity1
Part Number103389.00
Phase3, 3 Phase, 3 ph
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM1725 RPM, 1700 - 1800, .
Service Factor1.15
Shaft Diameter0.625", 0.625
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight30 lbs.
Special FeaturesService Factor - 1.15, .
Speed1725 RPM
Speed (RPM)1725
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage208-230/460 VAC
TypeSquirrel Cage Induction.
UPC Code691720153604
UPC:691720153604
Voltage208-230/460, 208V, 230V.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com103389574.01In StockLEESON574.0 @ 1
AmazonTPB0773TQ6LZ622.161In Stock2Leeson Electric622.16 @ 1
thumbzoomMRO Supply2525212811.721In StockLeeson811.72 @ 1
thumbzoomemotorpro.com103389.00874.111In StockLeeson30.0874.11 @ 1
thumbzoomGlobal IndustrialWBB588593929.01In Stock17Leeson929.0 @ 1
thumbzoomDealers Electric103389.00934.191In StockLeeson30.0934.19 @ 1
thumbzoommotorsandcontrol.comLE-103389.00999.1319Leeson Electric30.0999.13 @ 1
thumbzoomGalco103389.00-LEES1006.971In StockLeeson1006.97 @ 1
us.rs-online.com722395101022.721In StockLeeson1022.72 @ 1
kscdirect.comLEE 103389.001086.541In StockLEESON ELECTRIC CORPORATION1086.54 @ 1
thumbzoomcbtcompany.com103389.001208.631In StockLeeson Electric1208.63 @ 1
thumbzoomZoroG24869821213.991In Stock19Leeson1213.99 @ 1
thumbzoomWalker Industrial103389-001240.321In Stock10Leeson1240.32 @ 1
thumbzoomRaptor SuppliesAJ2PRF1586.6371In StockLEESON1586.637 @ 1
thumbzoompumpproducts.com103389.001686.941In StockLeeson1686.94 @ 1
