Description:

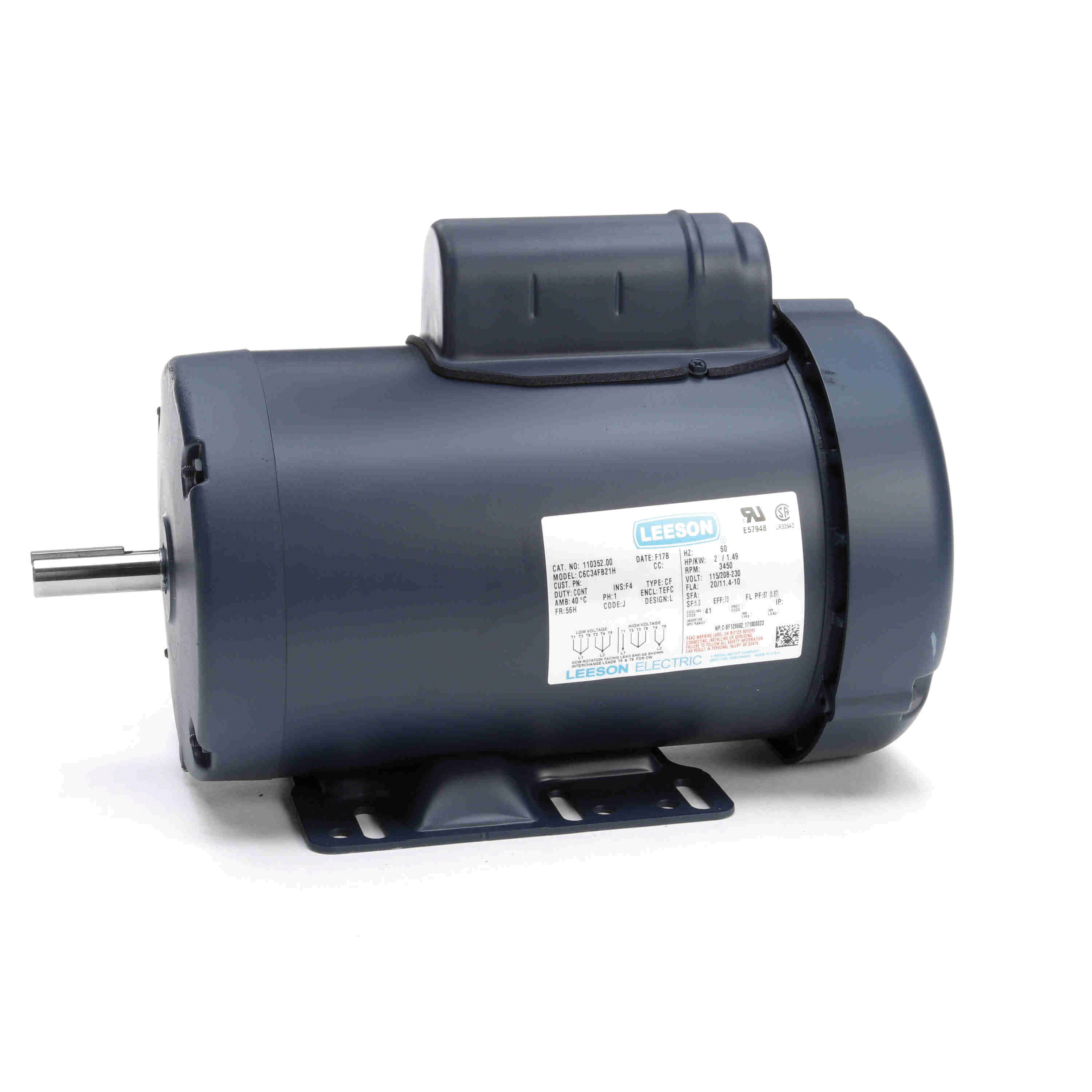

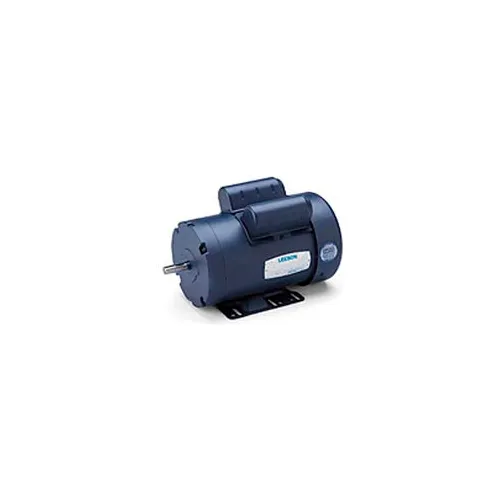

<B>General Purpose, Capacitor Start-Inductor Run Motor:</b> 2HP, 3450 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56H Frame, Rigid Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 20/11.4-10, Continuous duty, 1.0 Service Factor, No thermal protection, Efficiency: 73, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-7/8, Shaft Diameter 5/8.<p>Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.<br>Rigid base allows motor to be rigidly mounted on equipment.<br><br>
Weight:
41.0
Weight:
44.0 LB
Preferred Price:
370.53
Price:
370.53
Min Simple Price:
209.34
Absolute Min Price:
297.26
Min Price:
297.26
Dimensions:
[14.0, 14.0, 14.0]
qty:
21
simpleSku:
MzkwMQ:::110352.00
sku:
MzkwMQ::AY:110352.00@y0
condition:
11
seller:
Galco
amzMan:
leeson
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amperage Rating | 20/11.4 to 10 A |
| Application Type | Compressor Motors, Fan and Blower Motors, General Purpose AC Motors |
| Approvals | CSA, UL |
| Bearing Type | Ball |
| Category | Electric Motor |
| Class/Group, Model Number | C6C34FB21 |
| Composition | Steel |
| Country of Origin (subject to change) | United States |
| Description: | 2HP..3450RPM.56H.TEFC.115/208-230V.1PH.60HZ.CONT.NOT.40C.1.0SF.RIGID.GENER |
| Dimensions | 13.48 in L |
| Enclosure | TEFC |
| Enclosure, Enclosure Type | Totally Enclosed Fan Cooled |
| Family Series | Leeson Motors, General Purpose Series |
| Frame, NEMA Frame | 56H |
| Frequency Rating | 60 Hz |
| Gross Weight | 0 lbs |
| Horsepower | 2 hp |
| HP, Number of Poles | 2 |
| Insulation Class | Class F |
| Item Condition | FACTORY NEW |
| Item Number, Manufacturer Part Number, MFG Part #: | 110352.00 |
| Manufacturer | Leeson |
| Manufacturer, Supplier: | LEESON ELECTRIC CORPORATION |
| Material | Rolled Steel |
| Motor Type | Capacitor Start |
| Mounting Type | Foot Mount, Rigid |
| mounting, Mounting Type | Rigid Base |
| Net Weight | 41 lbs |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Speeds, Phase, Service Factor | 1 |
| Overall Length | 13.31 " |
| Overload Protection | None |
| Phase | 1 ph |
| Product Series | General Purpose |
| Rotation | Selective CCW |
| RPM | 3600, 3,600 RPM |
| Shaft Diameter | UL;CSA |
| Shaft Size | 0.63 in Dia x 1.88 in L |
| Special Features | Capacitor Start Motors |
| UPC: | 691720008454 |
| Volts | 115/208/230 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Galco | 110352.00-LEES | 209.34 | 209.34 | 1 | In Stock | Leeson | 41.0 | 209.34 @ Qty: 1+ | |
 | cbtcompany.com | 110352.00 | 242.06 | 242.06 | 1 | In Stock | Leeson Electric | 242.06 @ Qty: 1+ | ||
 | electricmotorwholesale.com | 110352 | 443.0 | 443.0 | 1 | In Stock | LEESON | 443.0 @ Qty: 1+ | ||
 | Dealers Electric | 110352.00 | 546.82 | 546.82 | 1 | In Stock | Leeson | 44.0 | 546.82 @ Qty: 1+ | |
 | Zoro | G2498368 | 801.25 | 801.25 | 1 | In Stock | 10 | Leeson | 801.25 @ Qty: 1+ | |
 | Global Industrial | WBB222348 | 829.0 | 829.0 | 1 | In Stock | Leeson | 829.0 @ Qty: 1+ | ||
 | Purvis | 110352LEE | 850.74 | 850.74 | 1 | In Stock | LEESON | 850.74 @ Qty: 1+ | ||
 | Walker Industrial | 110352-00 | 959.5 | 959.5 | 1 | In Stock | 17 | Leeson | 959.5 @ Qty: 1+ | |
| kscdirect.com | LEE 110352.00 | 1039.61 | 1039.61 | 1 | In Stock | LEESON ELECTRIC CORPORATION | 1039.61 @ Qty: 1+ | |||
 | Raptor Supplies | AJ2QCD | 1213.464447 | 1213.464447 | 1 | In Stock | LEESON | 1213.464447 @ Qty: 1+ |
