Leeson 110910.00

B00EP2DAAQ

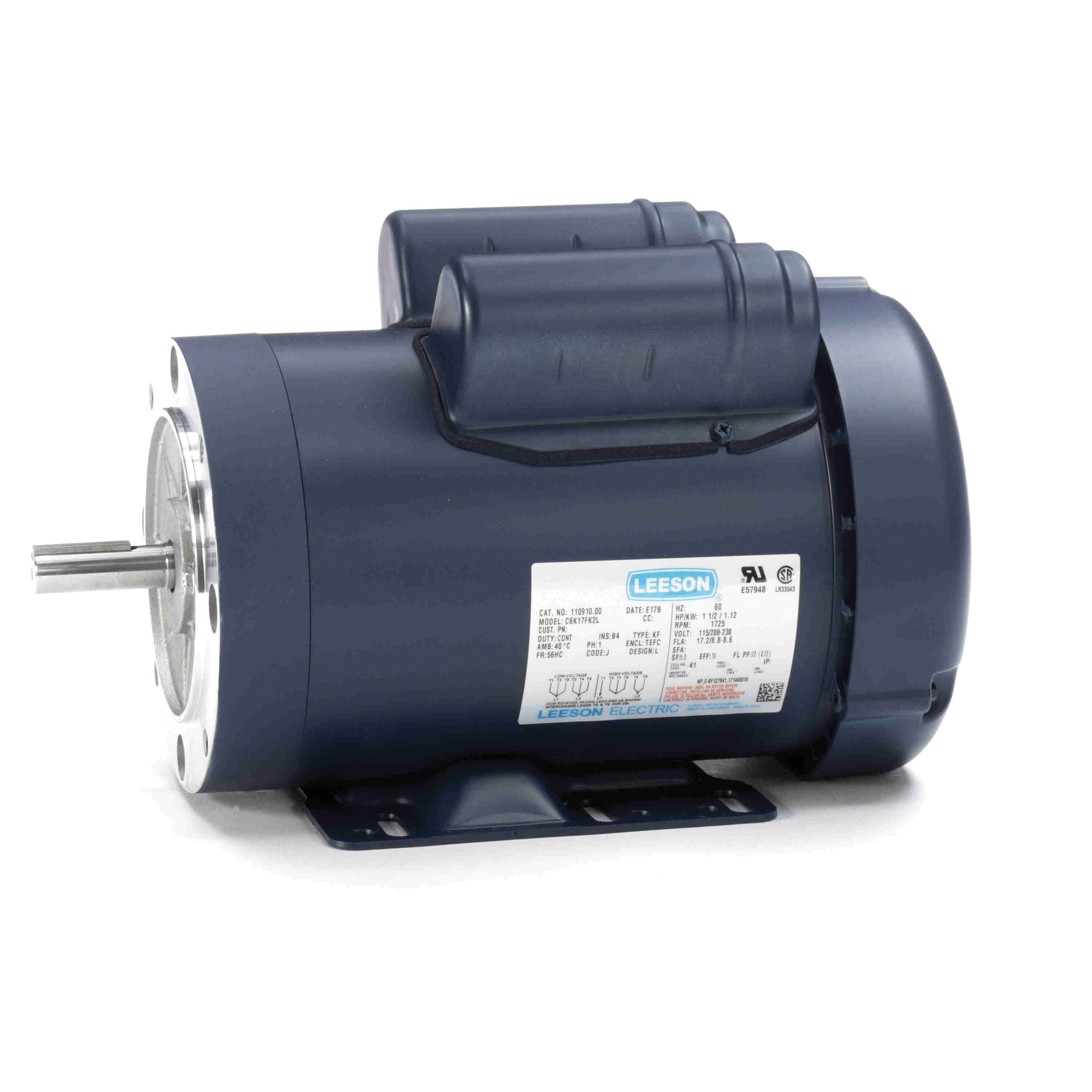

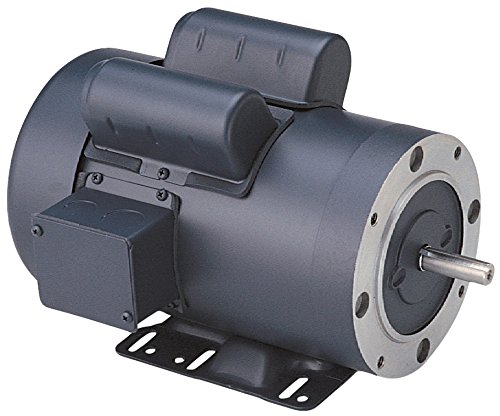

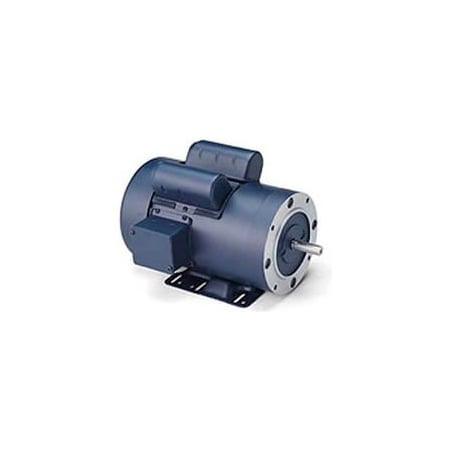

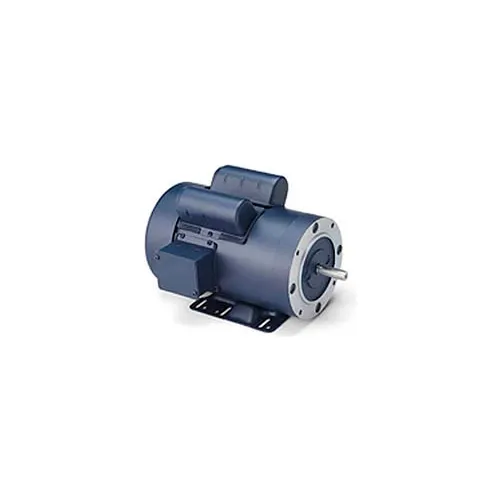

Leeson 110910.00 General Purpose C Face Motor, 1 Phase, 56HC Frame, Rigid Mounting, 1 1/2HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 110910.00 General Purpose C Face Motor, 1 Phase, 56HC Frame, Rigid Mounting, 1 1/2HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage17.2/8.8-8.6 Amps
Amperage Rating17.2/8.8 to 8.6 A
Amps17.2/8.8-8.6
Application TypeCompressor Motors, Fan .
Bearing TypeBall
BearingsBall
Catalog Number110910
CategoryElectric Motor
ConstructionRolled Steel
Description:..1 1/2HP..1725RPM.56H..
Dimensions12.98 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency79.0%, 79
EnclosureTEFC
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight39.00
FL Amps17.2/8.8-8.6
FL Efficiency79
Frame56HC
Frame MaterialRolled Steel
Frame RemarksFOOTED
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1.5 hp
HP1.5, 1.50, 1-1/2
Hz60
Insulation ClassB, Class B
Item ConditionFACTORY NEW
KW1.1
ManufacturerLeeson Electric, LEESON.
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:110910.00
Motor Shell Length7.50"
MountingFoot Mount, Rigid Base
mountingC-face w/ rigid base
Mounting TypeC-Face/Rigid Base
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length12.98"
Part Number110910.00
Phase1, 1 ph
Power1-1/2 HP
Product TypeCapacitor Start/Capacit.
RotationSelective CCW, Reversib.
RPM1700 - 1800, 1800, 1725
Service Factor1, 1.0
Shaft5/8" diam. x 1-7/8" w/ .
Shaft Diameter0.625", 0.625
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight42 lbs.
Shpg.39 lbs.
Size10.93" x 8.89" x 8.5"
Special FeaturesCapacitor Start Motors
Speed1800 RPM
Speed (RPM)1725
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720009390
Voltage115/208-230 AC, 110-120.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsurpluscenter.com10-2701404.0129Leeson404.0 @ 1
thumbzoomelectricmotorwholesale.com110910438.01In StockLEESON438.0 @ 1
AmazonTPB00EP2DAAQ501.081In Stock2Leeson501.08 @ 1
thumbzoomMRO Supply2525533612.691In StockLeeson612.69 @ 1
industrialmotors.com110910.00623.411LEESON ELECTRIC623.4 @ 1
thumbzoomemotorpro.com110910.00690.911In StockLeeson42.0690.91 @ 1
thumbzoomDealers Electric110910.00790.61In StockLeeson42.0790.6 @ 1
thumbzoomPurvis110910LEE840.181In StockLEESON840.18 @ 1
us.rs-online.com73396499852.141In StockLeeson852.14 @ 1
thumbzoommotorsandcontrol.comLE-110910.00868.41157Leeson Electric39.0868.41 @ 1
thumbzoomGalco110910.00-LEES875.171In StockLeeson875.17 @ 1
thumbzoomWalker Industrial110910-00984.21In Stock17Leeson984.2 @ 1
kscdirect.comLEE 110910.001066.371In StockLEESON ELECTRIC CORPORATION1066.37 @ 1
thumbzoomGlobal IndustrialWBB2223091089.01In StockLeeson1089.0 @ 1
thumbzoompumpproducts.com110910.001123.661In StockLeeson1123.66 @ 1
thumbzoomRaptor SuppliesAJ2QDY1199.06180551In StockLEESON1199.0618055 @ 1
thumbzoomZoroG6049370441644.01In Stock9Leeson Electric1644.0 @ 1
