Leeson 110914.00

B00EPO1O3E

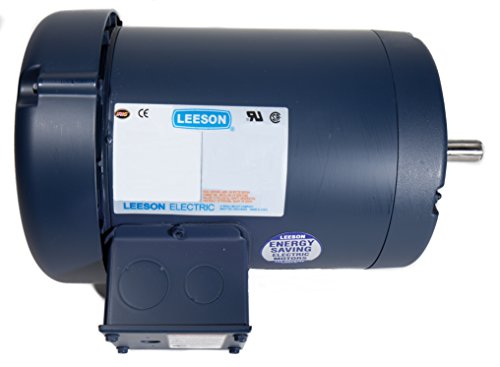

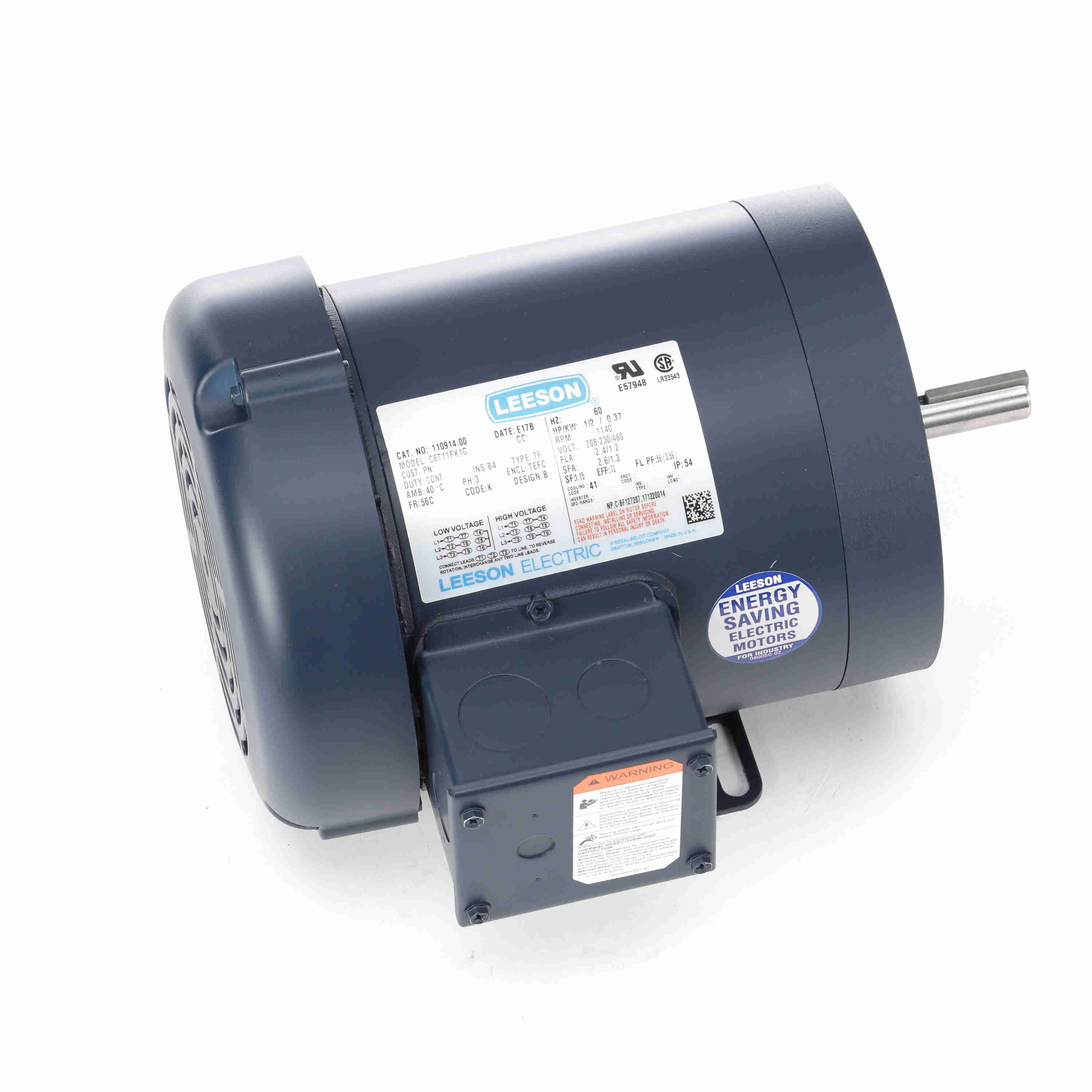

Leeson 110914.00 General Purpose C Face Motor, 3 Phase, 56 C Frame, Rigid Mounting, 1/2HP, 1200 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 110914.00 General Purpose C Face Motor, 3 Phase, 56 C Frame, Rigid Mounting, 1/2HP, 1200 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.C6T11FK1G
Amperage Rating2.4/1.2 A
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupC6T11FK1
CompositionSteel
CT Speed Range2:1
Current Rating2.4 ; 1.2 A
Description:1/2HP..1140RPM.56.TEFC..
Dimensions10.98 in L
Duty CycleContinuous
Efficiency70 %
Efficiency %70 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors, Three Ph.
Frame56C, 56
Frame RemarksFOOTED
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower0.5 hp, 1/2 hp
Horsepower Rating0.50 HP
HP0.50, 1/2
Hz60
Insulation ClassClass B
Insulation TypeClass B
Item ConditionFACTORY NEW
Item Number110914.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number110914.00
MaterialRolled Steel
MFG Part #:110914.00
Model NumberC6T11FK1
mountingC-face w/ rigid base
Mounting TypeC-Face/Rigid Base, Rigi.
NEMA Frame56C
Net Weight25 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles6
Number of Speeds1
Overall Length11.31 "
Phase3, 3 Phase, 3 ph
Product SeriesThree Phase C Face
RotationReversible
RPM1140 RPM, 1100 - 1200, .
Service Factor1.15
Shaft DiameterUL;CSA
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesService Factor - 1.15
Speed1140 RPM
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage208-230/460 VAC
TypeSquirrel Cage Induction.
UPC Code691720009437
UPC:691720009437
Voltage208-230
Volts208/230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com110914351.01In StockLEESON351.0 @ 1
AmazonTPB0773QZMHN449.891In Stock5Leeson Electric449.89 @ 1
thumbzoomDealers Electric110914.00630.341In StockLeeson28.0630.34 @ 1
us.rs-online.com72239395682.171In StockLeeson682.17 @ 1
thumbzoomGalco110914.00-LEES689.851In StockLeeson25.0689.85 @ 1
thumbzoomcbtcompany.com110914.00730.511In StockLeeson Electric730.51 @ 1
thumbzoomWalker Industrial110914-00747.331In Stock17Leeson747.33 @ 1
thumbzoomRaptor SuppliesAJ2QDZ794.33528851In StockLEESON794.3352885 @ 1
kscdirect.comLEE 110914.00809.731In StockLEESON ELECTRIC CORPORATION809.73 @ 1
