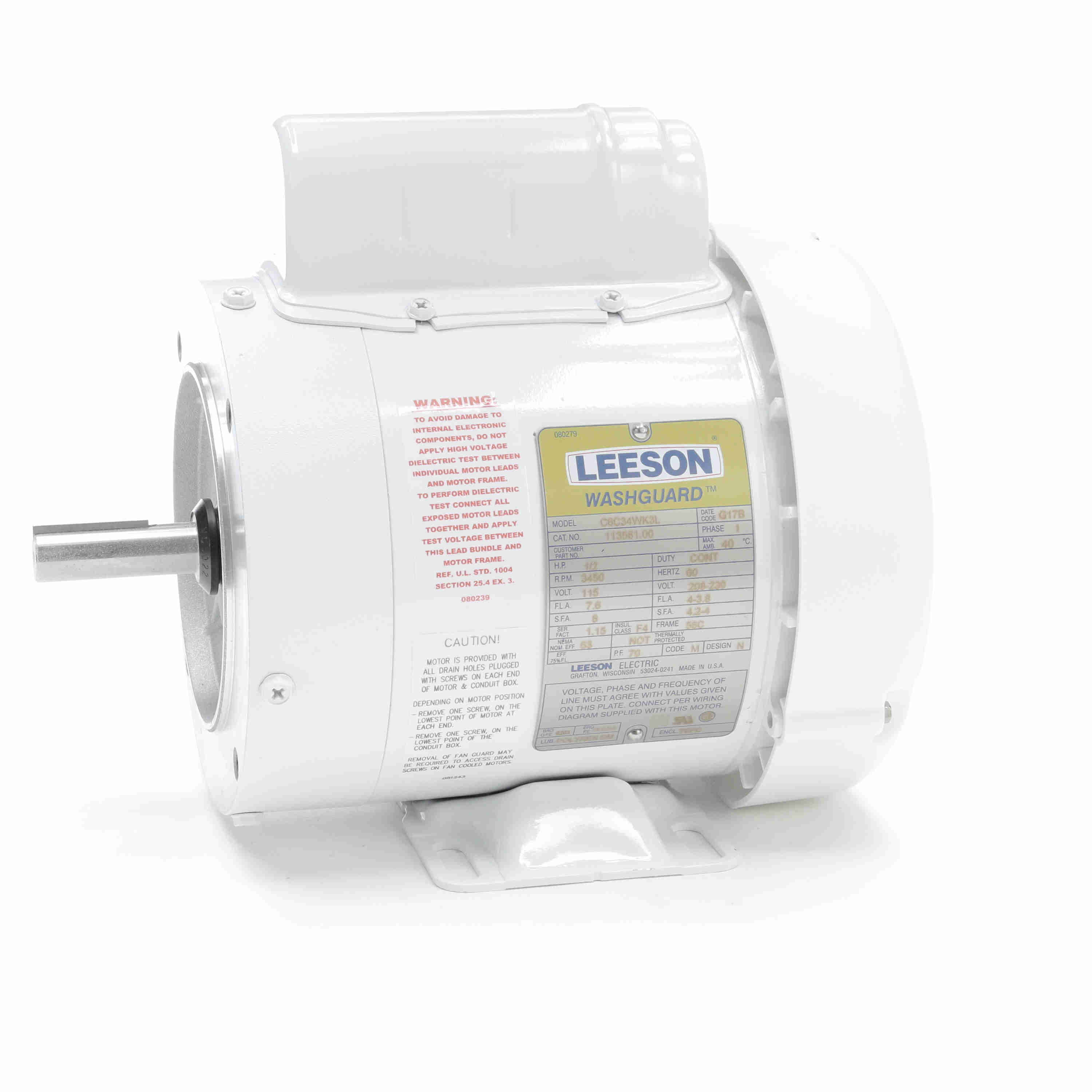

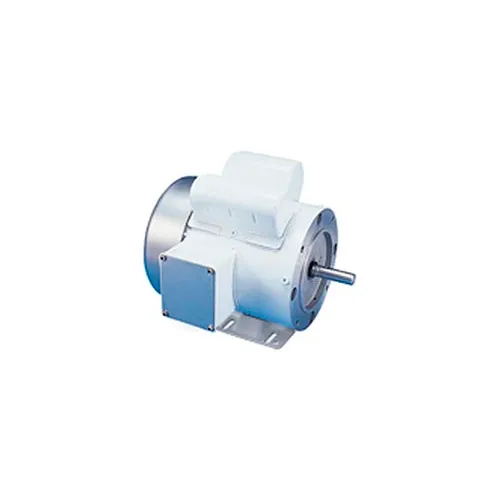

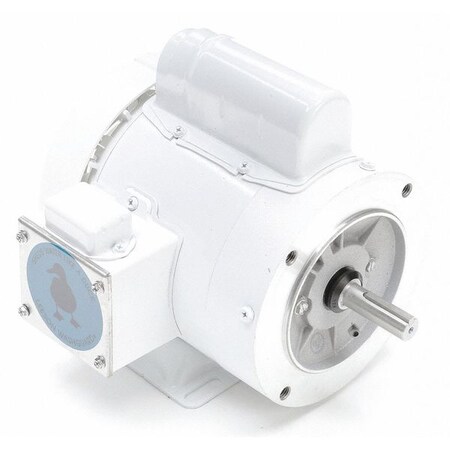

Leeson 113581.00
Leesonzoom

Leeson 113581.00

mpn:
113581.00
brand:
Leeson
manufacturer:
Leeson
MPN:
113581.00
Description:
Shop Leeson 113581.00 / 691720012062 and trust MRO to be your reliable Leeson supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.
Weight:
25.0
Weight:
28.0 LB
Preferred Price:
546.91
Min Offer Price:
372.74
Price:
546.91
Min Simple Price:
309.0
Absolute Min Price:
438.78
Min Price:
438.78
Dimensions:
[15.0, 12.0, 11.0]
qty:
21
simpleSku:
MzkwMQ:::113581.00
sku:
MzkwMQ::JW:113581.00@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
leeson
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Alternate Mfr Part NumberC6C34WK3L
Amperage7.6/4.0-3.8 Amps
Amperage Rating7.6/4 to 3.8 A
Amps7.6/4.0-3.8
Application TypeGeneral Purpose AC Motors
ApprovalsCSA, UL
Bearing Type10.69
Bearing Type, Bearings, Drive End Bearing Type, Opp. Drive End Bearing TypeBall
Body Dia.7.4 in
Bolt Circle Dia.5 7/8 in
Brand, ManufacturerLeeson
Catalog No., Item Number, Manufacturer Part Number, MFG Part #:, Mpn, Part Number113581.00
CategoryElectric Motor
Class/Group, Model NumberC6C34WK3
Composition, Motor Frame MaterialSteel
Construction, Enclosure Material, Frame Material, MaterialRolled Steel
Current Rating7.6 ; 4.0 to 3.8 A
Current Stock3
Description:1/2HP.- C-FACE WITH BASE -..3450RPM.56.TEFC.115/208-230V.1PH.60HZ.CONT.NOT
Dimensions10.37 in L x 8.75 in H
Drain Plugs(4) Each End, (2) In Conduit Box
Drive End Bearing Size6205
Drive End Flange TypeC-Face
Duty, Duty CycleContinuous
Efficiency63 %, 63.0%
Efficiency, FL Efficiency63
EnclosureTEFC
Enclosure TypeTEFC (Totally Enclosed Fan Cooled)
Enclosure, Enclosure TypeTotally Enclosed Fan Cooled
EndshieldsCast Aluminum
Estimated Weight25.00
Family SeriesLeeson Motors, Washguard Series
FL Amps7.6/4-3.8
Frame RemarksFOOTED, WASHDOWN
Frame, NEMA Frame56C
Frequency, Frequency Rating60 Hz
Frequency, Hertz, Hz60
Gross Weight0 lbs
Horsepower0.5 hp
Horsepower Rating0.50 HP
Horsepower, Power1/2 HP
HP0.50, 0.5, 1/2
Insulation ClassF
Insulation Class, Insulation TypeClass F
International ShippingNo
ItemWashdown Motor
Item ConditionFACTORY NEW
KW0.37
Lead TimeExpected to ship in 1-2 business days
Length Less Shaft8 7/16 in
ManufacturerLeeson Electric
Manufacturer, Supplier:LEESON ELECTRIC CORPORATION
Manufacturers Warranty Length1 yr
Maximum Ambient Temperature40? C
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Mounting PositionHorizontal
Motor Shell Length4.50"
Motor Thermal Protection, Overload ProtectionNone
MountingFoot Mount
mountingC-face w/ rigid base
Mounting TypeC-Face Less Base, C-Face/Rigid Base
Mounting, Mounting TypeRigid Base
Nameplate RPM3,450
Net Weight25 lbs
Nominal Voltage120 VAC, 208 VAC, 240 VAC
Number of Poles2
Number of Speeds, Phase1
Opp. Drive End Bearing Size6203
Overall Length10.37", 10 3/8 in, 10.69 "
PhaseSingle, 1 Phase, 1 ph
Product SeriesWashguard
Product TypeWashdown Duty, Capacitor Start
RotationSelective CCW, Reversible
RPM3600, 3400 - 3600, 3,600 RPM
RPM Range3,001-3,600
RPM, Speed3450 RPM
RPM, Speed (RPM)3450
Service Factor1.15
Shaft5/8" dia. x 1-15/16" w/ 3/16" keyway
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88, 1 7/8 in
Shaft MaterialStainless Steel
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight28 lbs.
Shpg.32 lbs.
Size10.37" x 9.08" x 8.75"
SKUZO-G4241986
Special FeaturesService Factor - 1.15, Capacitor Start Motors
StandardsUL Recognized
SubCategoryMotors/Ac Motors
Supply Voltage115/208-230 VAC
TypeCapacitor Start Induction Run
UPC691720012109
UPC Code, UPC:691720012062
Voltage115/208-230 AC, 110-120V, 208V, 230V, 115/208-230V AC
Voltage Compatibility115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Voltage, Volts115/208-230
Volts115/208/230

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomelectricmotorwholesale.com113581309.0309.01In StockLEESON309.0 @ Qty: 1+
AmazonTPB0773TJW52360.31360.311In Stock3Leeson Electric360.31 @ Qty: 1+
thumbzoomMRO Supply2525679418.55418.551In StockLeeson418.55 @ Qty: 1+
thumbzoomemotorpro.com113581.00450.75450.751In StockLeeson28.0450.75 @ Qty: 1+
thumbzoomDealers Electric113581.00481.7481.71In StockLeeson28.0481.7 @ Qty: 1+
thumbzoomZoroG4241986495.99495.99127Leeson25.6495.99 @ Qty: 1+
thumbzoomGlobal IndustrialWBB228140505.0505.01In StockLeeson505.0 @ Qty: 1+
thumbzoomsurpluscenter.com10-2847508.0508.01In StockLeeson508.0 @ Qty: 1+
thumbzoommotorsandcontrol.comLE-113581.00515.19515.191In StockLeeson Electric25.0515.19 @ Qty: 1+
thumbzoomGalco113581.00-LEES519.23519.231In StockLeeson25.0519.23 @ Qty: 1+
us.rs-online.com72239555527.31527.311In StockLeeson527.31 @ Qty: 1+
thumbzoomsimsupply.comZO-G4241986540.89540.8913Leeson540.89 @ Qty: 1+
kscdirect.comLEE 113581.00575.15575.151In StockLEESON ELECTRIC CORPORATION575.15 @ Qty: 1+
thumbzoomWalker Industrial113581-00656.55656.551In Stock17Leeson656.55 @ Qty: 1+
thumbzoompumpproducts.com113581.00878.6878.61In StockLeeson878.6 @ Qty: 1+
thumbzoomRaptor SuppliesAJ2QKC955.959966955.9599661In StockLEESON955.959966 @ Qty: 1+
B00EPKM8JW
Leeson 113581.00

Leeson 113581.00 White Epoxy Painted Washguard Motor, 1 Phase, 56C Frame, Rigid Mounting, 1/2HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 113581.00 White Epoxy Painted Washguard Motor, 1 Phase, 56C Frame, Rigid Mounting, 1/2HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom
