Leeson 113582.00

B00EPL02G2

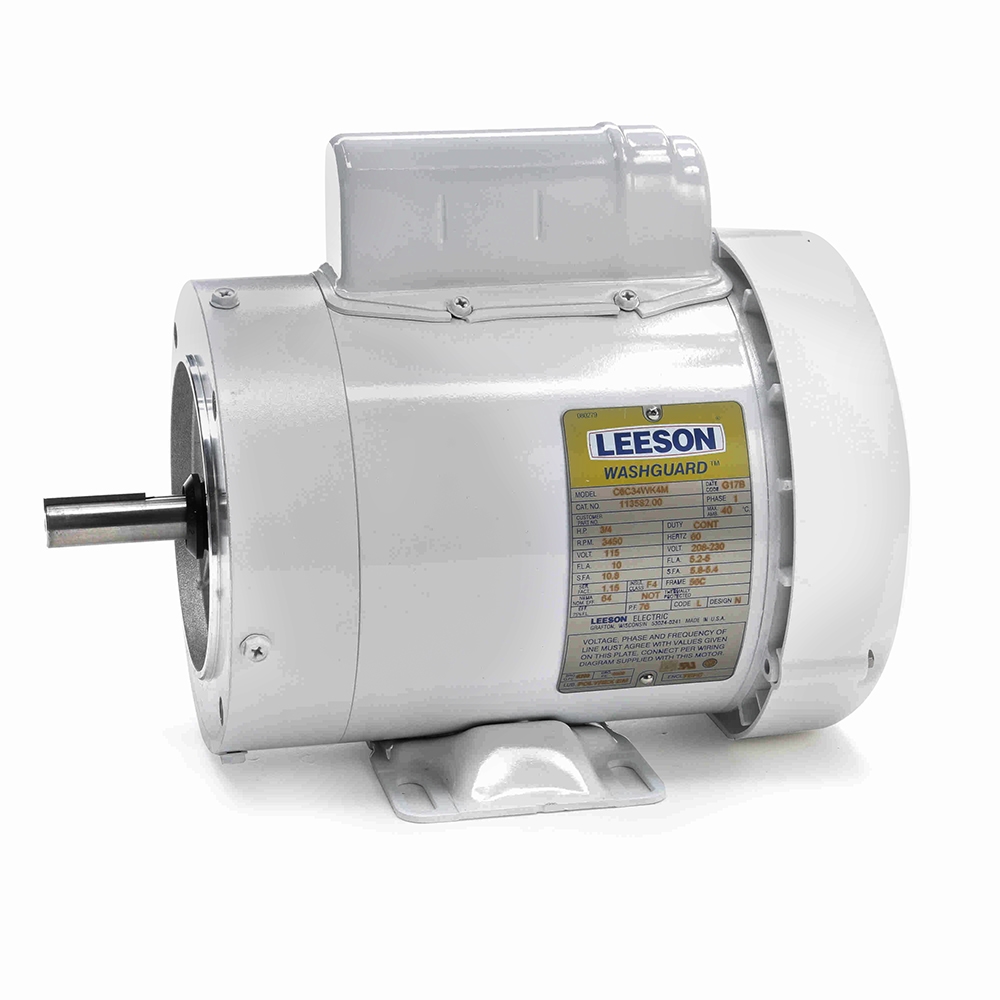

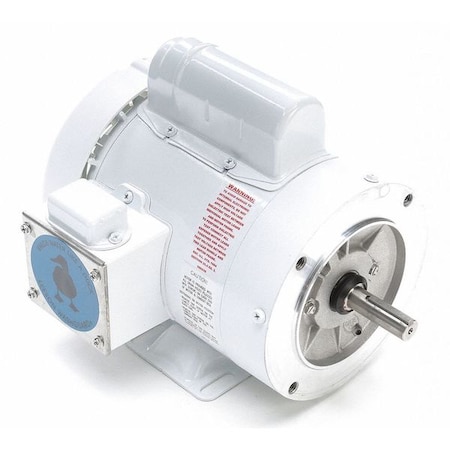

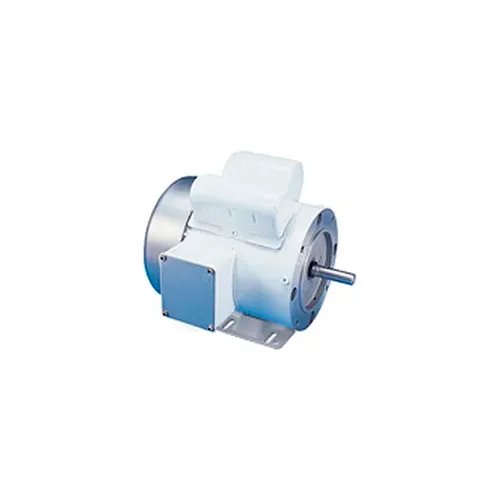

Leeson 113582.00 White Epoxy Painted Washguard Motor, 1 Phase, 56C Frame, Rigid Mounting, 3/4HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 113582.00 White Epoxy Painted Washguard Motor, 1 Phase, 56C Frame, Rigid Mounting, 3/4HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.C6C34WK4M
Amperage10/5.2-5.0 Amps
Amperage Rating10/5.2 to 5 A
Amps10.0/5.2-5.0
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall, 11.69
BearingsBall
Body Dia.7.4 in
Bolt Circle Dia.5 7/8 in
BrandLeeson
Catalog No.113582.00
CategoryElectric Motor
Class/GroupC6C34WK4
CompositionSteel
ConstructionRolled Steel
Current Rating10.0 ; 5.2 to 5.0 A
Current Stock5
Description:3/4HP.- C-FACE WITH BAS.
Dimensions11.37 in L x 8.75 in H
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency64.0%, 64, 64 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
EndshieldsCast Aluminum
Estimated Weight31.00
Family SeriesLeeson Motors, Washguar.
FL Amps10/5.2-5
FL Efficiency64
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTED, WASHDOWN
Frequency60, 60 Hz
Frequency Rating60 Hz
Full Load Amps5.0
Gross Weight0 lbs
Hertz60
Horsepower0.75 hp, 3/4 HP
Horsepower Rating0.75 hp
HP3/4, 0.75
Hz60
Insulation ClassClass F, F
Insulation TypeClass F
International ShippingNo
Inverter RatedNo
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number113582.00
KW0.56
Length Less Shaft9 7/16 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number113582.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:113582.00
Model NumberC6C34WK4
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Shaft DesignKeyed
Motor Shell Length5.50"
Motor Thermal ProtectionNone
mountingC-face w/ rigid base
MountingFoot Mount, Rigid Base
Mounting TypeC-Face Less Base, Rigid.
Mpn113582.00
NEMA Frame56C
Net Weight31 lbs
Nominal Voltage120 VAC, 208 VAC, 240 V.
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length11 3/8 in, 11.69 ", 11..
Overload ProtectionNone
Part Number113582.00
Phase1, Single, 1 Phase, 1 ph
Power3/4 HP
Product SeriesWashguard
Product TypeWashdown Duty, Capacito.
RotationSelective CCW, Reversib.
RPM3450 RPM, 3450, 3600, 3.
RPM Range3,001-3,600
Service Factor1.15
Shaft5/8" dia. x 1-15/16" w/.
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88, 1 7/8 in
Shaft MaterialStainless Steel
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight28 lbs.
Shpg.32 lbs.
Size11-5/8" x 9-1/8" x 9"
SKUZO-G4241959
Special FeaturesService Factor - 1.15, .
Speed3450 RPM
Speed (RPM)3450
StandardsUL Recognized, BISSC, C.
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage115/208-230 VAC
TypeCapacitor Start Inducti.
UPC691720012116
UPC Code691720012086
UPC:691720012086
Voltage115/208-230 AC, 110-120.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com113582337.01In StockLEESON337.0 @ 1
thumbzoomZoroG4241959425.9919Leeson29.85425.99 @ 1
thumbzoomMRO Supply2525680461.391In StockLeeson461.39 @ 1
thumbzoomemotorpro.com113582.00493.541In StockLeeson28.0493.54 @ 1
thumbzoomsimsupply.comZO-G4241959525.515Leeson525.5 @ 1
thumbzoomDealers Electric113582.00530.991In StockLeeson28.0530.99 @ 1
thumbzoomsurpluscenter.com10-2849559.951In StockLeeson559.95 @ 1
thumbzoommotorsandcontrol.comLE-113582.00567.91116Leeson Electric31.0567.91 @ 1
thumbzoomGalco113582.00-LEES572.371In StockLeeson31.0572.37 @ 1
thumbzoomSquare One113582.00596.251In StockLEESON596.25 @ 1
kscdirect.comLEE 113582.00598.381In StockLEESON ELECTRIC CORPORATION598.38 @ 1
us.rs-online.com72239556602.361In StockLeeson602.36 @ 1
thumbzoomWalker Industrial113582-00683.071In Stock10Leeson683.07 @ 1
thumbzoomGlobal IndustrialWBB228141869.02In StockLeeson869.0 @ 2
thumbzoompumpproducts.com113582.00940.761In StockLeeson940.76 @ 1
thumbzoomRaptor SuppliesAJ2QKD960.474061In StockLEESON960.47406 @ 1
