Leeson 114164.00

B00EP2TVG8

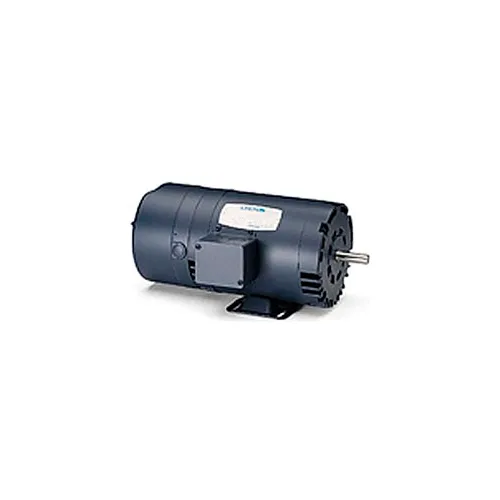

Leeson 114164.00 Drip-Proof Brakemotor, 3 Phase, D56 Frame, Rigid Mounting, 1HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 114164.00 Drip-Proof Brakemotor, 3 Phase, D56 Frame, Rigid Mounting, 1HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating4.2/2.1 A
Amps4.2/2.1
Application TypeBrake Motors
ApprovalsCSA, UL
Bearing Type14.06, Ball
BearingsBall
CategoryElectric Motor
Class/GroupC6T17DB48
CompositionSteel
ConstructionRolled Steel
Description:1HP..1725RPM.56.DP.230/.
Dimensions14.06 in L x 6.77 in H
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency78.5, 78.5%
Efficiency %78.5 %
EnclosureODP, Open, Drip Proof
Enclosure MaterialRolled Steel
Enclosure TypeDP (Dripproof), DP
Estimated Weight32.00
Family SeriesLeeson Motors, Brakemot.
FL Amps4.2/2.1
FL Efficiency78.5
Frame56, D56
Frame MaterialRolled Steel
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassB, Class B
Item ConditionFACTORY NEW
Item Number114164.00
KW0.75
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number114164.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:114164.00
Model NumberC6T17DB48
Motor Shell Length5.50"
MountingFoot Mount, Rigid Base
mountingRigid Base
Mounting TypeFoot Mount, Rigid, Rigi.
NEMA Frame56
Net Weight32 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length14.06 ", 14.06"
Part Number114164.00
Phase3, 3 ph
Product SeriesBrakemotors
Product TypeBrake Motors, Three Pha.
RotationReversible
RPM1725, 1,800 RPM, 1700 -.
Service Factor1.15
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight35 lbs.
Special FeaturesWashdown Duty Motors
Speed (RPM)1725
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720013397
Voltage208-230/460, 208V, 230V.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com114164630.01In StockLeeson35.0630.0 @ 1
thumbzoomMRO Supply2525788928.481In StockLeeson928.48 @ 1
thumbzoomDealers Electric114164.001159.441In StockLeeson35.01159.44 @ 1
us.rs-online.com733972791249.461In StockLeeson1249.46 @ 1
thumbzoommotorsandcontrol.comLE-114164.001273.551In StockLeeson Electric32.01273.55 @ 1
thumbzoomGalco114164.00-LEES1283.231In StockLeeson32.01283.23 @ 1
thumbzoomemotorpro.com114164.001289.561In StockLeeson35.01289.56 @ 1
kscdirect.comLEE 114164.001330.961In StockLEESON ELECTRIC CORPORATION1330.96 @ 1
thumbzoomWalker Industrial114164-001443.371In Stock10Leeson1443.37 @ 1
thumbzoomGlobal IndustrialWBB2177211549.01In Stock38Leeson1549.0 @ 1
thumbzoompumpproducts.com114164.001727.631In StockLeeson1727.63 @ 1
thumbzoomRaptor SuppliesAJ2QMW1816.73288551In StockLEESON1816.7328855 @ 1
