Leeson 114165.00

B00EPKSKTO

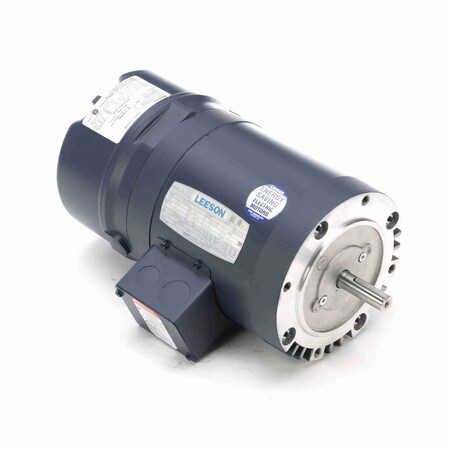

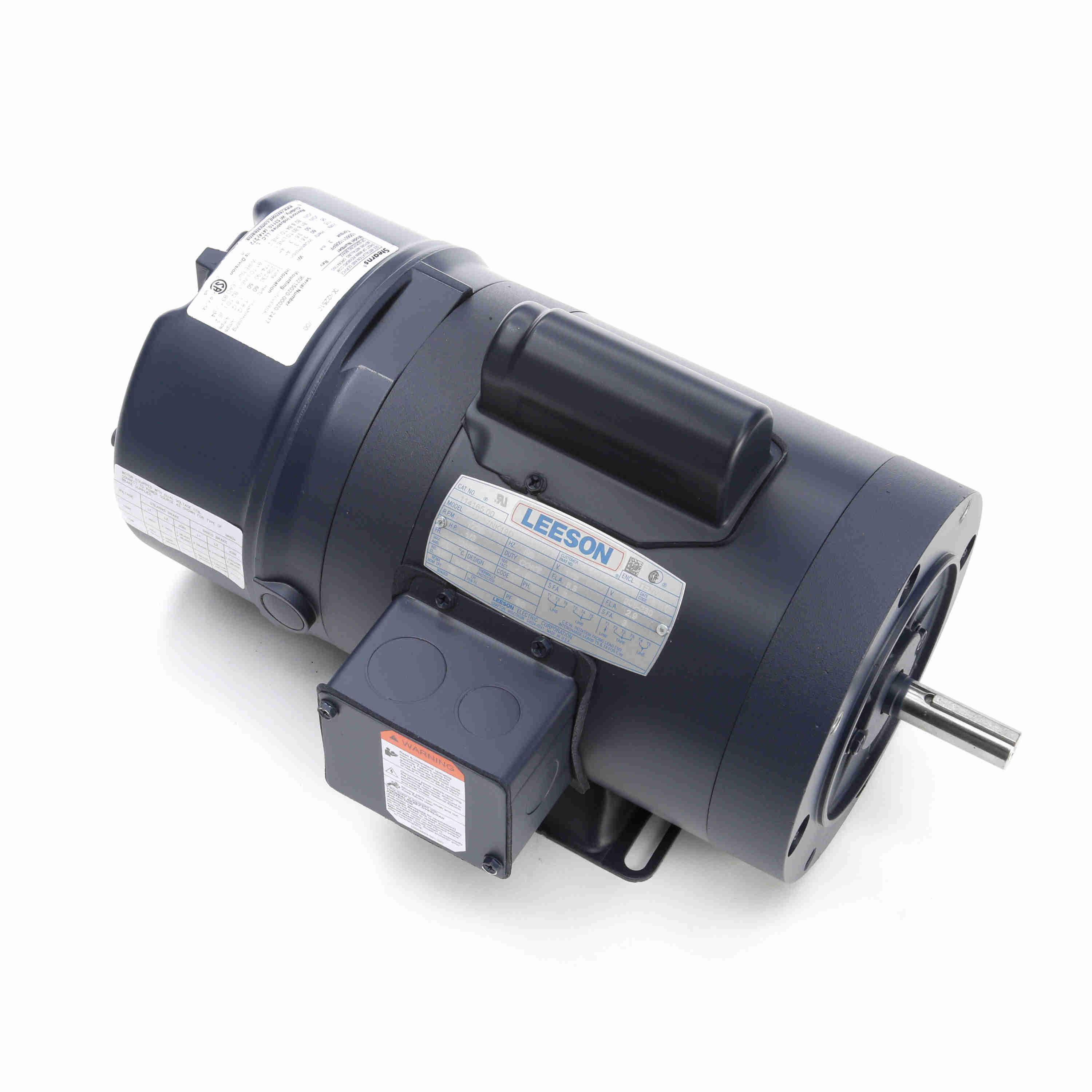

Leeson 114165.00 TENV/TEFC C Face Brakemotor, 1 Phase, D56C Frame, Rigid Mounting, 1/3HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 114165.00 TENV/TEFC C Face Brakemotor, 1 Phase, D56C Frame, Rigid Mounting, 1/3HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
1/2 Load Efficiency54.4%
1/2 Load Power Factor39.2%
3/4 Load Efficiency62.3%
3/4 Load Power Factor47.4%
Amperage Rating5.8/2.9 A
Amps5.8/2.9-2.9
Application TypeBrake Motors, Hoist Mot.
Bearing TypeBall
BearingsBall
Brake Rating3 lb-ft
CategoryElectric Motor
ConstructionRolled Steel
Description:1/3HP..1725RPM.56.TENV..
Dimensions14.06 Inch L x 9.02 Inc.
Drive End Flange TypeC-Face
DutyContinous
Duty CycleContinuous
Efficiency70.0%
EnclosureTENV
Enclosure MaterialRolled Steel
Enclosure TypeTENV (Totally Enclosed .
Estimated Weight28.00
FL Amps5.8/2.9
FL Efficiency70
FrameD56C, 56C
Frame RemarksFOOTED
Frame Size56
Frame TypeD56C
Frequency Rating60 Hz
Full Load Ampere5.8 A
Full Load Efficiency70%
Full Load Power Factor54%
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP0.33, 1/3
HP Rating0.333 HP
Hz60
Insulation ClassB, Class B
Insulation TypeClass B
Item ConditionFACTORY NEW
Item NameAC BRAKEMOTOR
KVA CodeN
ManufacturerLeeson Electric, LEESON.
MaterialSteel
Maximum Ambient Tempera.40? C
MFG Part #:114165.00
Motor Shell Length5.50"
MountingFoot Mount, Rigid Base
mountingC-face w/ rigid base
Mounting TypeRigid, C-Face with Rigi.
Number of Poles4
Number of Speeds1
Overall Length14.06"
Overload ProtectorNo
Part Number114165.00
Phase1, 1-Phase
Product TypeBrake Motors, Capacitor.
RotationCCW, Reversible, Select.
RPM1725, 1800
Service Factor1.15, 1.149
Shaft Diameter0.625", 0.625 Inch
Shaft Length1.88", 2.06 Inch
Shaft PositionHorizontal
Shaft Size5/8 in Dia
Ship Weight31 lbs.
Speed1800 rpm
Speed (RPM)1725
Speed Rating1800 rpm
StandardsUL Listed, CSA Certified
Start MethodAcross The Line
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C, 40 ?C
Torque Rating15.9 lb-ft
Trade NameLeeson
TypeCN
UPC:691720013403
Voltage110-120V, 208V, 230V
Voltage Rating230 VAC
Volts115/208/230, 115/208-230
Weight31 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com114165510.01In StockLEESON510.0 @ 1
AmazonTPB0773VHS6V660.651In Stock5Leeson Electric660.65 @ 1
thumbzoomMRO Supply2525789751.261In StockLeeson751.26 @ 1
thumbzoomemotorpro.com114165.00819.961In StockLeeson31.0819.96 @ 1
thumbzoomZoroG2484191922.391In Stock19Leeson922.39 @ 1
thumbzoomGlobal IndustrialWBB216655935.01In StockLeeson935.0 @ 1
thumbzoomDealers Electric114165.00938.141In StockLeeson31.0938.14 @ 1
thumbzoommotorsandcontrol.comLE-114165.001030.4718Leeson Electric28.01030.47 @ 1
thumbzoomGalco114165.00-LEES1038.281In StockLeeson1038.28 @ 1
thumbzoomcbtcompany.com114165.001141.571In StockLeeson Electric1141.57 @ 1
thumbzoomWalker Industrial114165-001167.871In Stock10Leeson1167.87 @ 1
kscdirect.comLEE 114165.001265.371In StockLEESON ELECTRIC CORPORATION1265.37 @ 1
thumbzoompumpproducts.com114165.001333.351In StockLeeson1333.35 @ 1
EISMOT1141651334.01In StockLEESON31.01334.0 @ 1
thumbzoomRaptor SuppliesAJ2QMX1469.9409661In StockLEESON1469.940966 @ 1
