Leeson 114166.00

B00EP2TWO4

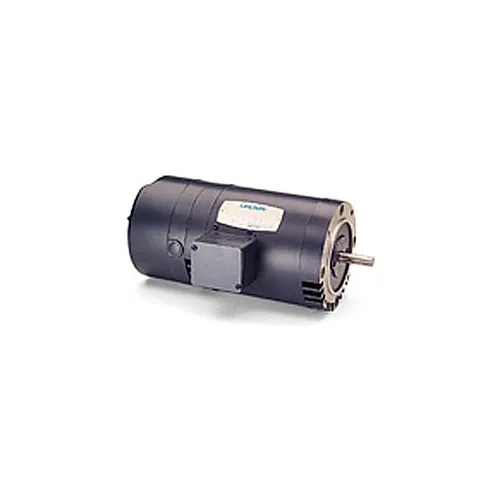

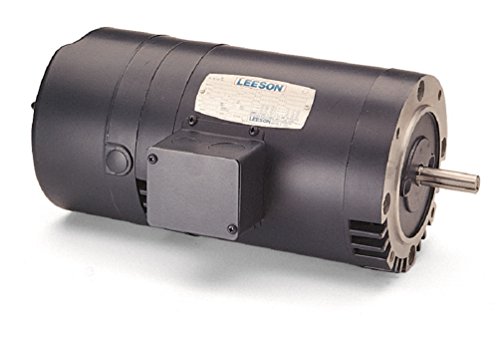

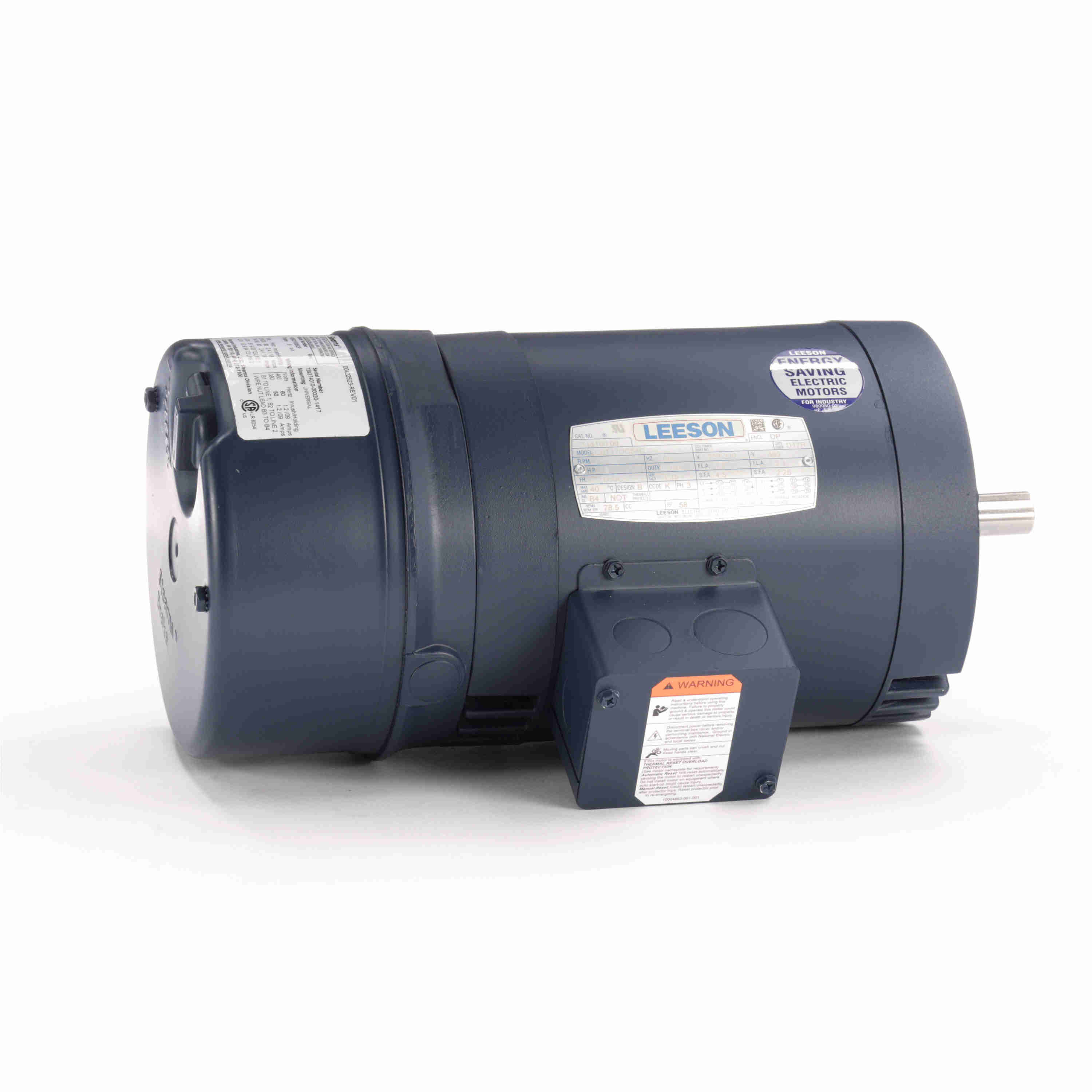

Leeson 114166.00 Drip-Proof Brakemotor, 3 Phase, D56C Frame, Round Mounting, 1HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 114166.00 Drip-Proof Brakemotor, 3 Phase, D56C Frame, Round Mounting, 1HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating4.2/2.1 A
Amps4.2/2.1
Application TypeBrake Motors
ApprovalsCSA, UL
Bearing Type14.06, Ball
BearingsBall
CategoryElectric Motor
Class/GroupC6T17DC54
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.United States
Description:1HP..1725RPM.56.DP.230/.
Dimensions14.06 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency78.5, 78.5%
Efficiency %78.5 %
EnclosureODP, Open, Drip Proof
Enclosure MaterialRolled Steel
Enclosure TypeDP (Dripproof), DP
Estimated Weight40.00
Family SeriesLeeson Motors, Brakemot.
FL Amps4.2/2.1
FL Efficiency78.5
FrameD56C, 56C
Frame MaterialRolled Steel
Frame RemarksFOOTLESS
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassB, Class B
Item ConditionFACTORY NEW
Item Number114166.00
KW0.75
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number114166.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:114166.00
Model NumberC6T17DC54
Motor Shell Length5.50"
MountingRound, FOOTLESS
mountingC-face (NO base)
Mounting TypeRound/C-Face/Footless, .
NEMA Frame56C
Net Weight40 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length14.06 ", 14.06"
Part Number114166.00
Phase3, 3 ph
Product SeriesBrakemotors
Product TypeBrake Motors, Three Pha.
RotationReversible
RPM1,800 RPM, 1700 - 1800,.
Service Factor1.15
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight37 lbs.
Special FeaturesWashdown Duty Motors
Speed (RPM)1725
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720013410
Voltage208-230/460, 208V, 230V.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0773TRL6Z822.01In Stock5Leeson Electric822.0 @ 1
thumbzoomMRO Supply2525790945.191In StockLeeson945.19 @ 1
thumbzoomemotorpro.com114166.001031.891In StockLeeson37.01031.89 @ 1
thumbzoomGlobal IndustrialWBB2176541116.01In Stock17Leeson1116.0 @ 1
thumbzoomDealers Electric114166.001180.31In StockLeeson37.01180.3 @ 1
us.rs-online.com733972781272.231In StockLeeson1272.23 @ 1
thumbzoommotorsandcontrol.comLE-114166.001296.471In StockLeeson Electric40.01296.47 @ 1
thumbzoomGalco114166.00-LEES1306.621In StockLeeson40.01306.62 @ 1
kscdirect.comLEE 114166.001354.91In StockLEESON ELECTRIC CORPORATION1354.9 @ 1
thumbzoomZoroG24848731365.531In Stock26Leeson1365.53 @ 1
thumbzoomcbtcompany.com114166.001436.251In StockLeeson Electric1436.25 @ 1
thumbzoomWalker Industrial114166-001469.331In Stock10Leeson1469.33 @ 1
thumbzoompumpproducts.com114166.001677.541In StockLeeson1677.54 @ 1
thumbzoomRaptor SuppliesAJ2QMY1849.8399661In StockLEESON1849.839966 @ 1
