Leeson 114167

B00BC7KXKC

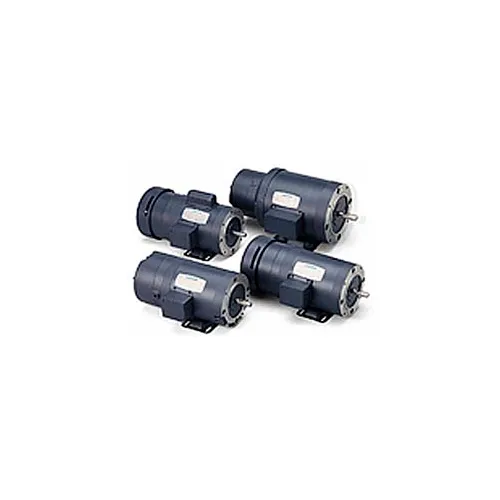

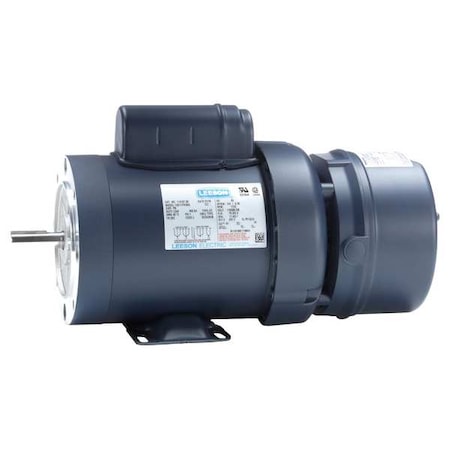

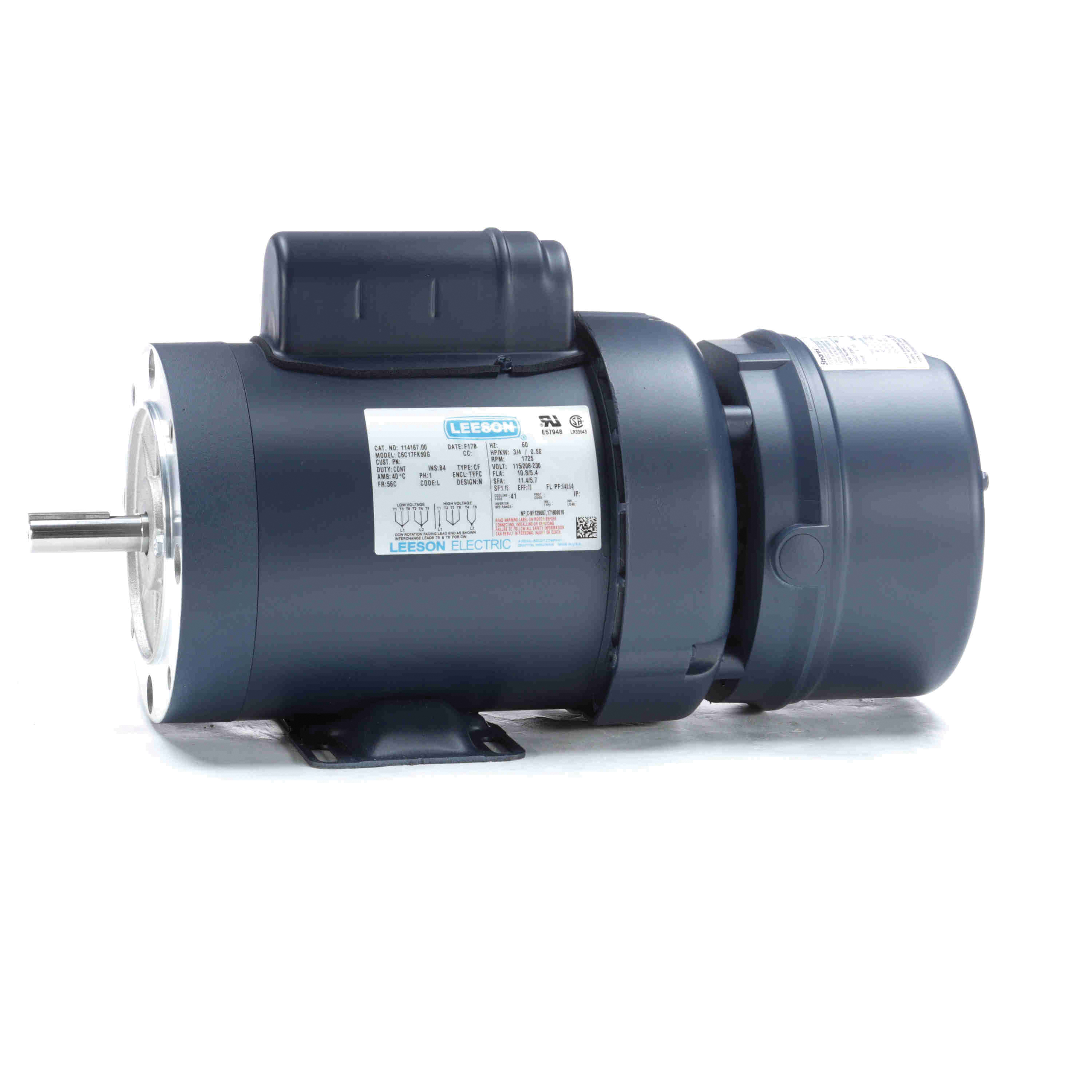

Leeson 114167.00 3/4HP 1725RPM 56 TEFC 115/208-230V 1PH 60HZ

Leeson 114167.00 3/4HP 1725RPM 56 TEFC 115/208-230V 1PH 60HZzoom

Attributes

Key Value
Alternate Mfr Part Numb.C6C17FK50G
Amperage Rating10.8/5.4 A
Application TypeBrake Motors
ApprovalsCSA, UL
Bearing Type15.56, Ball
Brake Model/SeriesSeries 56000
Brake Rating6 ft.-lb.
BrandLeeson
CategoryElectric Motor
Class/GroupC6C17FK50
CompositionSteel
Conduit Box LocationExterior
ConstructionRolled Steel
Current Rating10.8 ; 5.4 A
Description:3/4HP..1725RPM.56.TEFC..
Dimensions16.23 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency70 %, 70
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight38.00
Family SeriesLeeson Motors, Brakemot.
FL Amps10.8/5.4
FL Efficiency70
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTED
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower0.75 HP, 3/4 hp
Horsepower Rating0.75 HP
HP3/4, 0.75
Hz60
IncludesKey
Insulation ClassB, Class B
Insulation TypeClass B
International ShippingNo
ItemBrake Motor
Item ConditionFACTORY NEW
Item Number114167.00
KW0.56
Lead TimeExpected to ship in 1-2.
Length Less Shaft14 3/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number114167.00
Manufacturers Warranty .18 mo
MaterialRolled Steel
MFG Part #:114167.00
Model NumberC6C17FK50
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting TypeRigid Base
Motor Shaft DesignKeyed
Motor Shaft RotationCCWSE
MountingFoot Mount
mountingC-face w/ rigid base
Mounting TypeC-Face/Rigid Base, Rigi.
Mpn114167.00
Nameplate RPM1,725
NEMA Frame56C
Net Weight38 lbs
No. of Speeds1
Nominal Efficiency70 %
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length15.56 ", 16 3/16 in
Part Number114167.00
Phase1, 1 Phase, 1 ph
Product SeriesBrakemotors
Product TypeBrake Motors
RotationSelective CCW
RPM1725 RPM, 1,800 RPM, 17.
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.5/8 in
Shaft Diameter0.625, UL;CSA
Shaft Length1.88, 1 7/8 in
Shaft Size0.63 in Dia x 1.88 in L
SKUZO-G702577999
Special FeaturesService Factor - 1.15, .
Speed (RPM)1725
StandardsUL Recognized
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage115/208-230 VAC
TypeCapacitor Start Inducti.
UPC691720013427
UPC Code691720013427
UPC:691720013427
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com114167720.01In StockLEESON720.0 @ 1
AmazonTPB0773TPNSG933.811In Stock5Leeson Electric933.81 @ 1
thumbzoomMRO Supply25257911067.411In StockLeeson1067.41 @ 1
thumbzoomZoroG7025779991067.9919Leeson36.71067.99 @ 1
thumbzoomGlobal IndustrialWBB2166571235.01In StockLeeson1235.0 @ 1
thumbzoomsimsupply.comZO-G7025779991263.91In StockLeeson1263.9 @ 1
thumbzoomDealers Electric114167.001332.931In StockLeeson40.01332.93 @ 1
thumbzoomPurvis114167LEE1417.021In StockLEESON1417.02 @ 1
us.rs-online.com722390541459.181In StockLeeson1459.18 @ 1
thumbzoommotorsandcontrol.comLE-114167.001464.11139Leeson Electric38.01464.11 @ 1
thumbzoomGalco114167.00-LEES1475.571In StockLeeson38.01475.57 @ 1
kscdirect.comLEE 114167.001530.111In StockLEESON ELECTRIC CORPORATION1530.11 @ 1
cbtcompany.com114167.001621.971In StockLeeson Electric1621.97 @ 1
thumbzoomWalker Industrial114167-001659.331In Stock10Leeson1659.33 @ 1
thumbzoompumpproducts.com114167.001986.131In StockLeeson1986.13 @ 1
thumbzoomRaptor SuppliesAJ2QMZ2181.290671In StockLEESON2181.29067 @ 1
