Leeson 114889.00

B00EPKSRPQ

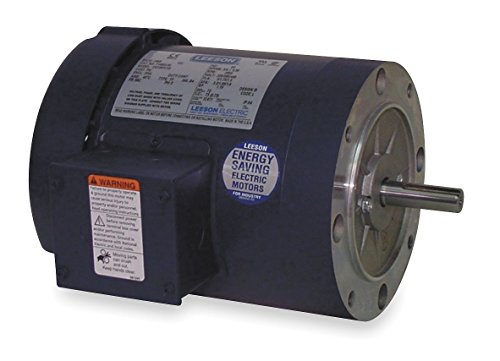

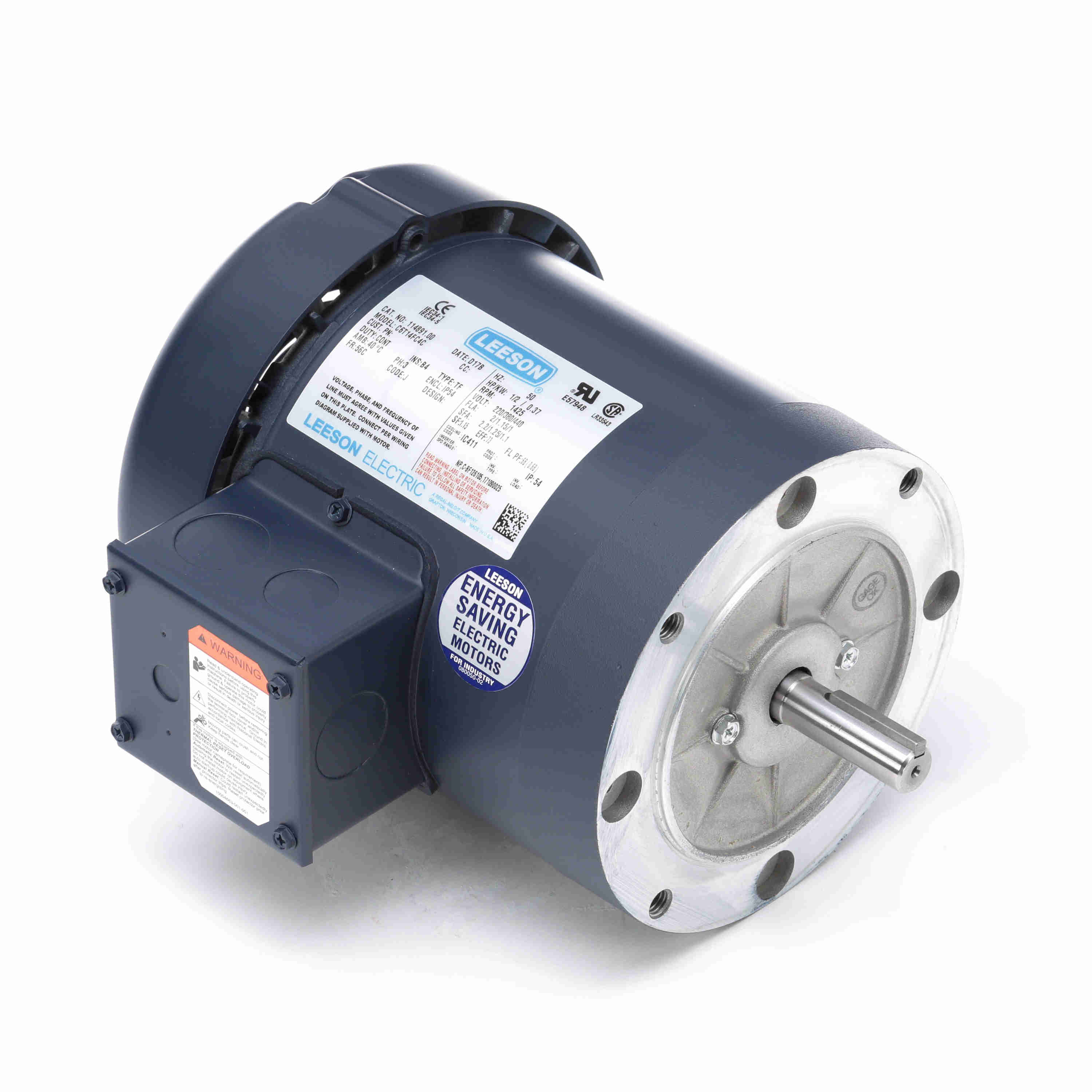

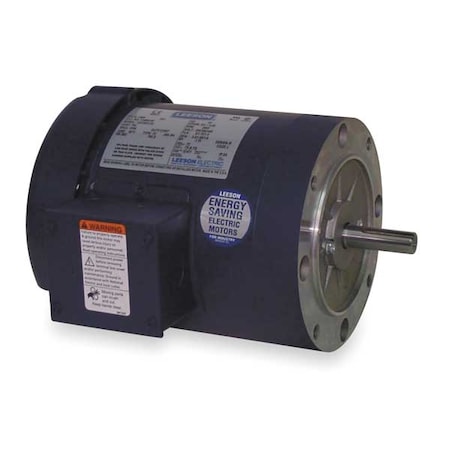

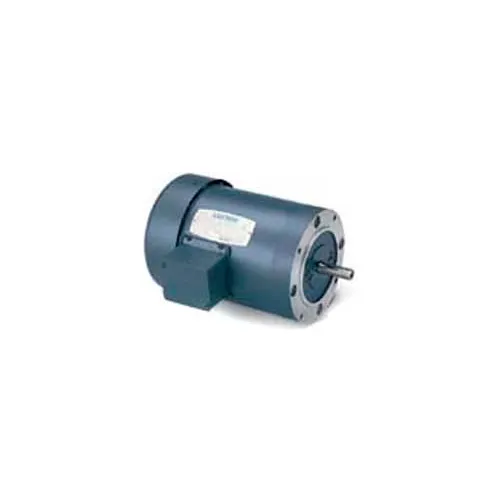

Leeson 114889.00 Special Voltage Motor, 3 Phase, 56C Frame, Round Mounting, 1/3HP, 1500 RPM, 220/380/440V Voltage, 50Hz Fequency

Leeson 114889.00 Special Voltage Motor, 3 Phase, 56C Frame, Round Mounting, 1/3HP, 1500 RPM, 220/380/440V Voltage, 50Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.C6T14FC5C
Ambient Temperature40 Degrees C
Amperage Rating1.7/1/0.85 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupC6T14FC5
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.United States
Current Rating1.7 ; 1.0 ; 0.85 A
Description:1/3HP.0.25kW.1425RPM.56.
Dimensions10.21 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency68, 68 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight18.00
Family SeriesLeeson Motors, Special .
FL Amps1.7/1/.85
FL Efficiency68
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTLESS
Frequency50 Hz, 50
Frequency Rating50 Hz
Full Load Amps1.70/1.10/0.85
Full Load Amps @ 50Hz1.70/1.10/0.85
Gross Weight0 lbs
Hertz60
Horsepower1/3 hp, 0.33 HP
Horsepower Rating0.33 HP
HP1/3, 0.33
HP @ 50Hz1/3
Hz50
Ins. ClassB
Insulation ClassB, Class B
Insulation TypeClass B
Item50 Hz Motor
Item ConditionFACTORY NEW
Item Number114889.00
Kilowatts0.25 kW
KW0.25
Length Less Shaft8 3/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number114889.00
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
MFG Part #:114889.00
Model NumberC6T14FC5
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFOOTLESS
mountingC-face (NO base)
Mounting TypeC-Face Less Base, Round.
Nameplate RPM1,425
NEMA DesignB
NEMA Frame56C
Net Weight18 lbs
No. of Speeds1
Nominal Efficiency68 %
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length10 3/16 in, 10.31 "
Part Number114889.00
Phase3 ph, 3, Three, 3 Phase
Product SeriesSpecial Voltage
Product TypeGeneral Purpose
RotationReversible
RPM1500, 1425, 1,500 RPM, .
RPM @ 50Hz1,425
RPM Range1,401-1,500
Service Factor1.15
Service Factor @ 50Hz1.15
Shaft Dia.5/8 in
Shaft Diameter0.625, UL;CSA
Shaft Length1.88, 1 7/8 in
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesService Factor - 1.15
Speed1425 RPM
Speed (RPM)1425
StandardsUL Recognized, CE Certi.
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage220 VAC ; 380 VAC ; 440.
TypeSquirrel Cage Induction.
UPC Code691720014103
UPC:691720014103
Usable @ 200VNo
Usable @ 208VNo
Voltage220/380/440, 220/380/44.
Voltage @ 50Hz220/380/440V AC
Voltage Compatibility220/380/440V AC
Volts220/380/440
Weight21 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com114889297.01In StockLEESON297.0 @ 1
thumbzoomZoroG1330506363.081In Stock26Leeson20.15363.08 @ 1
thumbzoomMRO Supply2525870416.371In StockLeeson416.37 @ 1
thumbzoomapexindustrialautomation.com114889.00432.3819Leeson432.38 @ 1
thumbzoomDealers Electric114889.00519.941In StockLeeson21.0519.94 @ 1
us.rs-online.com72239318568.891In StockLeeson568.89 @ 1
thumbzoommotorsandcontrol.comLE-114889.00571.12115Leeson Electric18.0571.12 @ 1
thumbzoomGalco114889.00-LEES575.261In StockLeeson18.0575.26 @ 1
thumbzoomWalker Industrial114889-00647.271In Stock10Leeson647.27 @ 1
thumbzoomGlobal IndustrialWBB588446698.02In StockLeeson698.0 @ 2
kscdirect.comLEE 114889.00701.311In StockLEESON ELECTRIC CORPORATION701.31 @ 1
thumbzoompumpproducts.com114889.00738.981In StockLeeson738.98 @ 1
thumbzoomRaptor SuppliesAD7WHG814.42524151In StockLEESON814.4252415 @ 1
