Leeson 122166.00

B01MXMTCZD

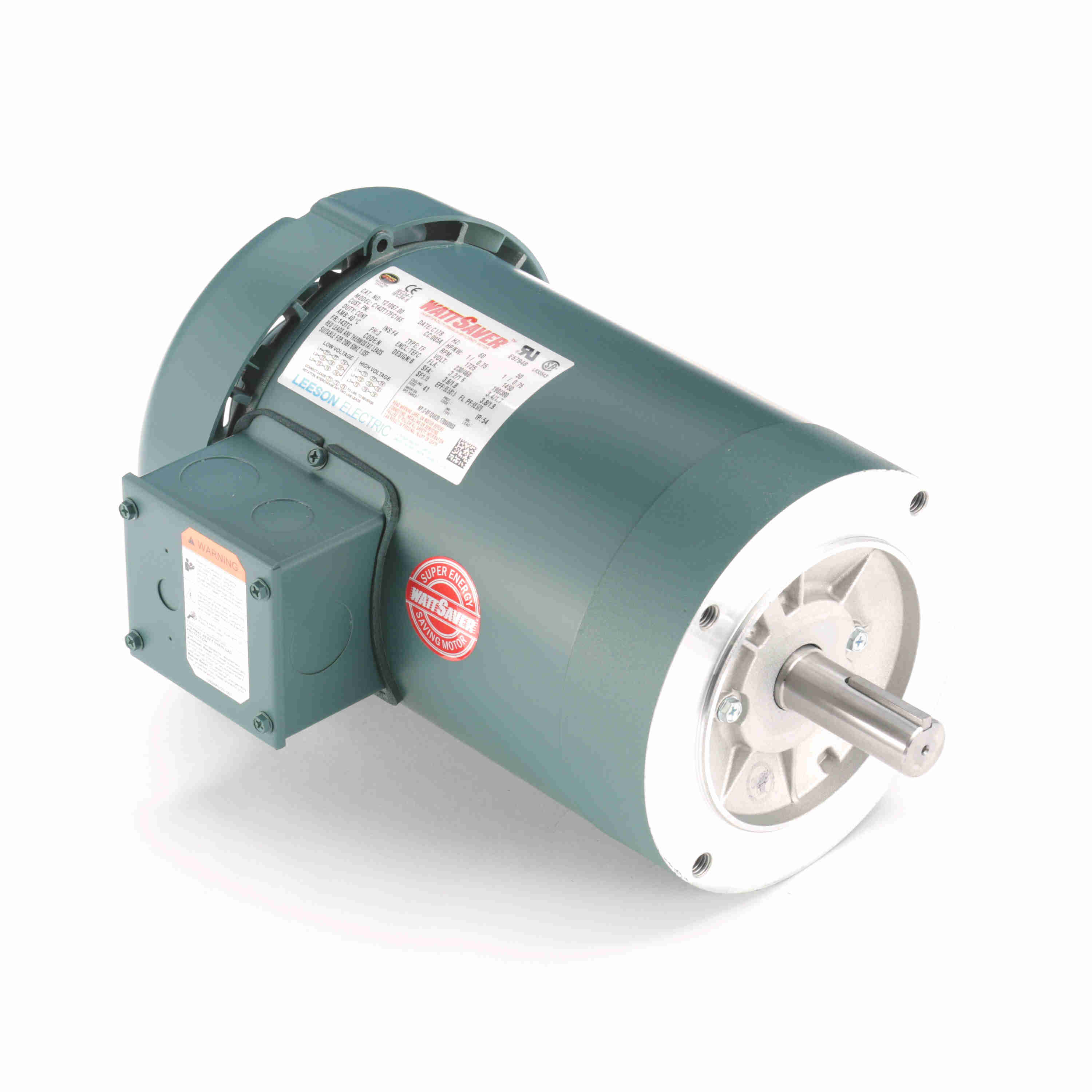

Leeson 122166.00 General Purpose Totally Enclosed C Face Motor, New EISA Compliant Model Number, 1.5 hp, 3600 RPM, 143TC Frame, TEFC, 230/460V, 3 pH, 60 Hz

Leeson 122166.00 General Purpose Totally Enclosed C Face Motor, New EISA Compliant Model Number, 1.5 hp, 3600 RPM, 143TC Frame, TEFC, 230/460V, 3 pH, 60 Hzzoom

Attributes

Key Value
Amperage Rating4.4 to 4/2 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CategoryElectric Motor
CompositionSteel
Country of Origin (subj.United States
Description:122166.00..1.5HP..3490R.
Dimensions12.42 in L
Efficiency %84 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors
Frame143TC
Frame RemarksFOOTLESS
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower1-1/2 hp, 1.5 hp
HP1.50
Insulation ClassClass F
Item ConditionFACTORY NEW
Item Number122166.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number122166.00
MaterialRolled Steel
MFG Part #:122166.00
mountingC-face (NO base)
Mounting TypeC-Face, Round/C-Face/Fo.
NEMA Frame143TC
Net Weight0 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Speeds1
Phase3, 3 ph
RotationReversible
RPM3600, 3,490 RPM
Service Factor1.15
Shaft Size0.88 in Dia x 2.25 in L
Speed3490 rpm
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720043813
Voltage (AC)208 VAC, 230 VAC, 460 V.
Volts208/230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2834546148.361In Stock14Leeson148.36 @ 1
thumbzoomGalco122166.00-LEES184.881In StockLeeson184.88 @ 1
thumbzoomRaptor SuppliesAJ2RNU301.40516251In StockLEESON301.4051625 @ 1
thumbzoomelectricmotorwholesale.com122166408.01In StockLEESON33.0408.0 @ 1
thumbzoomDealers Electric122166.00500.981In StockLeeson35.0500.98 @ 1
AmazonTPB0773R82ZN540.511In Stock3Leeson Electric540.51 @ 1
thumbzoomZoroG2479650818.491In StockLeeson818.49 @ 1
kscdirect.comLEE 122166.00952.461In StockLEESON ELECTRIC CORPORATION952.46 @ 1
