Leeson 122167.00

B01MQKLO9A

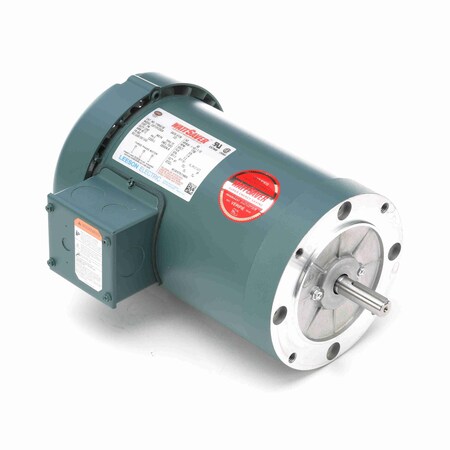

Leeson 122167.00 General Purpose Totally Enclosed C Face Motor, New EISA Compliant Model Number, 2 hp, 3600 RPM, 145TC Frame, TEFC, 230/460V, 3 pH, 60 Hz

Leeson 122167.00 General Purpose Totally Enclosed C Face Motor, New EISA Compliant Model Number, 2 hp, 3600 RPM, 145TC Frame, TEFC, 230/460V, 3 pH, 60 Hzzoom

Attributes

Key Value
Amperage Rating5.2 to 4.8/2.4 A
Amps5.2-4.8/2.4
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BearingsBall
CategoryElectric Motor
CompositionSteel
ConstructionRolled Steel
Description:122167.00..2HP..3490RPM.
Dimensions13.42 in L
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency85.5, 85.5%
Efficiency %85.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight44.00
Family SeriesLeeson Motors
FL Amps5.2-4.8/2.4
FL Efficiency85.5
Frame145TC
Frame MaterialRolled Steel
Frame RemarksFOOTLESS
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower2 hp
HP2
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
Item Number122167.00
KW1.5
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number122167.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:122167.00
Motor Shell Length7.50"
MountingRound, FOOTLESS
mountingC-face (NO base)
Mounting TypeC-Face, Round/C-Face/Fo.
NEMA Frame145TC
Net Weight0 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length13.42"
Part Number122167.00
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM3600, 3400 - 3600, 3,49.
Service Factor1.15
Shaft Diameter0.875, 0.875"
Shaft Length2.25", 2.25
Shaft Size0.88 in Dia x 2.25 in L
Ship Weight41 lbs.
Speed3490 rpm
Speed (RPM)3490
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720043899
Voltage208-230/460, 208V, 230V.
Voltage (AC)208 VAC, 230 VAC, 460 V.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com122167468.01In StockLEESON41.0468.0 @ 1
AmazonTPB0773VT6F7625.041In Stock3Leeson Electric625.04 @ 1
thumbzoomMRO Supply2834547678.331In StockLeeson678.33 @ 1
thumbzoomemotorpro.com122167.00740.551In StockLeeson41.0740.55 @ 1
thumbzoomDealers Electric122167.00847.071In StockLeeson50.0847.07 @ 1
thumbzoomZoroG2480953880.991In StockLeeson880.99 @ 1
thumbzoommotorsandcontrol.comLE-122167.00930.44126Leeson Electric44.0930.44 @ 1
thumbzoomGalco122167.00-LEES937.721In StockLeeson937.72 @ 1
us.rs-online.com73397225947.771In StockLeeson947.77 @ 1
kscdirect.comLEE 122167.00972.381In StockLEESON ELECTRIC CORPORATION972.38 @ 1
cbtcompany.com122167.001030.761In StockLeeson Electric1030.76 @ 1
kirbyrisk.com31882961043.8211Leeson1043.82 @ 1
thumbzoomWalker Industrial122167-001054.51In Stock17Leeson1054.5 @ 1
thumbzoompumpproducts.com122167.001262.181In StockLeeson1262.18 @ 1
