Leeson 132251.00

B00EP2L10W

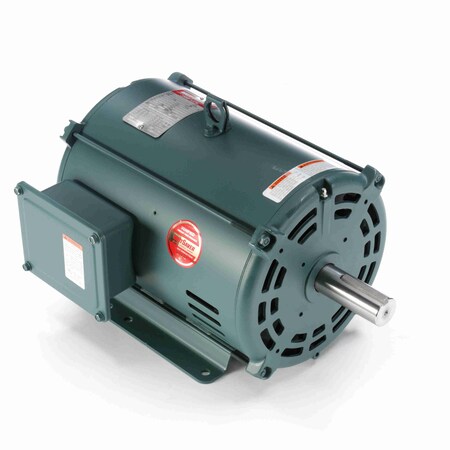

Leeson 132251.00 Special Voltage Motor, 3 Phase, 182T Frame, Rigid Mounting, 1 1/2HP, 1200 RPM, 575V Voltage, 60Hz Fequency

Leeson 132251.00 Special Voltage Motor, 3 Phase, 182T Frame, Rigid Mounting, 1 1/2HP, 1200 RPM, 575V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating2.4 A
Amps2.4
Application TypeCompressor Motors, Fan .
Bearing TypeBall
BearingsBall
CategoryElectric Motor
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.Mexico
Description:..1 1/2HP..1170RPM.182T.
Dimensions14.46 in L x 10.37 in H
Drive End Bearing Size6206
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency87.5, 87.5%
Efficiency %87.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight89.00
Family SeriesLeeson Motors
FL Amps2.4
FL Efficiency87.5
Frame182T
Frame MaterialRolled Steel
Frame Remarks575 VOLT
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1-1/2 hp, 1.5 hp
HP1.5, 1.50, 1-1/2
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
Item Number132251.00
KW1.1
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number132251.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:132251.00
Motor Shell Length9.00"
MountingFoot Mount, Rigid Base
mountingRigid Base
Mounting TypeFoot Mount, C-Face/Rigi.
NEMA Frame182T
Net Weight89 lbs
Nominal Voltage575 VAC
Number of Poles6
Number of Speeds1
Opp. Drive End Bearing .6205
Opp. Drive End Bearing .Ball
Overall Length14.46"
Part Number132251.00
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1100 - 1200, 1200, 1170.
Service Factor1.15
Shaft Diameter1.125, 1.125"
Shaft Length2.75, 2.75"
Shaft Size1.13 in Dia x 2.75 in L
Ship Weight78 lbs.
Speed1170 rpm
Speed (RPM)1170
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720268704
Voltage575V, 575
Voltage (AC)575 VAC
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2526514656.331In StockLeeson656.33 @ 1
thumbzoomapexindustrialautomation.com132251.00681.5814Leeson681.58 @ 1
thumbzoommotorsandcontrol.comLE-132251.00900.261In StockLeeson Electric89.0900.26 @ 1
AmazonTPB0773TFX6W911.121In Stock3Leeson Electric911.12 @ 1
thumbzoomZoroG2479851929.771In Stock10Leeson929.77 @ 1
thumbzoomGalco132251.00-LEES941.821In StockLeeson89.0941.82 @ 1
thumbzoomemotorpro.com132251.00946.461In StockLeeson78.0946.46 @ 1
thumbzoomDealers Electric132251.00994.614Leeson78.0994.6 @ 1
thumbzoomWalker Industrial132251-001020.31In Stock10Leeson1020.3 @ 1
kscdirect.comLEE 132251.001105.491In StockLEESON ELECTRIC CORPORATION1105.49 @ 1
