Leeson 132252.00

B00EP3BTM6

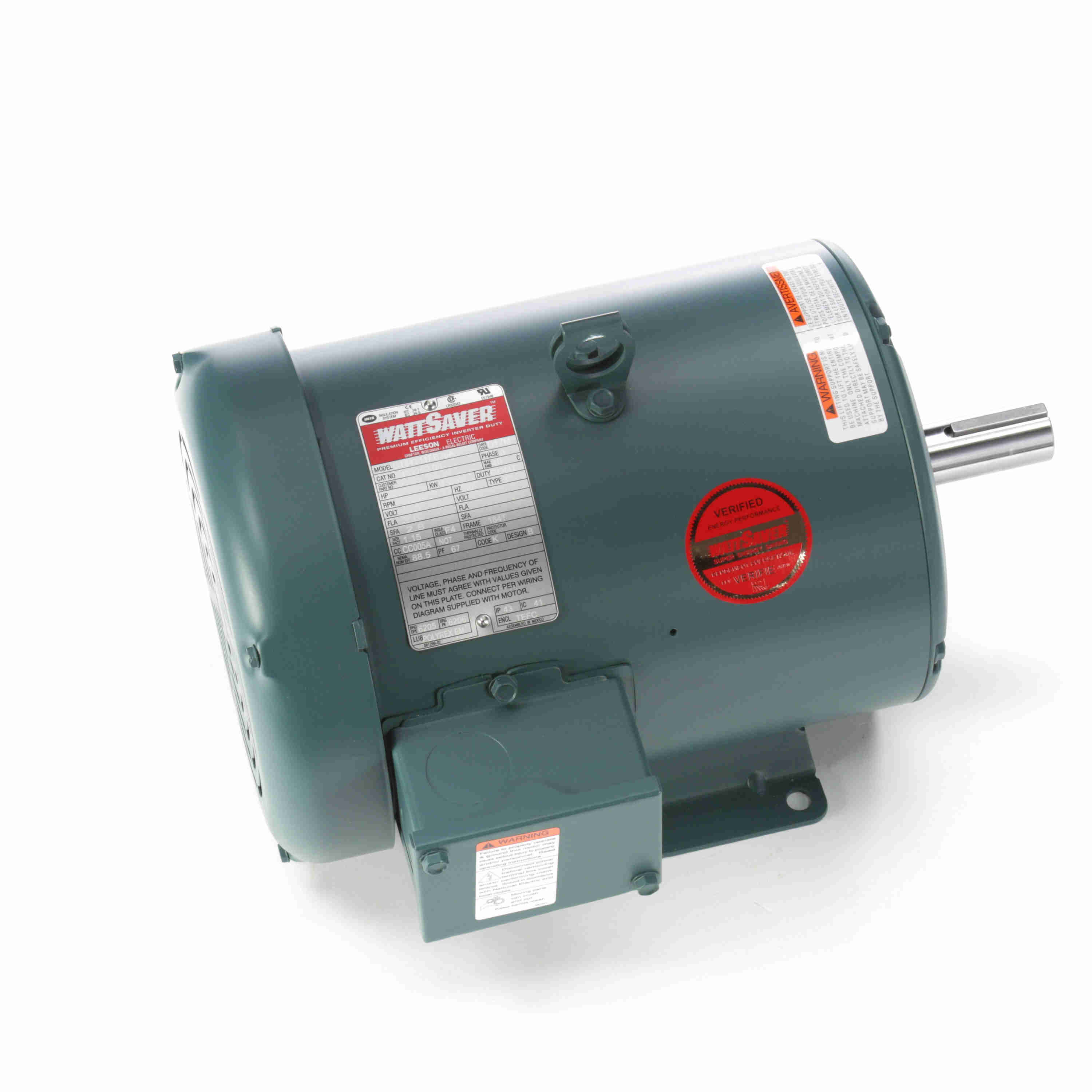

Leeson 132252.00 Special Voltage Motor, 3 Phase, 184T Frame, Rigid Mounting, 2HP, 1200 RPM, 575V Voltage, 60Hz Fequency

Leeson 132252.00 Special Voltage Motor, 3 Phase, 184T Frame, Rigid Mounting, 2HP, 1200 RPM, 575V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating2.6 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupC184T11FB26
CompositionSteel
Description:..2HP..1170RPM.184T.TEF.
Dimensions14.96 in L x 10.37 in H
Efficiency %88.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors, Special .
Frame184T
Frame Remarks575 VOLT
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower2 hp
HP2
Insulation ClassClass F
Item ConditionFACTORY NEW
Item Number132252.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number132252.00
MaterialRolled Steel
MFG Part #:132252.00
Model NumberC184T11FB26
mountingRigid Base
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA Frame184T
Net Weight92 lbs
Nominal Voltage575 VAC
Number of Poles6
Number of Speeds1
Overall Length15.96 "
Phase3, 3 ph
Product SeriesSpecial Voltage
RotationReversible
RPM1,200 RPM, 1200
Service Factor1.15
Shaft DiameterUL;CSA
Shaft Size1.13 in Dia x 2.75 in L
Speed1170 rpm
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720271285
Volts575
