Leeson 140681.00

B00EP32MLI

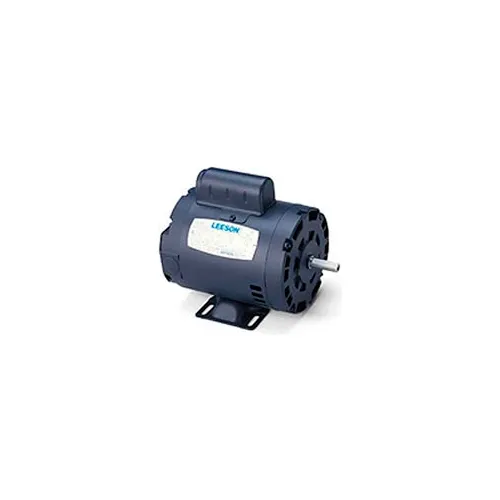

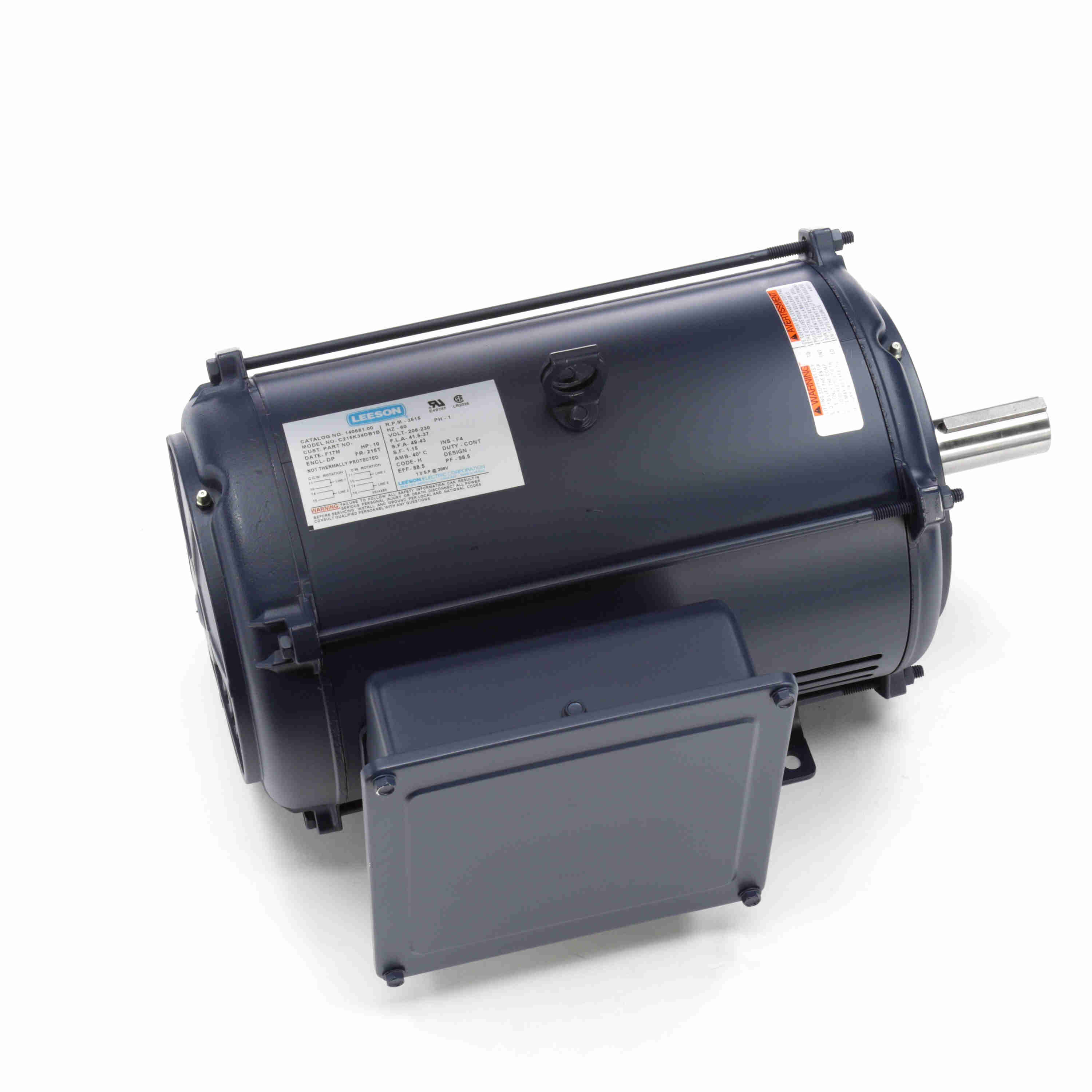

Leeson 140681.00 General Purpose ODP Motor, 1 Phase, 215T Frame, Rigid Mounting, 10HP, 3600 RPM, 208-230V Voltage, 60Hz Fequency

Leeson 140681.00 General Purpose ODP Motor, 1 Phase, 215T Frame, Rigid Mounting, 10HP, 3600 RPM, 208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amps41.5-37.0
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupC215K34DB1
CompositionSteel
ConstructionRolled Steel
Description:10HP..3515RPM.215.DP./V.
Drive End Bearing Size307
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency88.5, 88.5%
EnclosureODP, Open, Drip Proof
Enclosure MaterialRolled Steel
Enclosure TypeDP (Dripproof)
Estimated Weight135.00
Family SeriesLeeson Motors, General .
FL Amps41.5-37
FL Efficiency88.5
Frame215T
Frame MaterialRolled Steel
Frequency60
Full Load Current37 A
Gross Weight0 lbs
Hertz60
Horsepower10 hp
HP10
Hz60
Insulation ClassF
Item ConditionFACTORY NEW
Item Number140681.00
KW7.5
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number140681.00
Maximum Ambient Tempera.40? C
MFG Part #:140681.00
Model NumberC215K34DB1
Motor Shell Length12.40"
Motor TypeCapacitor Start
MountingFoot Mount, Rigid Base
mountingRigid Base
Mounting TypeFoot Mount, Rigid
NEMA Frame215T
Net Weight135 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .206
Opp. Drive End Bearing .Ball
Overall Length19.29", 18.05 "
Overload ProtectionNone
Part Number140681.00
Phase1
Product SeriesGeneral Purpose
Product TypeCapacitor Start/Capacit.
RotationReversible
RPM3600, 3400 - 3600, 3515.
Service Factor1.15
Shaft Diameter1.375", 1.375, UL;CSA
Shaft Length3.38", 3.38
Ship Weight126 lbs.
Speed (RPM)3515
Supplier:LEESON ELECTRIC CORPORA.
TypeGeneral Purpose
UPC:691720256978
Voltage208-230, 208V, 230V
Volts208-230, 208/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com1406811190.01In StockLEESON1190.0 @ 1
thumbzoomMRO Supply25265611402.51In StockLeeson1402.5 @ 1
AmazonTPB0773TDSGM1531.191In Stock3Leeson Electric1531.19 @ 1
thumbzoomcshincorporated.com140681.001617.791In StockLeeson126.01617.79 @ 1
thumbzoomemotorpro.com140681.001897.591In StockLeeson126.01897.59 @ 1
thumbzoomGlobal IndustrialWBB2216851932.01In Stock17Leeson1932.0 @ 1
thumbzoommotorsandcontrol.comLE-140681.002090.016Leeson Electric135.02090.0 @ 1
thumbzoomDealers Electric140681.002102.731In StockLeeson126.02102.73 @ 1
thumbzoomGalco140681.00-LEES2121.191In StockLeeson135.02121.19 @ 1
us.rs-online.com733971792128.931In StockLeeson2128.93 @ 1
thumbzoomWalker Industrial140681-002368.671In Stock10Leeson2368.67 @ 1
kscdirect.comLEE 140681.002566.431In StockLEESON ELECTRIC CORPORATION2566.43 @ 1
thumbzoomRaptor SuppliesAJ2RZV2766.21222151In StockLEESON2766.2122215 @ 1
thumbzoompumpproducts.com140681.002835.161In StockLeeson2835.16 @ 1
