Leeson 140684.00

B00EP3O3NI

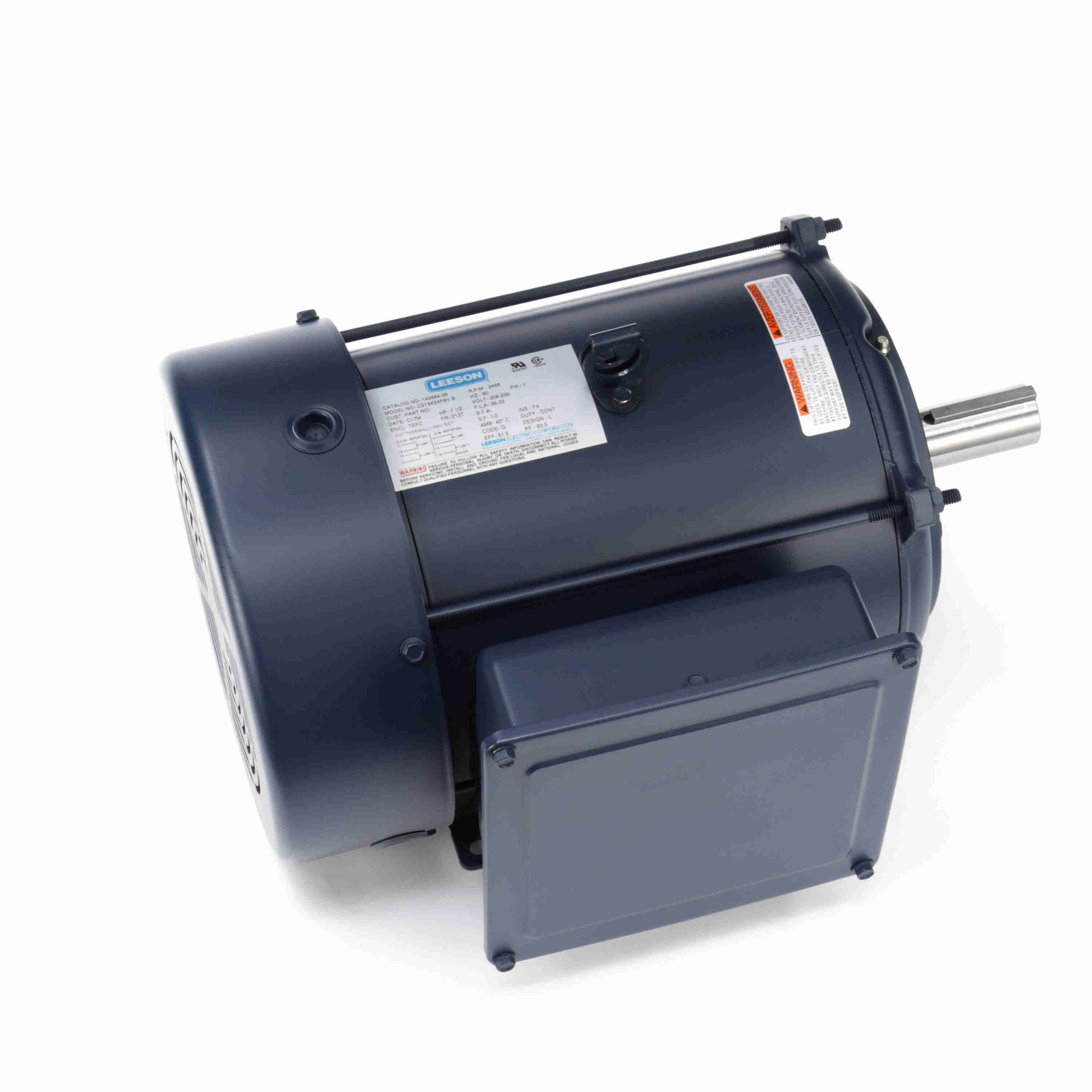

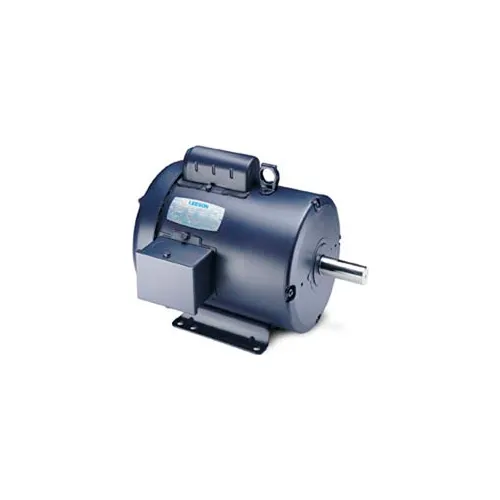

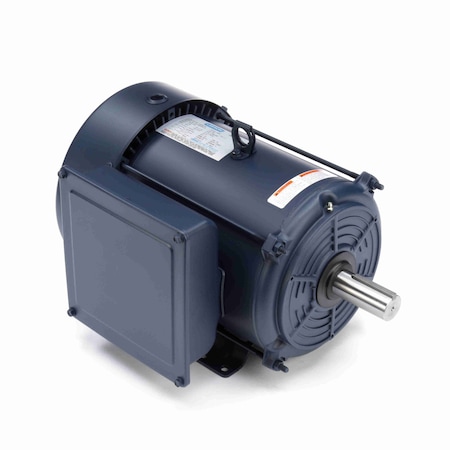

Leeson 140684.00 General Purpose TEFC Motor, 1 Phase, 213T Frame, Rigid Mounting, 7 1/2HP, 3600 RPM, 208-230V Voltage, 60Hz Fequency

Leeson 140684.00 General Purpose TEFC Motor, 1 Phase, 213T Frame, Rigid Mounting, 7 1/2HP, 3600 RPM, 208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating36 to 32 A
Amps36.0-32.0
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupC213K34FB1
CompositionSteel
ConstructionRolled Steel
Description:..7 1/2HP..3450RPM.213..
Dimensions18.34 in L x 13.09 in W.
Drive End Bearing Size307
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency81.5%, 81.5
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight120.00
Family SeriesLeeson Motors, General .
FL Amps36-32
FL Efficiency81.5
Frame213T
Frame MaterialRolled Steel
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower7-1/2 hp, 7.5 hp
HP7.50, 7-1/2, 7.5
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
Item Number140684.00
KW5.6
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number140684.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:140684.00
Model NumberC213K34FB1
Motor Shell Length9.65"
MountingFoot Mount, Rigid Base
mountingRigid Base
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA Frame215T
Net Weight120 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .206
Opp. Drive End Bearing .Ball
Overall Length18.34 ", 18.34"
Overload ProtectionNone
Package Quantity1
Part Number140684.00
Phase1, 1 ph
Product SeriesGeneral Purpose
Product TypeCapacitor Start/Capacit.
RotationSelective CCW, Reversib.
RPM3465, 3600, 3400 - 3600.
Service Factor1, 1.0
Shaft Diameter1.375", 1.375, UL;CSA
Shaft Length3.38", 3.38
Shaft Size1.38 in Dia x 3.38 in L
Ship Weight113 lbs.
Special FeaturesCapacitor Start Motors
Speed (RPM)3465
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720256985
Voltage208-230, 208V, 230V
Volts208-230, 208/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com1406841005.01In StockLEESON1005.0 @ 1
thumbzoomMRO Supply25265621260.111In StockLeeson1260.11 @ 1
AmazonTPB0773W2P321275.841In Stock3Leeson Electric1275.84 @ 1
thumbzoomapexindustrialautomation.com140684.001308.5812Leeson1308.58 @ 1
thumbzoomemotorpro.com140684.001569.311In StockLeeson113.01569.31 @ 1
thumbzoommotorsandcontrol.comLE-140684.001728.44117Leeson Electric120.01728.44 @ 1
thumbzoomZoroG24909721749.991In StockLeeson1749.99 @ 1
us.rs-online.com733970461760.631In StockLeeson1760.63 @ 1
thumbzoomDealers Electric140684.001773.5614Leeson113.01773.56 @ 1
thumbzoomGalco140684.00-LEES1808.221In StockLeeson120.01808.22 @ 1
thumbzoomWalker Industrial140684-001958.91In Stock10Leeson1958.9 @ 1
thumbzoomGlobal IndustrialWBB2216862099.01In StockLeeson2099.0 @ 1
kscdirect.comLEE 140684.002122.451In StockLEESON ELECTRIC CORPORATION2122.45 @ 1
thumbzoompumpproducts.com140684.002344.691In StockLeeson2344.69 @ 1
thumbzoomRaptor SuppliesAJ2RZW2485.4780341In StockLEESON2485.478034 @ 1
