Leeson 140747.00

B00EP3BV6K

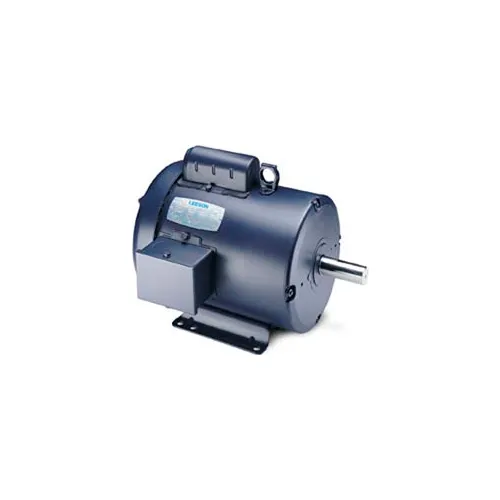

Leeson 140747.00 General Purpose TEFC Motor, 1 Phase, 215T Frame, Rigid Mounting, 2HP, 1200 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 140747.00 General Purpose TEFC Motor, 1 Phase, 215T Frame, Rigid Mounting, 2HP, 1200 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating22.4/11.6 to 11.2 A
Amps22.4/11.6-11.2
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupC215K11FB3
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.Mexico
Description:2HP..1140RPM.215.TEFC.1.
Dimensions18.71 in L x 11.77 in H
Drive End Bearing Size6207
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency77, 77.0%
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight118.00
Family SeriesLeeson Motors, General .
FL Amps22.4/11.6-11.2
FL Efficiency77
Frame215T
Frame MaterialRolled Steel
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower2 hp
HP2
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
Item Number140747.00
KW1.5
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number140747.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:140747.00
Model NumberC215K11FB3
Motor Shell Length12.00"
MountingFoot Mount, Rigid Base
mountingRigid Base
Mounting TypeFoot Mount, Rigid, Rigi.
NEMA Frame215T
Net Weight118 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles6
Number of Speeds1
Opp. Drive End Bearing .6206
Opp. Drive End Bearing .Ball
Overall Length18.71", 18.71 "
Overload ProtectionNone
Part Number140747.00
Phase1, 1 ph
Product SeriesGeneral Purpose
Product TypeCapacitor Start/Capacit.
RotationSelective CCW, Reversib.
RPM1,200 RPM, 1140, 1100 -.
Service Factor1.15
Shaft Diameter1.375", 1.375, UL;CSA
Shaft Length3.38", 3.38
Shaft Size1.38 in Dia x 3.38 in L
Ship Weight118 lbs.
Special FeaturesCapacitor Start Motors
Speed (RPM)1140
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720811016
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com1407471438.01In StockLEESON1438.0 @ 1
thumbzoomMRO Supply25265691726.881In StockLeeson1726.88 @ 1
AmazonTPB0773VC8YG1835.031In Stock3Leeson Electric1835.03 @ 1
thumbzoomDealers Electric140747.002542.791In StockLeeson118.02542.79 @ 1
thumbzoommotorsandcontrol.comLE-140747.002573.381In StockLeeson Electric118.02573.38 @ 1
thumbzoomZoroG24955592597.691In Stock26Leeson2597.69 @ 1
us.rs-online.com733973502621.311In StockLeeson2621.31 @ 1
thumbzoomGalco140747.00-LEES2692.151In StockLeeson118.02692.15 @ 1
thumbzoomemotorpro.com140747.002705.441In StockLeeson118.02705.44 @ 1
thumbzoomWalker Industrial140747-002916.51In Stock10Leeson2916.5 @ 1
thumbzoomGlobal IndustrialWBB2219093119.01In Stock38Leeson3119.0 @ 1
kscdirect.comLEE 140747.003160.011In StockLEESON ELECTRIC CORPORATION3160.01 @ 1
thumbzoomRaptor SuppliesAJ2TAD3406.1520871In StockLEESON3406.152087 @ 1
thumbzoompumpproducts.com140747.003490.891In StockLeeson3490.89 @ 1
