Leeson Electric 141111.00

B0773V1589

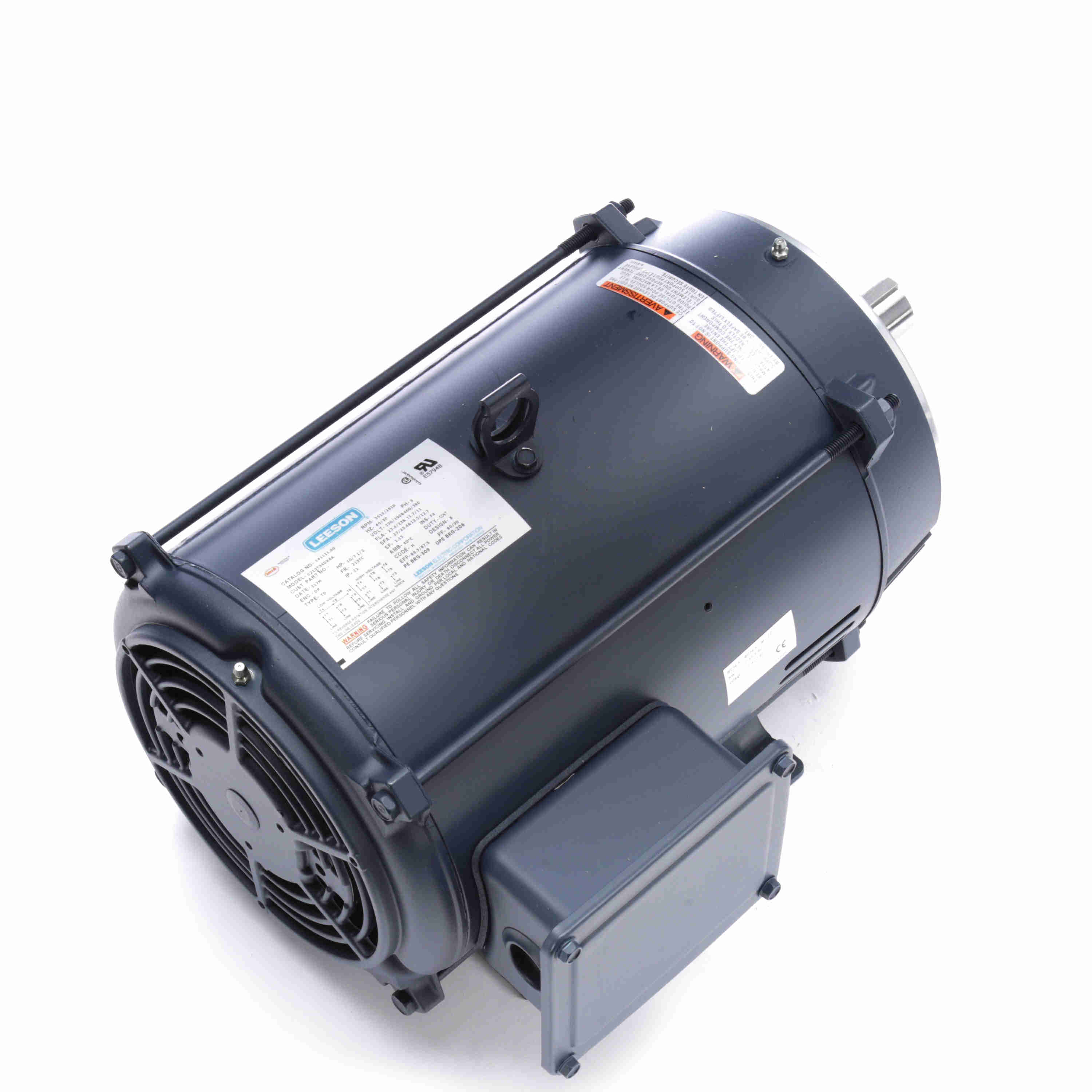

Leeson Electric, 141111.00, 10HP, 3515RPM, 3PH, 208V;230V;460V, 213TC Frame, C-Face Flange, Foot Mount, Open, General Purpose Motor

Leeson Electric, 141111.00, 10HP, 3515RPM, 3PH, 208V;230V;460V, 213TC Frame, C-Face Flange, Foot Mount, Open, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating23.4/11.7 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
Class/GroupC213T34DK6
CompositionSteel
Country of Origin (subj.Mexico
CT Speed Range10:1
Description:OBSOLETE REPLACED BY 21.
Dimensions18.03 in L x 12.25 in W.
Efficiency %89.5 %
EnclosureDrip Proof
Enclosure TypeDP
Family SeriesLeeson Motors, Three Ph.
Frame213TC
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower10 hp
Insulation ClassClass F
Item Number141111.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number141111.00
MaterialRolled Steel
MFG Part #:141111.00
Model NumberC213T34DK6
Mounting TypeC-Face/Rigid Base, C-Fa.
NEMA Frame213TC
Net Weight160 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles2
Number of Speeds1
Overall Length17.3 "
Phase3, 3 ph
Product SeriesThree Phase C Face
RotationReversible
RPM3,600 RPM
Service Factor1.15
Shaft DiameterUL;CSA
Shaft Size1.38 in Dia x 3.38 in L
Speed3515 rpm
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720212042

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com141111674.01In StockLEESON674.0 @ 1
thumbzoomZoroG2493809936.711In Stock10Leeson936.71 @ 1
thumbzoomGalco141111.00-LEES1019.491In StockLeeson160.01019.49 @ 1
kscdirect.comLEE 141111.001148.721In StockLEESON ELECTRIC CORPORATION1148.72 @ 1
thumbzoomWalker Industrial141111-001190.031In Stock17Leeson1190.03 @ 1
thumbzoomRaptor SuppliesAJ2TBH1680.0921541In StockLEESON1680.092154 @ 1
