Leeson Electric 170116.60

B0773TMZB3

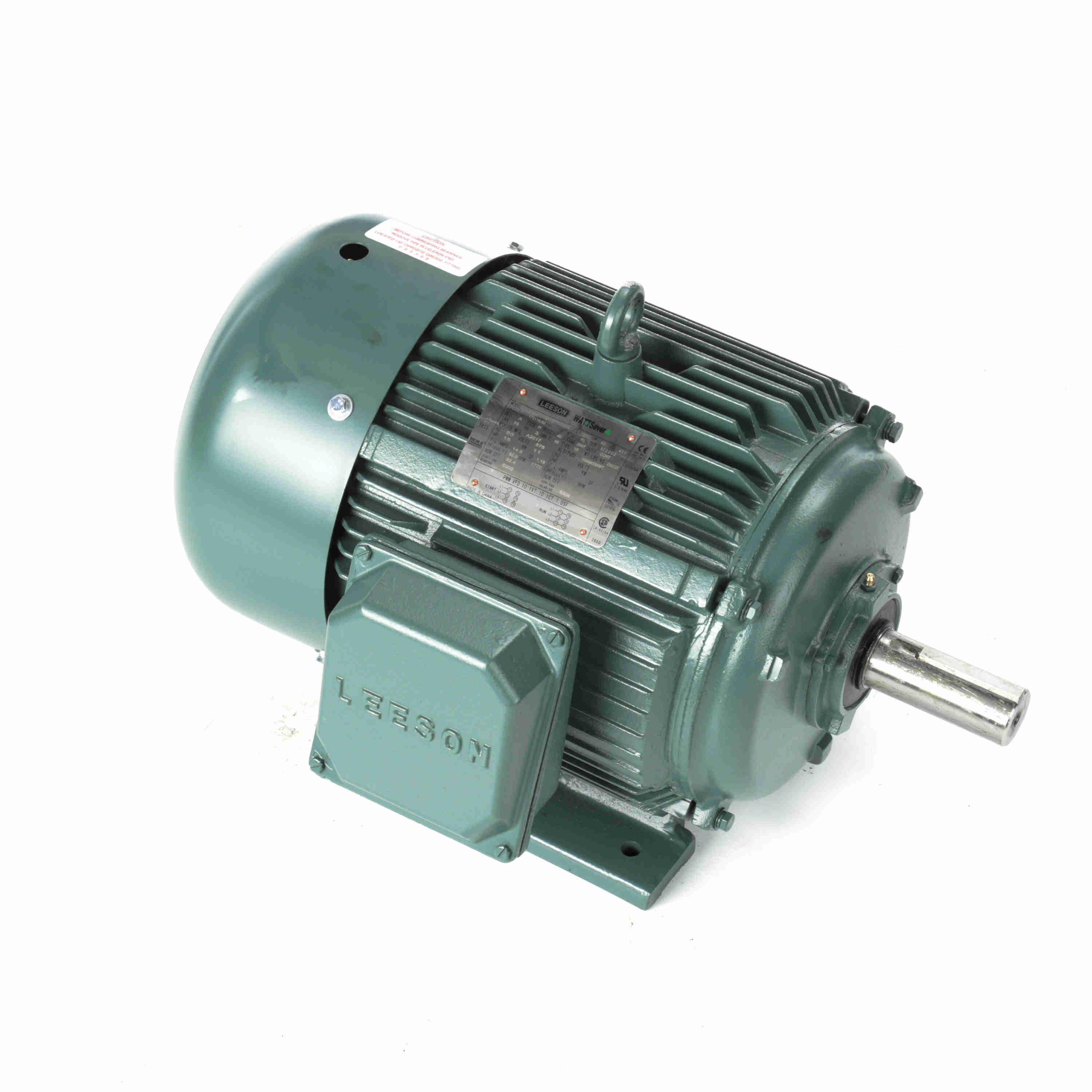

Leeson Electric, 170116.60, 15HP, 1770RPM, 3PH, 575V, 254T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, 170116.60, 15HP, 1770RPM, 3PH, 575V, 254T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating14.5 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupC254T17FB11
CompositionCast Iron
ConstructionCast Iron
Country of Origin (subj.China
Description:..15HP..1770RPM.254T.TE.
Dimensions23.19 in L x 14.87 in H
Drive End Flange TypeStandard
Efficiency %92.4 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight280.00
Family SeriesLeeson Motors, Special .
FL Amps14.5
FL Efficiency92.4
Frame254T
Frame Remarks575 VOLT
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower15 hp
HP15
Hz60
Insulation ClassClass F
Item ConditionFACTORY NEW
Item Number170116.60
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number170116.60
MaterialCast Iron
MFG Part #:170116.60
Model NumberC254T17FB11
MountingFoot Mount
mountingRigid Base
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA Frame254T
Net Weight280 lbs
Nominal Voltage575 VAC
Number of Poles4
Number of Speeds1
Overall Length23.19 "
Part Number170116.60
Phase3, 3 ph
Product SeriesSpecial Voltage
Product TypeGeneral Purpose
RotationReversible
RPM1,800 RPM, 1700 - 1800,.
Service Factor1.15, 1.25
Shaft DiameterUL;CSA
Shaft Size1.63 in Dia x 4 in L
Speed1770 rpm
Speed (RPM)1770
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720245118
Voltage575V, 575
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply25266551940.891In StockLeeson1940.89 @ 1
AmazonTPB0773TMZB32054.511In Stock3Leeson Electric2054.51 @ 1
thumbzoommotorsandcontrol.comLE-170116.602662.241In StockLeeson Electric280.02662.24 @ 1
thumbzoomDealers Electric170116.602673.681In StockLeeson290.02673.68 @ 1
thumbzoomZoroG24935802762.961In Stock10Leeson2762.96 @ 1
thumbzoomGalco170116.60-LEES2785.111In StockLeeson280.02785.11 @ 1
thumbzoomWalker Industrial170116-603017.21In Stock10Leeson3017.2 @ 1
kscdirect.comLEE 170116.603269.111In StockLEESON ELECTRIC CORPORATION3269.11 @ 1
thumbzoomRaptor SuppliesAJ2TEM3827.96288551In StockLEESON3827.9628855 @ 1
